KM021 MULTIMETRO DIGITALE AUTORANGING ZETEK Dinamitek 1

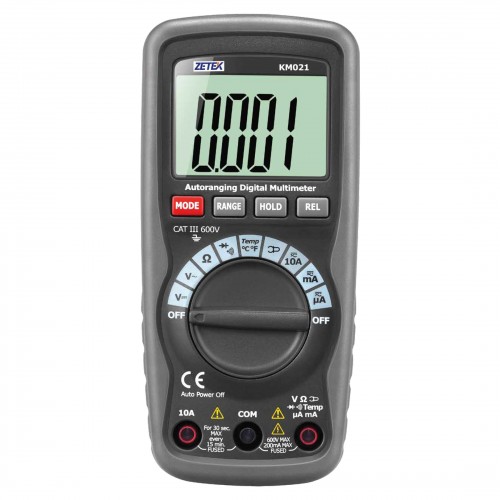

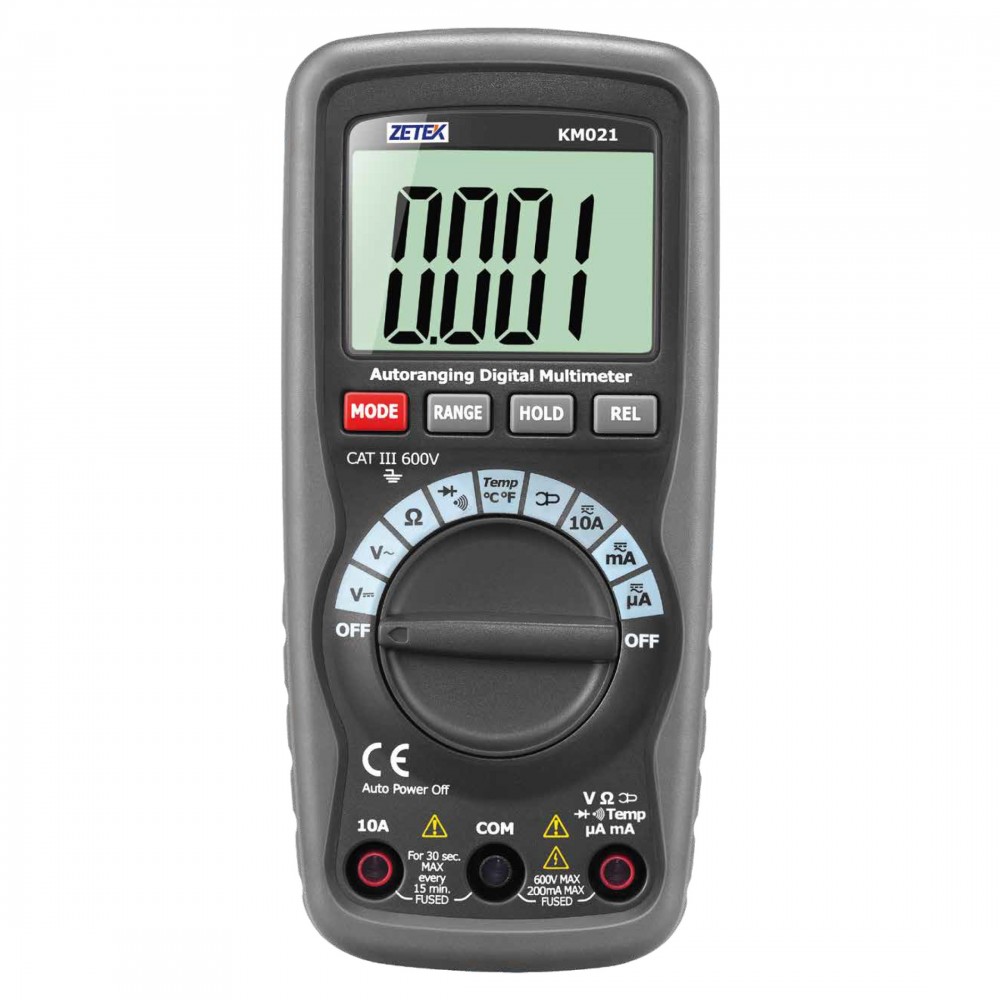

KM021 ZETEK AUTORANGING DIGITAL MULTIMETER

ZETEK KM021 AUTORANGING DIGITAL MULTIMETER

Shipping cost: €5.00 for
42,71 €
Tax included

35,01 € Tax excluded

Quantity
Available product, order it now.

KM021

AUTORANGING MULTIMETER

Performs the following measurements:

Voltage (AC/DC) up to 250V

Current (AC/DC) up to 10A

Protected by internal fuse.

Resistence

Diode Test

Continuity test with acoustic indication

Temperature (-50°C/+1000°C) with thermocouple

Autoranging, automatic selection of the measurement scale

Data Hold, locks the value on the display

Auto power off after 15 minutes

TECHNICAL CHARACTERISTICS

DC voltage 200mV, 2V, 20V, 200V, 600V, 1000V

AC voltage 200mV, 2V, 20V, 200V, 600V, 1000V

DC Current 200µA, 2mA, 20mA, 200mA,10A

AC Current 200µA, 2mA, 20mA, 200mA,10A

Resistor 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ

Continuity Rel;100Ω

Diode Test Yes

Temperature -50° / +1000 °C

Value Lock Yes

Auto power off 15 min

Power supply 1x9V LAMP not supplied

Lamps and automotive tools with high technological content, Zeca's innovation is called Zetek
