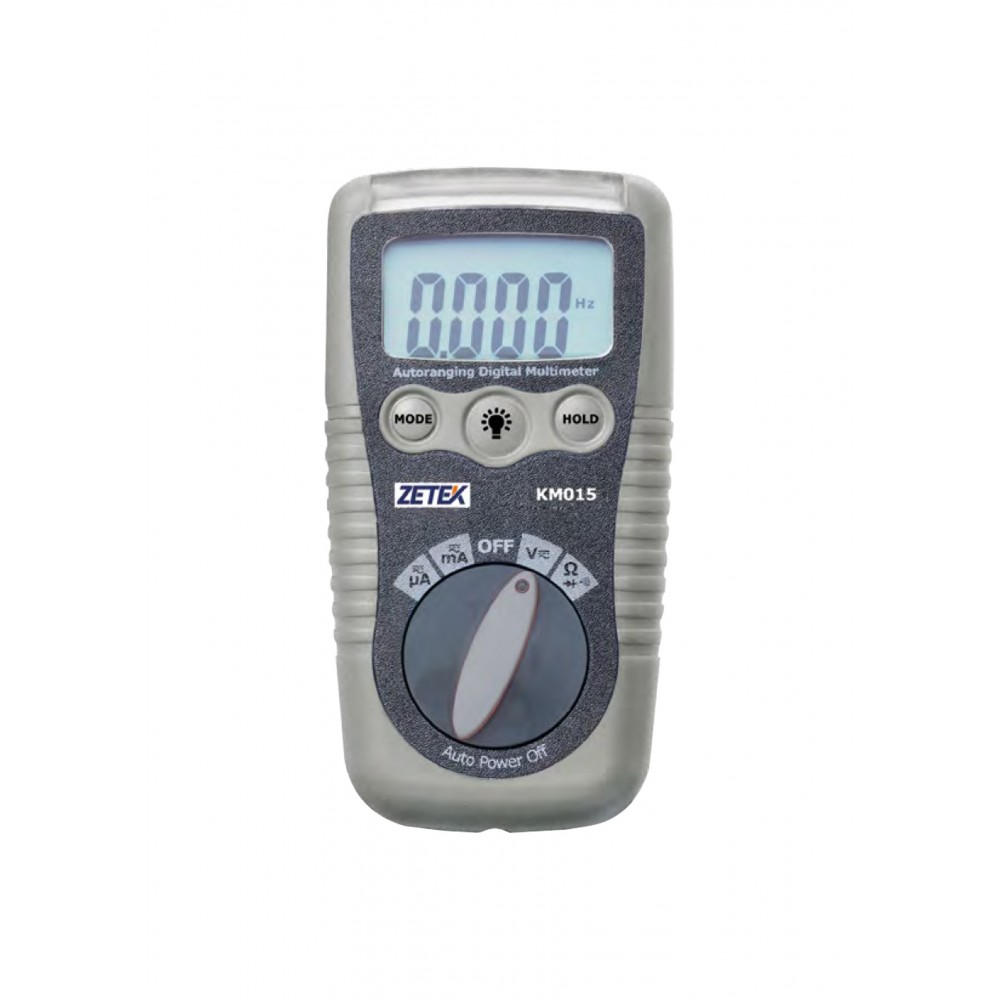

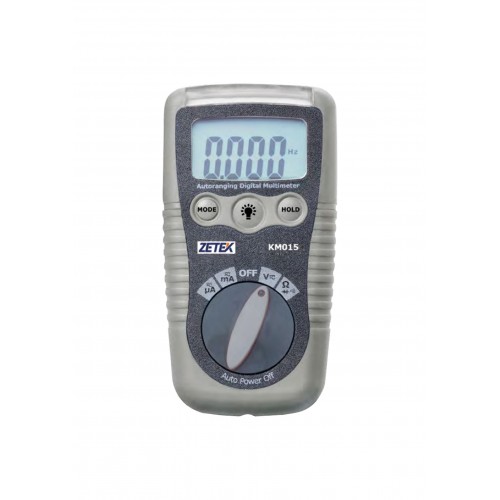

XKM015 ZETEK AUTORANGING POCKET MULTIMETER
ZETEK KM015 AUTORANGING POCKET MULTIMETER
KM015
AUTORANGING POCKET MULTIMETER
TECHNICAL DATA
DC voltage
200mV, 2V, 20V, 200V, 600V
AC voltage
2V, 20V, 200V, 600V
DC current
200μA, 2mA, 20mA,200mA
AC Current
200μA, 2mA, 20mA,200mA
Resistence
200Ω, 2kΩ, 20kΩ,200kΩ, 2MΩ, 20MΩ
Continuity R elt; 150 Ω
Diode test
Diode test
NCV
Value lock
Data Hold
Auto power off
Auto power off 15 min
Operating class
Cat. IV 600V
Diet
2 x AAA batteries
NON CONTACT VOLTAGE INDICATOR FEATURES
CHARACTERISTICS
Spot light to illuminate the work area
Autoranging, automatic selection of the measurement scale
Protected by internal fuse
Data Hold, locks the value on the display
Auto power off after 15 minutes
Performs the following measurements:
Voltage (AC/DC) up to 600V
Current (AC/DC) up to 200mA
Resistence
Diode Test
Continuity test with acoustic indication
