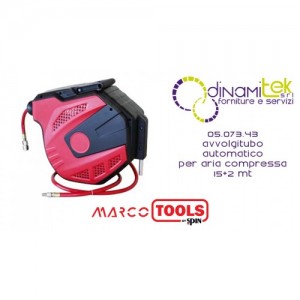

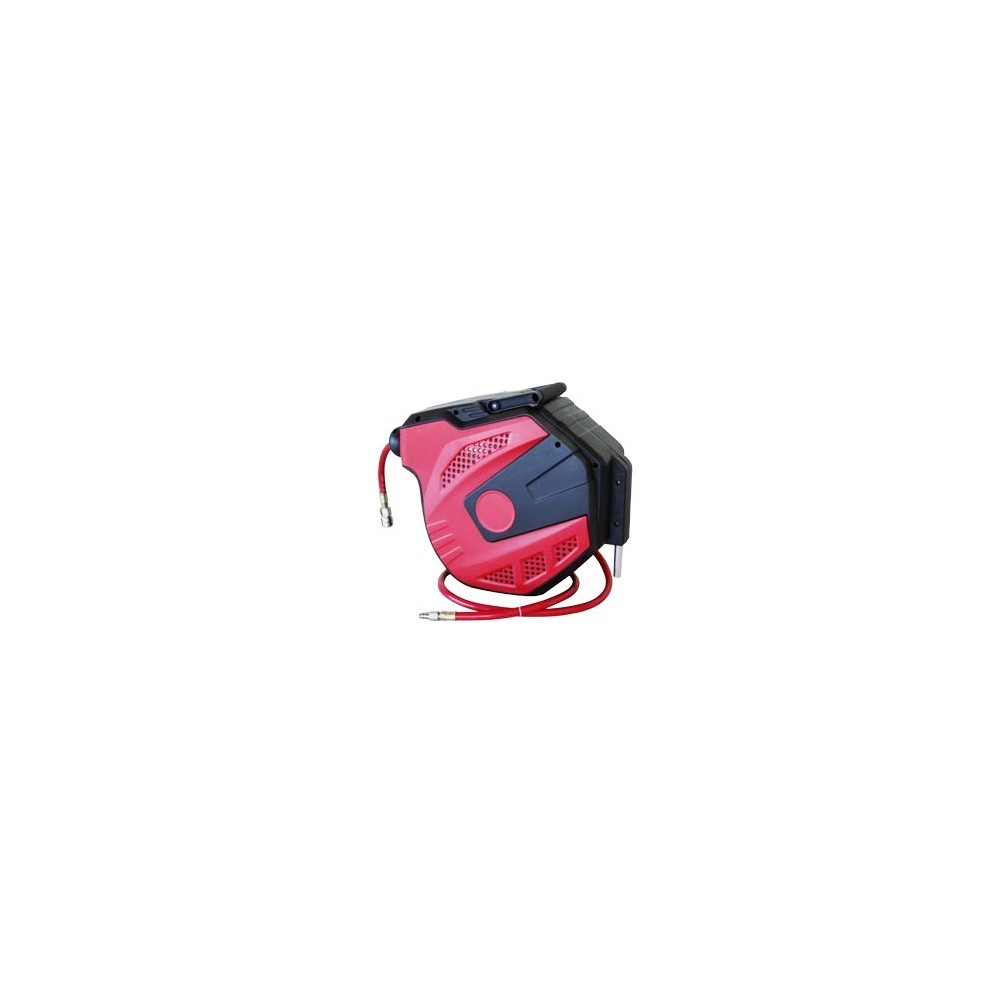

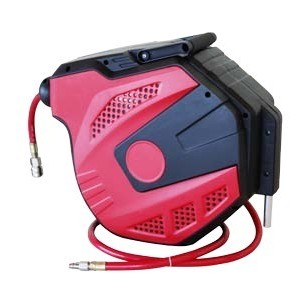

05.073.43 AUTOMATIC HOSE REEL FOR COMPRESSED AIR 15 PLUS 2 M MARCO TOOLS SPIN

Extended range and superior performance for pneumatic service. The Spin automatic hose reel (Code 05.073.43) is the enhanced version for workshops requiring greater coverage and optimal air flow. Equipped with a 15-meter (+2 meters external) PVC hose with an increased diameter of 9.5/15.5 mm , this tool guarantees efficiency up to 10 bar of pressure, integrating advanced safety systems for a tidy and professional work environment.

Shipping cost: €25.00 for
106,14 €
Tax included

87,00 € Tax excluded

Quantity
Available product, order it now.

Evolution and Safety in Compressed Air Management

Model Spin Cod. 05.073.43 is designed for professionals who don't accept compromises between hose length and flow stability. Compared to standard models, this unit offers a larger internal hose diameter (9.5 mm), ideal for powering pneumatic tools that require a constant air volume and no pressure drops, even at full extension.

Excellent Technical Features

  • Controlled Rewind with Slide Guide: The unit features a special internal guide that evenly distributes the hose during retraction. This prevents tangles, overlaps, and mechanical blockages, dramatically extending the life of the PVC hose.
  • Emergency Self-Locking System: The internal mechanism allows the hose to be safely locked at the desired length, while ensuring immediate protection in the event of accidental release during maintenance operations.
  • High-Flow Technical Hose: The 9.5/15.5 mm diameter hose is calibrated to withstand intensive work cycles at 10 bar, maintaining optimal flexibility even in workshop environments subject to temperature variations.
  • Sturdy Structure and Wall Mounting: Designed for fixed installation, it comes complete with a wall mounting bracket, allowing rotation that follows the operator's movements in the workspace.
  • Professional Standard Connections: 1/4” BSPT connections ensure universal compatibility with quick couplings and standard pneumatic equipment (impellers, guns, inflators).

Areas of Application

  • Heavy Machine Shops: Ideal for workstations that operate on large vehicles or that need to move around the lift.
  • Assembly Lines: Orderly management of air points along the workbenches.
  • Tire Shops and Rapid Service: Reliable power supply for high-torque impact wrenches.

Technical Specifications

  • Product Code: 05.073.43
  • Brand: Spin (Marcotools line)
  • Tube Length: 15 meters + 2 meters
  • Tube Material: High strength PVC
  • Tube diameter (Int/Ext): ø 9.5 / 15.5 mm
  • Connections: 1/4” BSPT
  • Working Pressure: 10 bar
  • Dimensions: 450 x 235 x 424 mm
  • Weight: 8.7 kg
Professional equipment for car and motorcycle repair and maintenance

MARCO TOOLS: PROFESSIONAL TOOLS AND EQUIPMENT FOR WORKSHOPS AND MAINTENANCE

Marco Tools is a brand specialising in hand tools, workshop equipment and professional maintenance solutions, designed for mechanics, maintenance technicians, body shops, craftspeople and industrial departments.

The range includes spanners, sockets, ratchets, pliers, screwdrivers, assorted sets, starters, lifting equipment, mechanical tools, tool trolleys and solutions dedicated to day-to-day maintenance. Each product stands out for its durable materials, ergonomic design, dimensional accuracy and competitive value for money.

The new Marco Tools range for electric cars includes insulated tools, equipment for working on high-voltage systems, EV diagnostic tools and specific solutions for the maintenance of electric and hybrid vehicles. Products designed to ensure safety, precision and compliance with the technical standards of modern electric powertrains.

Mechanics choose Marco Tools for the robustness, versatility and value for money of its equipment for cars, motorbikes and lorries.
