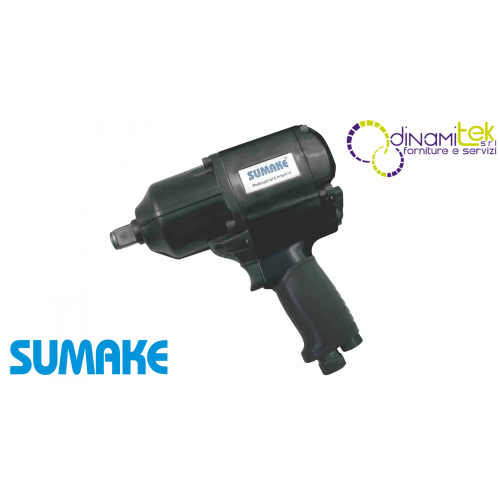

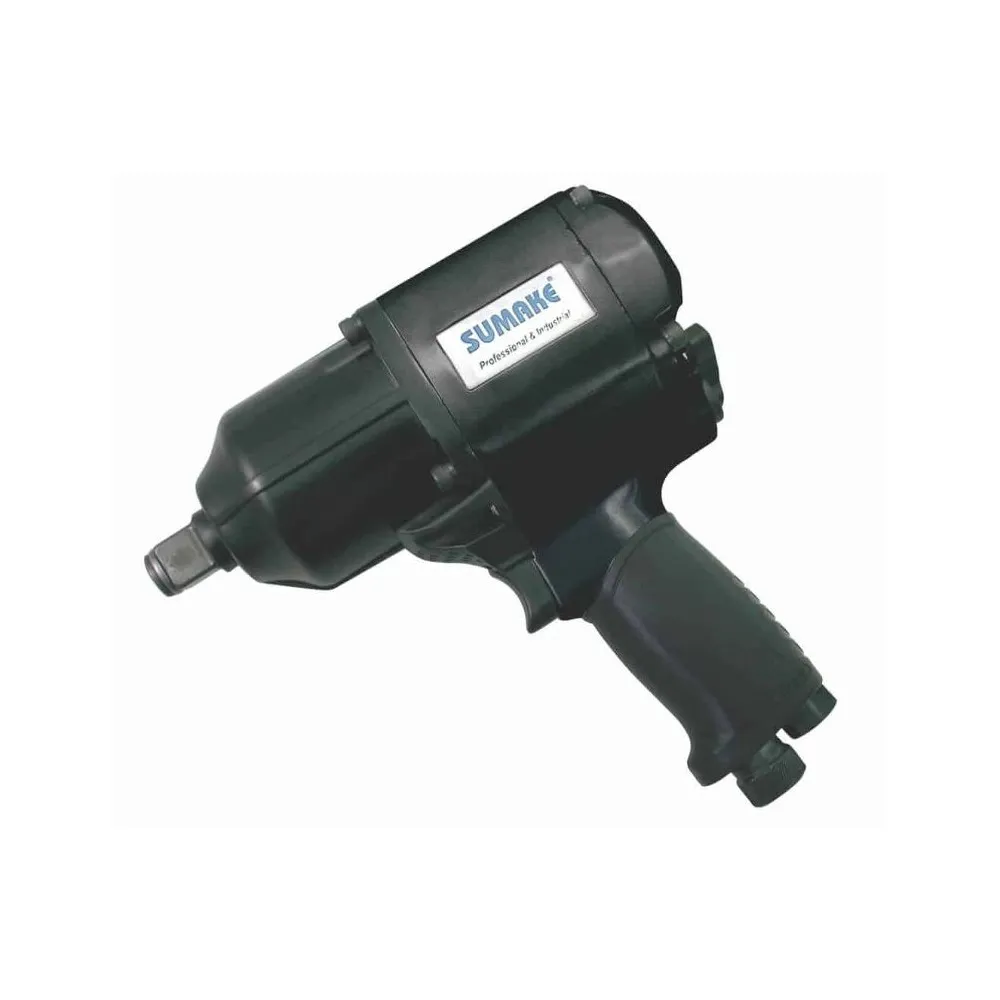

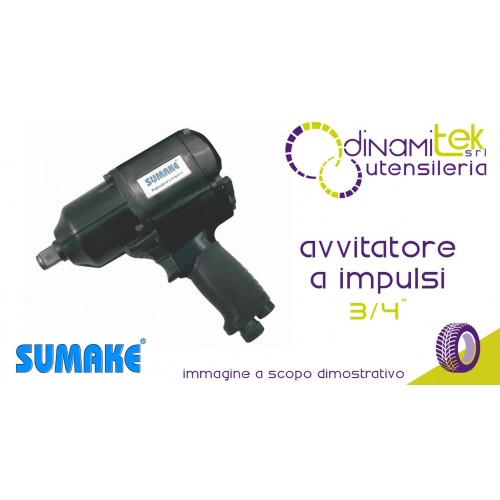

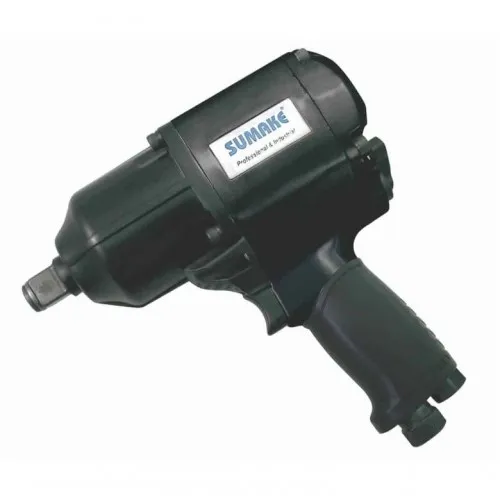

ST-5578H TWIN HAMMER 3/4" 1356 NM 5000 RPM IMPACT WRENCH SUMAKE
Tackle heavy-duty tightening and loosening jobs with the Sumake ST-5578H 3/4" pneumatic impact wrench.
The Sumake ST-5578H 3/4" pistol grip pneumatic impact wrench is the high-performance tool designed for mechanical maintenance, pneumatic service and the most demanding industrial applications. Featuring a robust dual mass percussion mechanism ( Twin Hammer ) and a maximum torque of 1,356 Nm , it ensures maximum unscrewing force combined with high reliability over time.
- Power and Performance: Delivers up to 1,356 Nm of maximum torque to quickly loosen heavily encrusted bolts and nuts up to M26 size.
- Twin Hammer Mechanism: double hammer striking mass group that ensures balanced and consistent blows with every use.
- Versatile Adjustment: Rear reversibility with 3 selectable power levels in screwing and constant maximum power in unscrewing.
- Ergonomics and Bottom Exhaust: Pistol grip with integrated air exhaust at the base of the handle to direct the airflow away from the work surface.
Shipping cost: Free
for
Technical Features and Advantages of the Sumake ST-5578H Impact Wrench
Developed for high productivity and durability in machine shops and maintenance departments, the Sumake ST-5578H 3/4" square drive impact wrench combines a balanced construction with exceptional breakaway power. The compact pistol-grip design with an overall length of just 220 mm allows for agile work even in tight operating spaces.
Dual Mass Mechanism and Power Control
- Twin Hammer Impact Mass: The double hammer mechanism ensures immediate and uniform torque delivery, reducing the vibrations perceived by the operator.
- Power and Reverse Selector: The rear control allows you to easily set 3 progressive power levels during the screwing phase and to engage reverse at the maximum power output (1,356 Nm) for the removal of stuck bolts.
- Air Exhaust from the Handle: The exhaust duct positioned at the base of the handle channels the air downwards, avoiding turbulence or lifting of dust into the work area.
Air Supply Specifications
The tool requires a 3/8" threaded air connection and a recommended 13mm internal diameter air hose to ensure proper airflow (up to 540L/min at full load).
Detailed Technical Data Sheet
- Item Code (SKU): ST-5578H
- Manufacturer / Brand: Sumake
- Type: Pistol-type pneumatic impact wrench
- Output square drive: 3/4" Sq
- Maximum torque: 1,356 Nm (1,000 ft-lb)
- No-load speed: 4,800 - 5,000 rpm
- Bolt capacity: M26 (1")
- Impact mechanism: Twin Hammer
- Power adjustment: 3 levels in screwing / Maximum power in unscrewing
- Air exhaust type: Bottom from handle (Handle exhaust)
- Overall length (L): 220 mm (8.8")
- Tool weight: 4.0 kg (8.8 lbs)
- Air inlet: 3/8"
- Recommended tube diameter: 13 mm
- Air consumption: 540 l/min (12 cfm)
- Certifications: CE Approved
