180 MM 3M™ CUBITRON™ II VARIOUS GRITS (CF 10 PCS) 969F FLAT FLAP DISC

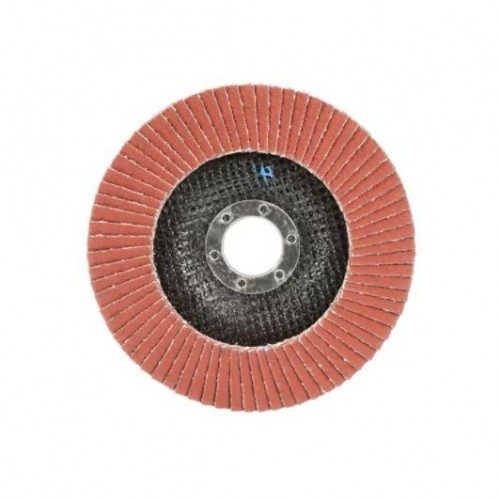

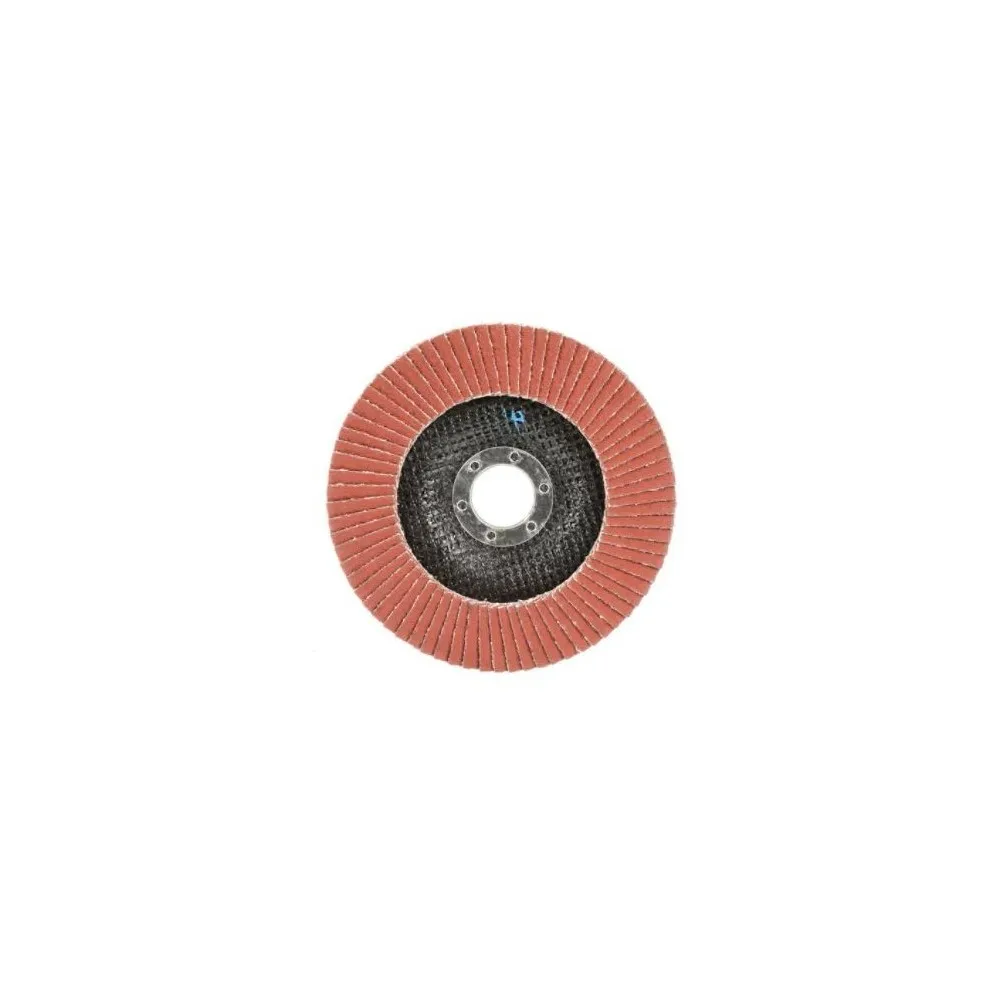

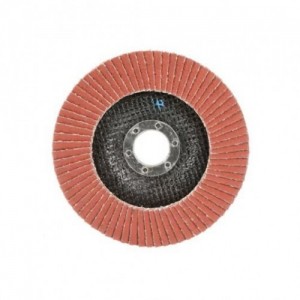

3M™ Cubitron™ II Flap Disc 969F – Ø 180 mm x 22 mm, Type 27

The 3M™ Cubitron™ II Disc 969F (969F Series) is designed to deliver best-in-class performance for demanding applications such as heavy-duty grinding and heavy weld removal. Its design is optimized for versatility and ease of use, reducing the risk of gouging compared to fiber or hard discs.

3M™ Precision Shaped Grain Innovation

This disc uses micro-replicated ceramic granules that cut cleanly into the metal instead of "plowing" it like traditional products. This technology guarantees:

• Constant cutting speed: Individual blades gradually fragment, exposing new sharp mineral throughout the life of the disc.
• Less physical effort: The PSG's rapid removal rate allows the job to be completed with less manual pressure, increasing operator comfort.
• Superior Productivity: Designed to deliver more completed parts per single disc, reducing downtime for abrasive changes.

Operational Benefits

• Cold Cut: Includes a grinding additive that reduces heat development, preventing discoloration and burning of the substrate.
• YF Weight Support: The durable polyester backing ensures mechanical stability and tear resistance even under extreme workloads.
• Smooth Finish: Despite its aggressiveness, the lamellar structure allows for a high-quality finish, ideal for projects where aesthetics are key.

Technical Specifications

• Overall Diameter: 180 mm.
• Central Hole Diameter: 22 mm.
• Disc Profile: Type 27 (Flat/Flat).
• Abrasive Material: Precision Shaped Ceramic (PSG).
• Backing Material: Ultra-durable YF Weight Polyester.
• Maximum Speed: 8,500 rpm.
• Technical Expiration: 3,650 days (10 years) from the date of production.

Available Variants (Identification Codes)

The 180mm 969F model is available in the following grits to cover every stage of the industrial process:

• Grit 40+: For heavy-duty grinding and fast weld removal (3M ID: 7100105865 | UPC: 04054596197152).
• Grit 60+: For deburring and surface preparation (3M ID: 7100105866 | UPC: 04054596197190).
• Grit 80+: For finishing and masking imperfections (3M ID: 7100105867 | UPC: 04054596197237).

Recommended Applications

Ideal for heavy metal fabrication, shipbuilding, railway and machinery manufacturing industries:

• Heavy weld bead removal;
• Edge chamfering and edge deburring;
• Finishing of large flat surfaces;
• Machining of stainless steel, carbon steel and heat-sensitive alloys.

Technical Advice: To get the most out of the Cubitron™ II system, we recommend using it on high-powered angle grinders that can maintain a constant rotation speed even under heavy load.
