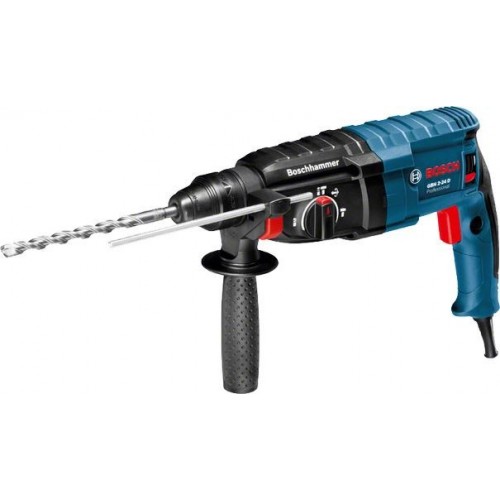

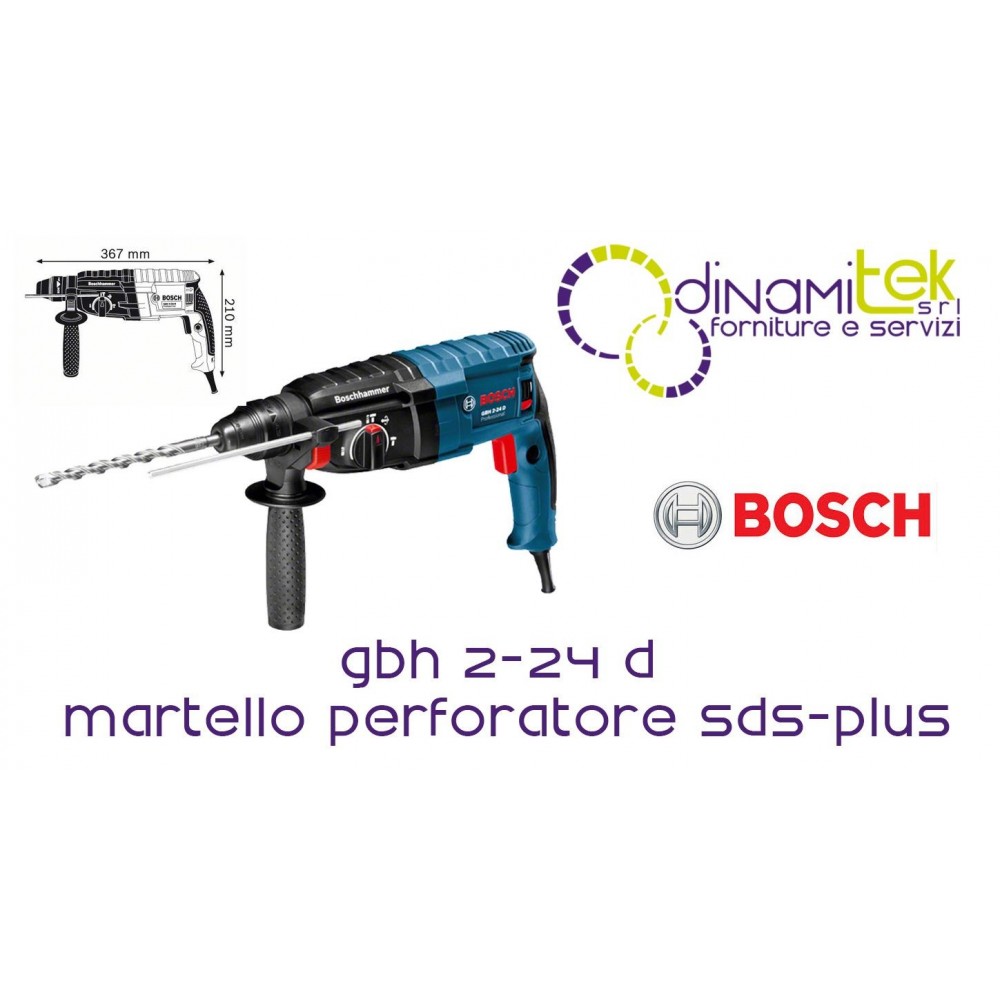

Bosch GBH 2-24 D Professional Hammer Drill (790 Watt, SDS-plus)

The GBH 2-24 D Professional is a heavy-duty rotary hammer with an SDS-plus holder. It is known for its compact design and high-quality components. The tool proved to be a test winner with medium removal rates, as confirmed by the independent testing and certification institute SLG.

Power and Performance

• Power Consumption: The universal tool delivers 790 Watts of power.
• Impact Energy: The single impact energy is 2.7 Joules , which ensures rapid work progress even in heavy-duty applications.
• SDS-plus system: Ensures optimal power transmission for small hammers and allows quick, tool-free tool changes.
• Operating Functions: It features dual rotation. The forward and reverse rotation is useful for freeing stuck bits. The tool can operate at maximum power in both rotations thanks to the brushes located on the rotating plate.
• Versatility: The chiselling stop expands the hammer's application possibilities.
• Precision: The variable speed control ensures a very precise drilling start phase every time.

Technical Data and Safety Features

Drilling Range (Maximum Capacities)

Below are the maximum drilling capacities supported by the tool:

• Concrete (hammer drill bits): 4 – 24 mm (Optimal range: 6 – 14 mm)
• Concrete (hollow drill bits): 68 mm
• Masonry (hollow drill bits): 68 mm
• Steel: 13 mm
• Wood: 30 mm

Vibration Data (Compliant with EN 60745)

• Hammer drilling in concrete: Vibration emission value ah 17.0 text{ m/s}^2 (Uncertainty K 1.5 text{ m/s}^2).
• Chiselling: Oscillation emission value ah 13.0 text{ m/s}^2 (Uncertainty K 1.5 text{ m/s}^2).

Equipment: Includes a free set of tips.
