03.000.51 HD CAGE FOR SAFE TIRE INFLATION MARCO TOOLS SPIN

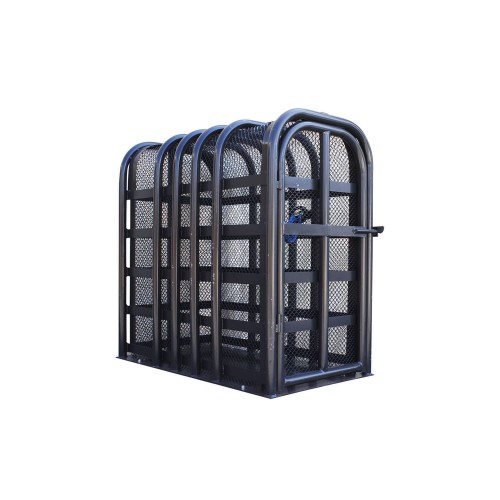

The ultimate protection for professional tire service. The Spin Model HD safety cage (Code 03.000.51CAN) is the gold standard for specialized tire service providers working on behalf of third parties. Designed to safely manage the inflation of all types of tires , including the extremely bulky ones of wheeled mechanical loaders , this reinforced structure prevents serious injuries by trapping rubber fragments or rims in the event of an explosion. Built in compliance with EU Machinery Directive 2006/42/EC , it represents a mandatory investment in workplace safety.
Shipping cost: Free
for
Total Safety for High Pressure Operations
The HD model represents the enhanced and larger version of the Marcotools by Spin safety cage range. Developed to meet the needs of workshops specializing in heavy-duty vehicles and earthmoving, this cage offers extended internal volumes to accommodate large tires, maintaining exceptional containment capacity thanks to the quality of the construction materials.
Industrial Grade Construction and Materials
- Load-bearing Structure: Made with a sturdy 45mm diameter tubular steel frame, designed to withstand violent impacts and shock waves.
- Safety Screen: Equipped with a high-strength, fine-mesh metal mesh, capable of effectively stopping projected metal fragments or tire portions.
- Larger Dimensions: With an internal volume of 138x64x139 cm, it can also accommodate the special tyres of mechanical shovels, ensuring total versatility.

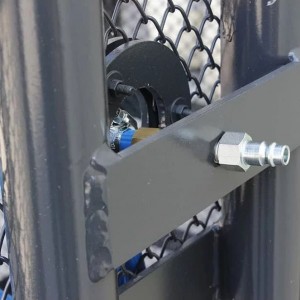

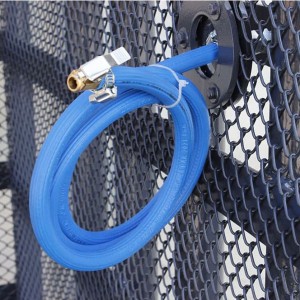

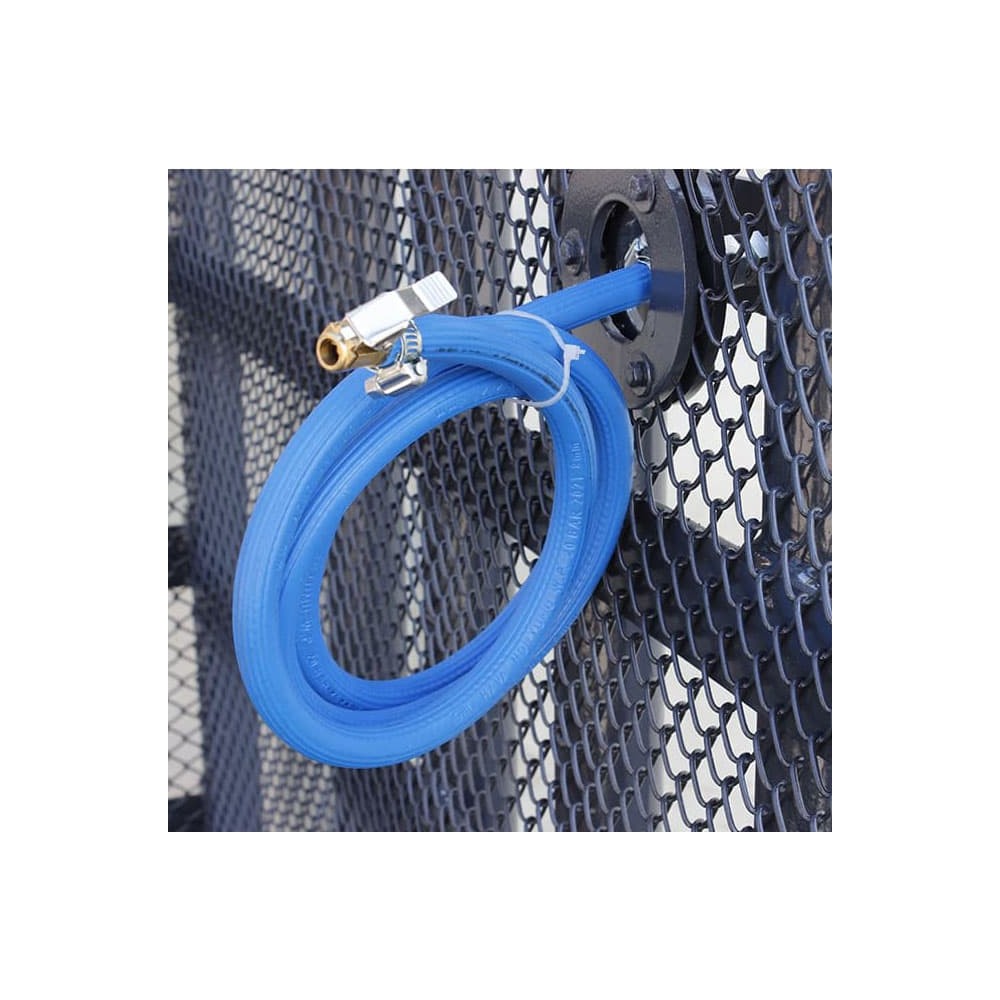

- Remote Inflation System: Includes the internal tube with inflation valve as standard, allowing the technician to monitor and adjust the pressure while operating outside the danger perimeter.
Applications and Regulatory Compliance
Using this device is essential to comply with employer safety obligations. The HD model fully complies with the following regulations:
- CUNA NC 195-09 (specific regulation for industrial vehicles).
- UNI 10558:2005 .
- EU Directive 2006/42/EC (with release of declaration of conformity).
Technical Specifications
- Product Code: 03.000.51CAN
- Model: HD (Heavy Duty)
- Target: Professional tire dealers / Mechanical shovels
- Maximum pressure: 10 bar
- External dimensions (WxDxH): 155 x 85 x h150 cm
- Internal dimensions (WxDxH): 138 x 64 x h139 cm
- Structure weight: 210 kg
- Logistics: Supplied in protective wooden packaging
