03.000.50CAN BASIC CAGE FOR SAFE TIRE INFLATION MARCO TOOLS SPIN
Certified safety for heavy vehicle maintenance. The Spin BASIC model safety cage (Code 03.000.50CAN) is an essential collective protection device for inflating truck and trailer tires. Designed to contain the ejection of rubber fragments or the rim in the event of an explosion, this robust structure complies with the most stringent European (2006/42/EC) and national regulations , ensuring maximum safety for the operator in the workshop or in transport companies.
Protection and Regulatory Compliance in Tyre Service
The BASIC model, Code 03.000.50CAN, represents a fundamental passive safety solution for any company that manages the internal maintenance of large tires. The use of these devices is required by current regulations to prevent serious or fatal injuries resulting from the structural failure of pressurized components.

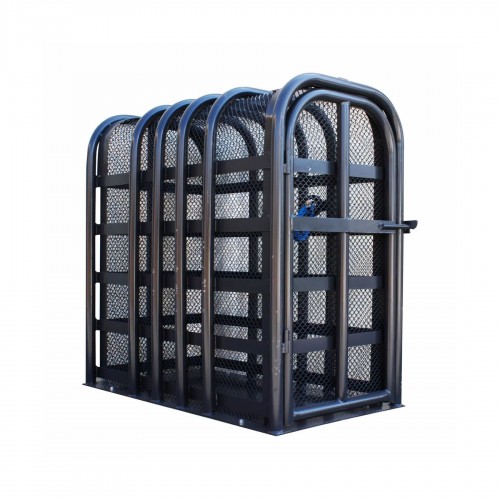

Construction Safety Features
- Reinforced Tubular Frame: The structure is made of Ø 45 mm steel tubes, designed to absorb the kinetic energy released by a possible explosion.
- Fine Mesh Net: Equipped with a dense wire mesh capable of effectively retaining splinters, locking rings (rim pieces) or tire portions.
- Integrated Inflation System: Includes an internal tube with pre-installed inflation valve, allowing the operator to manage the pressure while remaining outside the danger zone.
- Generous Dimensions: Designed to accommodate tyres up to size 385/60 22.5", covering almost all heavy duty road transport applications.
Target and Scope of Application
Unlike the HD version (intended for professional tire dealers), the BASIC model is primarily intended for haulage companies that carry out routine maintenance on their tractors and trailers in-house.
Compliance and Standards
- Built in compliance with EU Machinery Directive 2006/42/EC .
- It complies with the requirements of the CUNA NC 195-09 and UNI 10558:2005 standards.
- Each unit comes with a specific declaration of conformity.
Technical Specifications
- Product Code: 03.000.50CAN
- Model: BASIC
- Maximum operating pressure: 10 bar
- External dimensions (LxWxH): 133 x 75 x h133 cm
- Internal dimensions (WxDxH): 119 x 53 x h119.5 cm
- Structure weight: 160 kg
- Packaging: Wooden crate for safe transport
