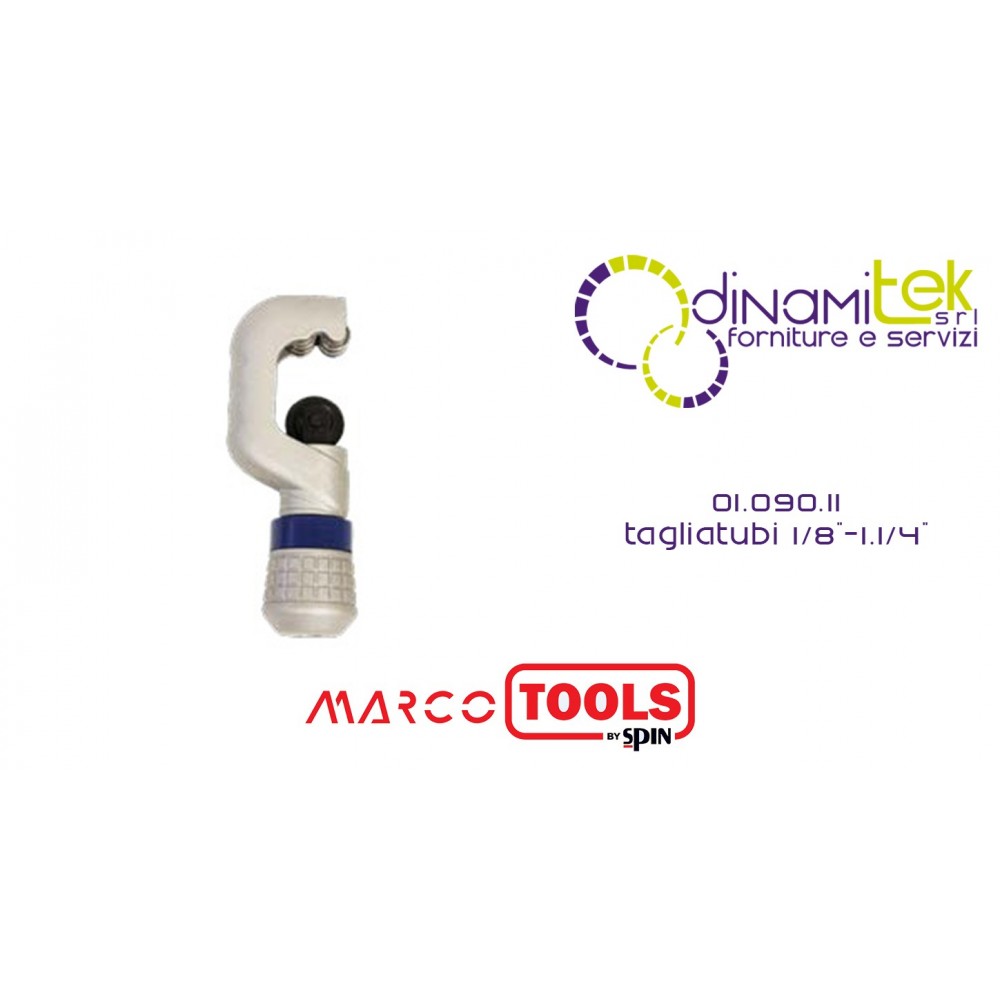

01.090.11 PIPE CUTTER 1/8-1 1/4 MARCO TOOLS SPIN

Efficiency in A/C and Refrigeration Service

The Spin model, Cod. 01.090.11 (Tube Cutter), is part of the Marcotools range of specialized equipment for air conditioning maintenance. Its robust and ergonomic structure is designed to facilitate work in the workshop or on construction sites, allowing precise cuts even on already installed pipes.

Technical Features and Operational Benefits

• Versatile Range of Use: Thanks to the smooth adjustment, the tool covers external diameters from 4 mm up to 32 mm, making it suitable for both small capillary tubes and larger supply/return lines.
• Optimized Cutting Geometry: The high-strength cutting wheel is designed to cut through metal (copper, brass, aluminum, or thin-walled steel) without deforming the pipe cross-section, which is critical for proper operation of retrieval and refilling stations.
• Precise Screw Adjustment: The feed knob allows you to calibrate the pressure of the blade on the pipe with extreme sensitivity, avoiding crushing and ensuring a long life of the cutting edge.
• Grooved Guide Rollers: The support rollers are equipped with specific grooves to stabilize the pipe during rotation, preventing oscillations that could compromise the perpendicularity of the cut.
• Ergonomic Design: The handle is shaped to transmit the necessary force with minimal effort, reducing operator fatigue during repetitive operations.

Areas of Use

• Piping preparation for R134a and R1234yf air conditioning stations.
• Installation and repair of residential and industrial refrigeration systems.
• Hydraulic maintenance interventions on copper and light alloy circuits.

Technical Specifications

• Product Code: 01.090.11
• Brand: Spin (Air Conditioning/Refrigeration Line)
• Diameter Range (Inches): 1/8” ÷ 1.1/4”
• Diameter range (Metric): 4 mm ÷ 32 mm
• Compatible materials: Copper, Aluminum, Brass
