• M001/150 - MORSA TRAPANO 150 MM FERVI Dinamitek 1

M001/150 150 MM DRILL VICE FERVI

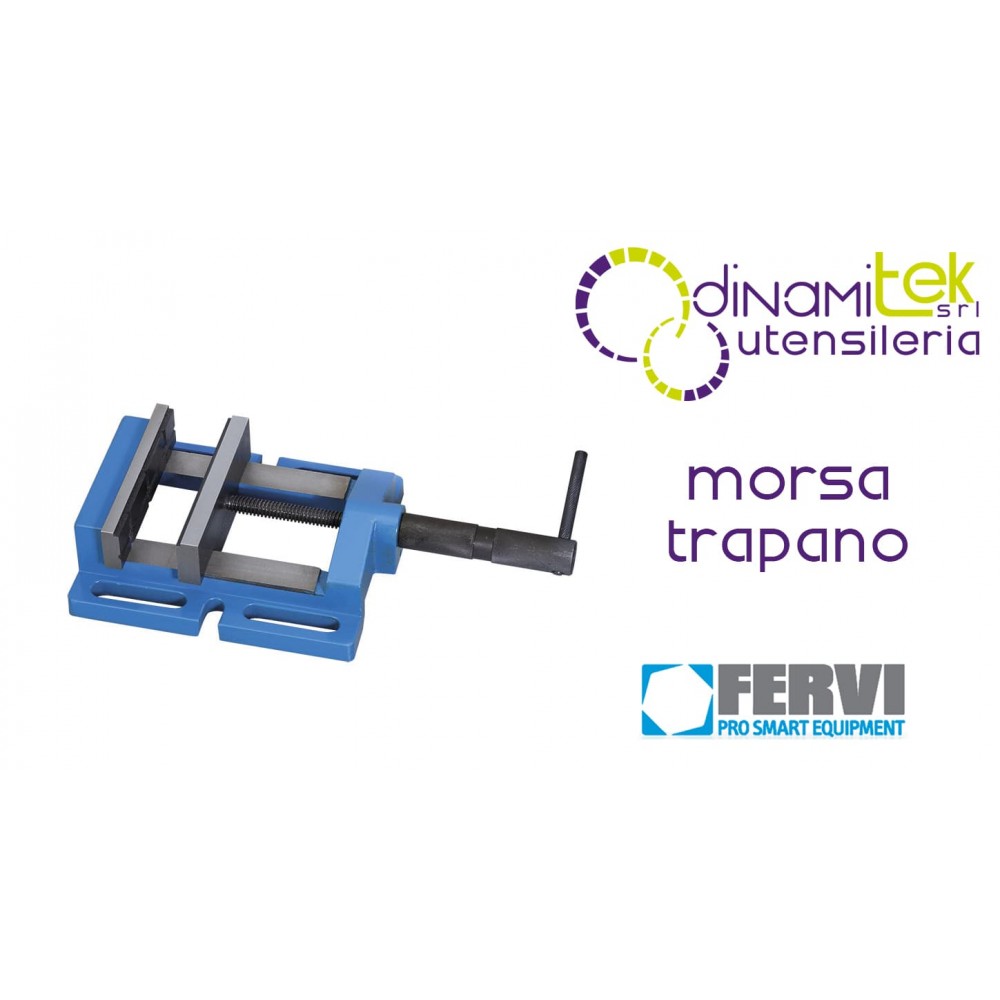

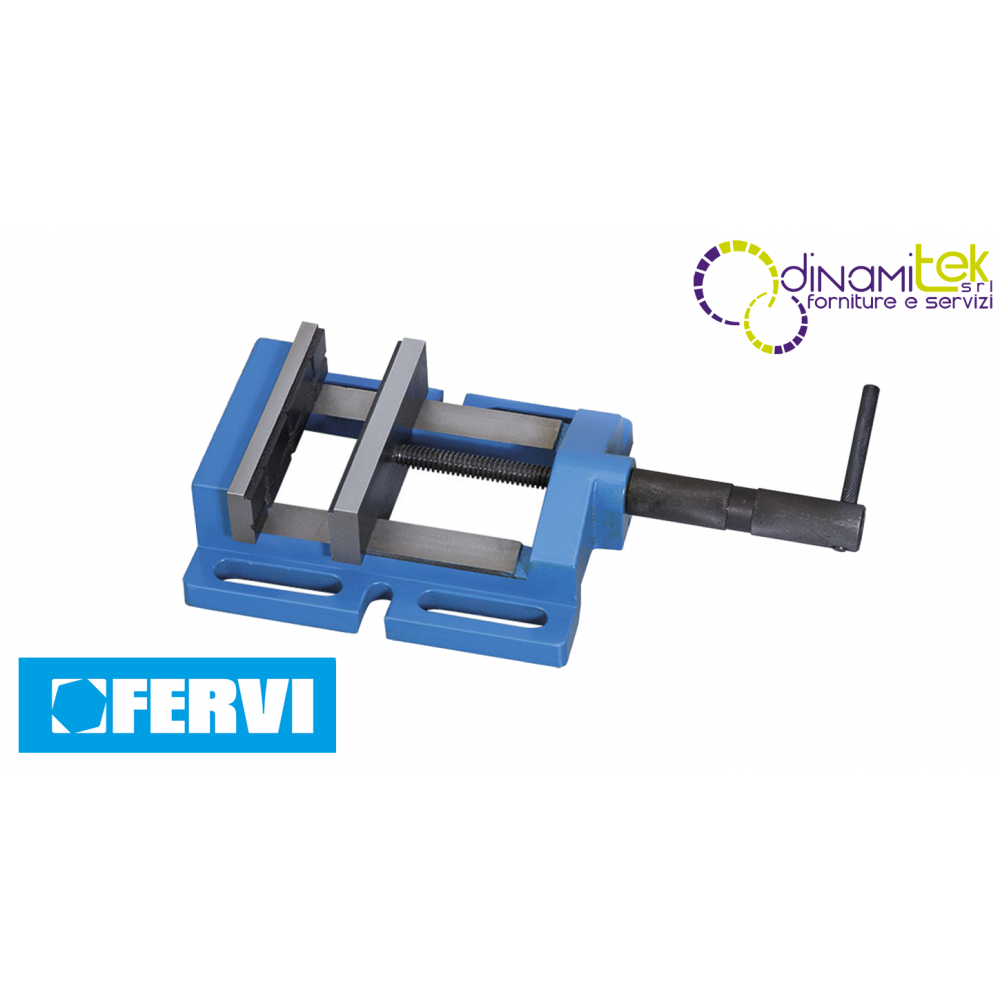

Cast iron vice for drill press with 150 mm jaws Fervi Art. M001/150.

The Fervi Art. M001/150 drill vice is the professional bench equipment made of sturdy cast iron with 150 mm jaws and a maximum opening of 135 mm , designed to ensure the firm and safe clamping of the pieces during drilling and milling operations.

  • Prismatic jaw and smooth jaw: the combination of the two jaws allows for optimal clamping of both flat components and cylindrical and tubular elements.
  • Jaw width 150 mm and opening 135 mm: large clamping capacity for working on elements of different shapes and sizes.
  • Highly stable cast iron structure (7 kg): absorbs vibrations and guarantees high resistance to mechanical stress.
  • Base dimensions 230 x 195 mm: equipped with lateral fixing slots for quick and precise assembly on the tops of column drills.
Shipping cost: Free for
95,16 €
Tax included

78,00 € Tax excluded

Quantity
Last items in stock

Technical Features and Advantages of the Fervi Drill Vice Art. M001/150

The Fervi drill vise, item M001/150 , is an essential accessory for machine shops, carpentry shops, maintenance workshops, and workbenches with pillar or bench drills. Made of high-strength cast iron, it ensures rigid clamping of the workpiece, eliminating play and slippage that can compromise drilling accuracy and extend drill bit life.

Double Jaw and Worktop Fixing

  • Integrated Prismatic Groove: the presence of the prismatic jaw allows you to firmly clamp round bars, rods and tubes in a vertical or horizontal position without the need for auxiliary shims.
  • Slotted Base for Quick Anchoring: the large side slots on the 230 x 195 mm base facilitate positioning and tightening with dowels on the slotted work surfaces of drills.
  • High-Tightness Operating Screw: ensures smooth transmission of the tightening force by keeping the contact surfaces parallel.

Detailed Technical Data Sheet

  • Item Code (SKU): M001/150
  • Manufacturer / Brand: Fervi
  • Product Type: Drill Press Vise / Machine Vise
  • Body material: Cast iron
  • Jaw width: 150 mm
  • Maximum aperture: 135 mm
  • Jaw profile: 1 prismatic jaw and 1 smooth jaw
  • Base dimensions: 230 x 195 mm
  • Packaging: Box
  • Net weight: 7.00 kg
  • Package dimensions (L x W x H): 410 x 210 x 95 mm
  • Gross weight: 7.55 kg
  • EAN Code: 8012667184087


M001/150
