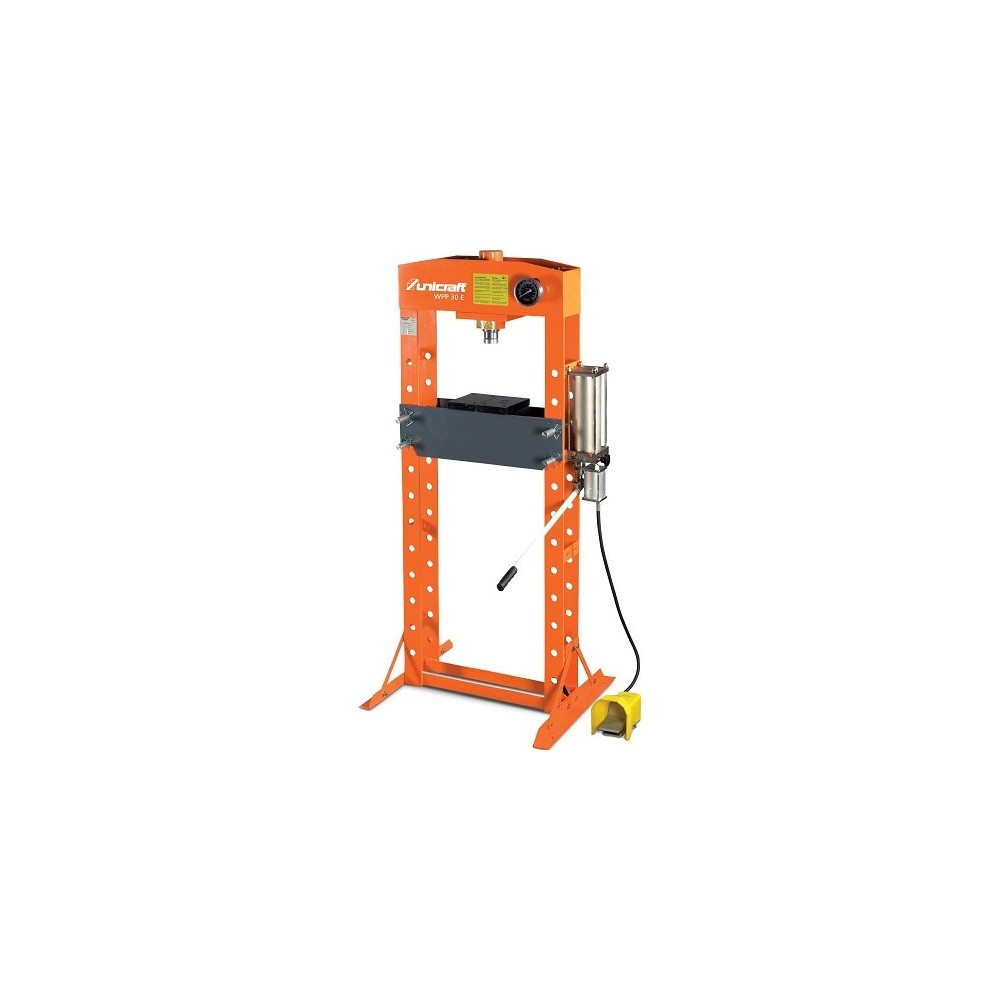

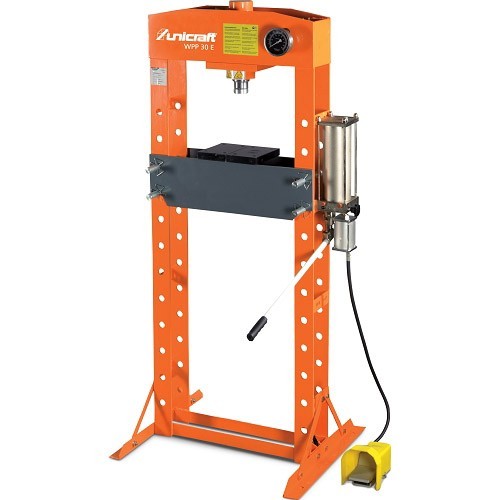

WPP 30 E HYDRAULIC PRESS, COMPRESSION FORCE 30 T, UNICRAFT

Industrial Power and Millimetric Control

The unicraft WPP 30 E model represents technological excellence for those requiring a robust press capable of handling heavy loads with extremely precise control. Its efficient design ensures an excellent quality-price ratio, offering the safety and versatility features typical of higher-end models.

Technical and Operational Features

• Dual Advance System: The operator can choose between manual operation via a lever for surgical precision work or pneumatic advance via a pedal (requires 7.5-8.5 bar pressure) to speed up repetitive operations and reduce physical fatigue.
• Total Flexibility: The sliding side cylinder allows for 200mm of horizontal movement, making it easy to position the pressure point without having to move heavy workpieces on the table.
• Working Ergonomics: The perforated frame allows you to adjust the lower table in 10 different positions , covering a vertical working area ranging from 150 to 1,030 mm.
• Integrated Safety: The machine features a built-in return spring that provides more operating space at the end of the cycle. The piston can be stopped at any position during the stroke for complete control of the workpiece.

Monitoring and Precision

The large integrated pressure gauge allows for immediate and precise reading of the pressure exerted, essential for preventing damage to components during the driving or straightening phases.

Technical Reference Data

Standard Equipment Included:

• Manometer for pressure control.
• Foot operated pneumatic pump.
• Lever for manual pump.
• Sliding cylinder with return spring.

Recommended Optional Accessory:

• Protective grille (Art. 630 0003): Essential to guarantee maximum operator safety in compliance with accident prevention regulations.
