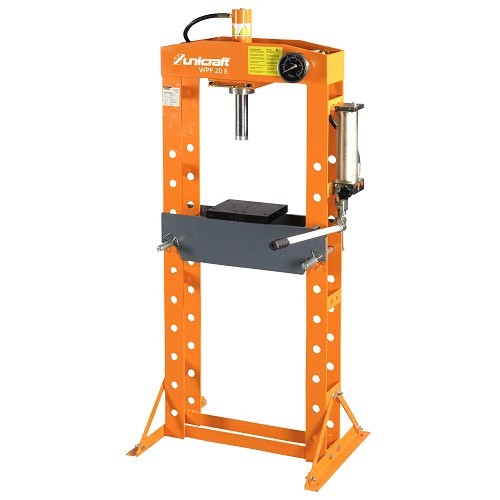

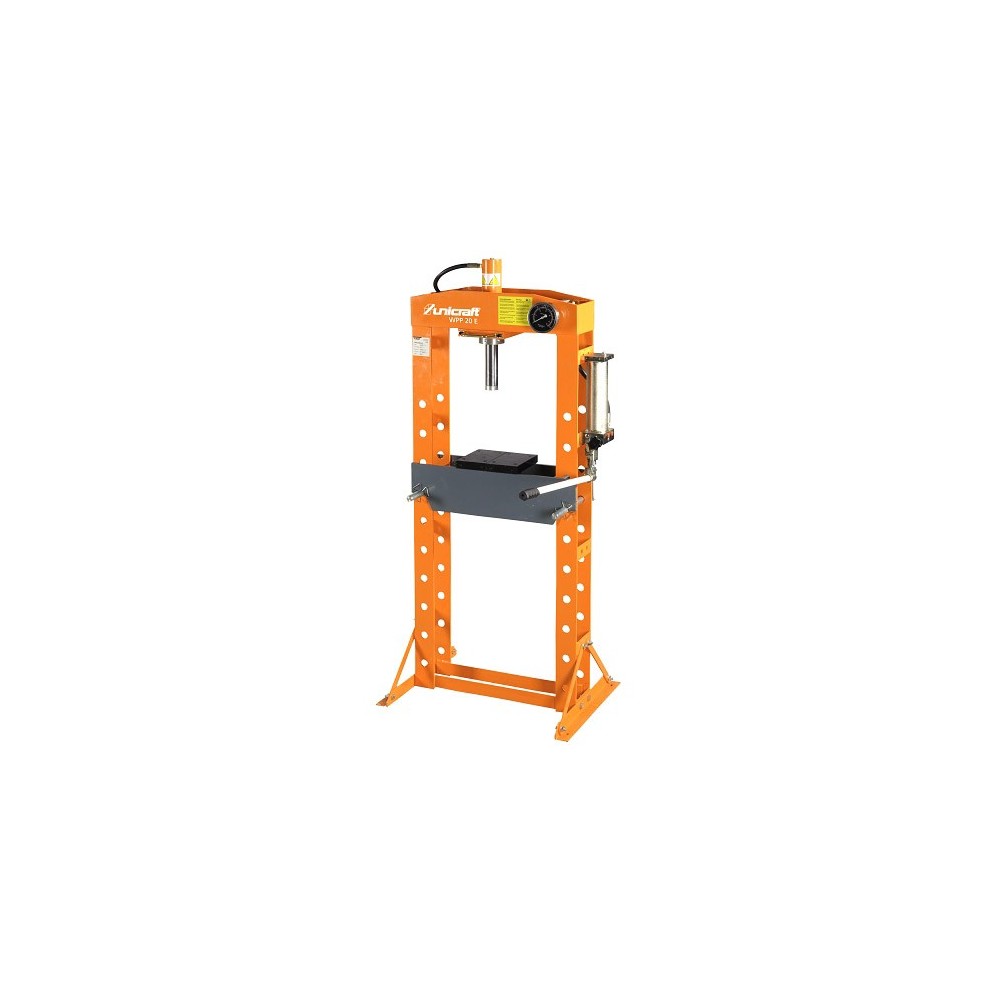

WPP 20 E HYDRAULIC PRESS, COMPRESSION FORCE 20 T, UNICRAFT

The unicraft WPP 20 E hydraulic press (Code 630 0020) is the ideal solution for versatile applications in machine shops and industrial departments. Featuring a pressing force of 20 tons , this press combines a sturdy welded frame with an efficient design that ensures precision and safety. Thanks to the sliding side cylinder and the 10-position adjustable lower table, it offers maximum flexibility for working on workpieces of various sizes.

Shipping cost: Gratis for
1032,75 €
Tax included

1.032,75 € Tax excluded

Quantity
Available product, order it now.

Efficiency and Safety in Pressing Operations

The unicraft WPP 20 E model was designed to meet the needs of those seeking a reliable tool for assembly, straightening, or bending. The efficient design of this series allows for professional standards with optimized space and ease of use.

Excellent Technical Features

  • Sturdy Structure: The frame is entirely welded and drilled , ensuring superior stability under load and allowing the height of the work surface to be adjusted in 10 different positions to best adapt to the component being treated.
  • Operational Flexibility: The sliding side cylinder allows the pressure point to be positioned with extreme ease along the horizontal axis, while the integrated return spring frees up valuable space in the work area at the end of each cycle.
  • Control and Safety: An integrated pressure gauge allows you to constantly monitor the pressure exerted. The operating method is made safe by the ability to stop the piston at any position during its stroke.
  • Manual Activation: Pressure is generated by a built-in, manually operated hydraulic pump, offering pinpoint control of the force applied.

Applications

This bench/floor press is the perfect tool for extracting bearings, inserting bushings and repairing mechanical components in general, finding use in both artisanal and industrial settings.

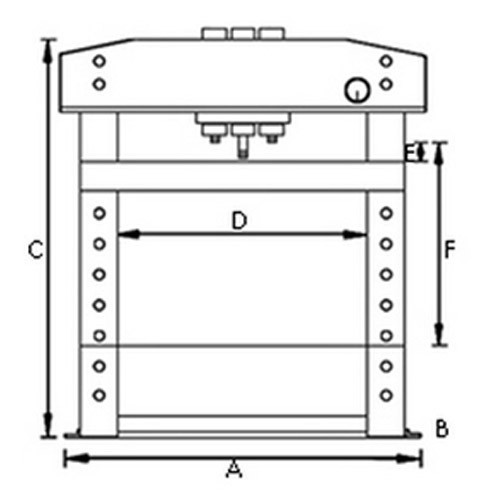

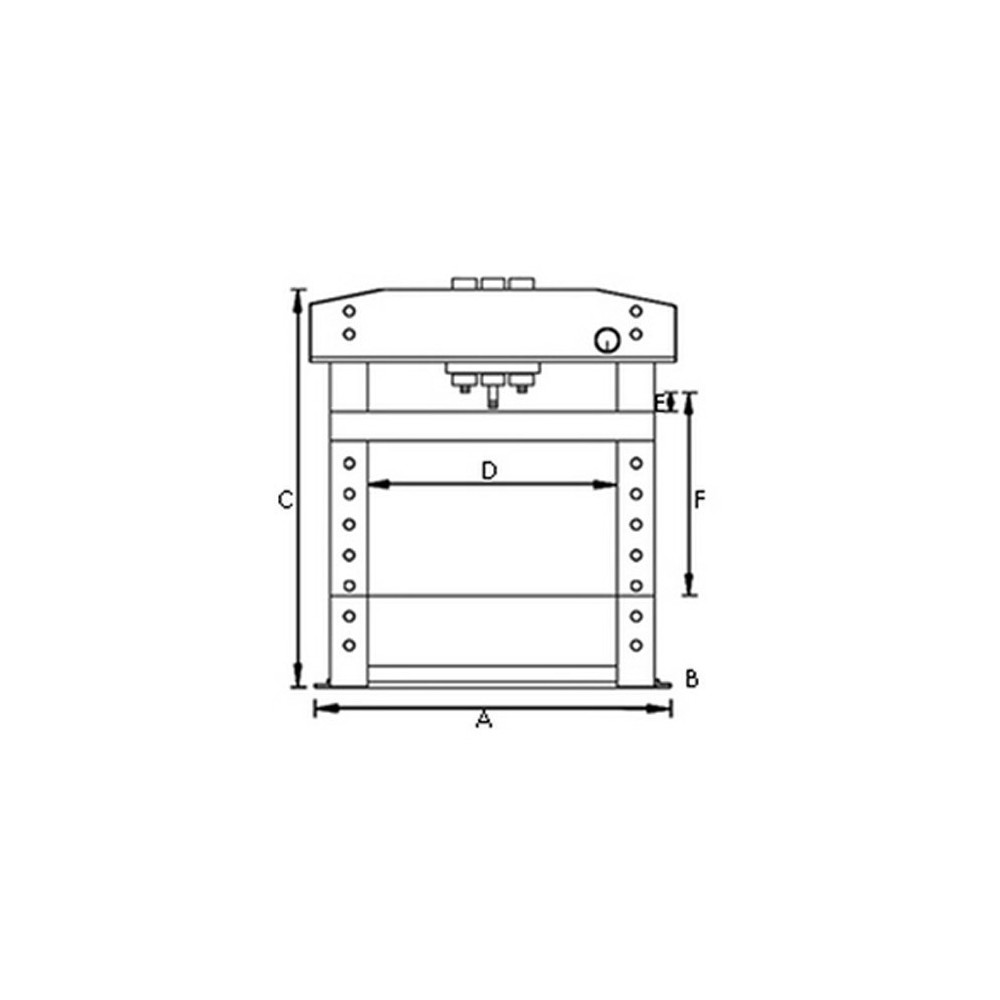

Technical Reference Data

Characteristic Detail
Product Code 630 0020 (UNI6300020)
Compression force 20 tons
Piston stroke 186.5 mm
Work Area (EF) 38.5 - 918.5 mm
Internal width (D) 510 mm
Piston lateral movement (G) 176 mm
Piston diameter 48 mm
Basic dimensions (HxW) 730 x 560 mm
Total height (C) 1,625 mm
Net weight 105 kg

Standard Equipment Included:

  • Manometer for pressure control.
  • Built-in manual hydraulic pump.
  • Sliding side cylinder.
  • Integrated return spring.

Recommended Optional Accessories:

  • Extractor kit (Art. 630 0001): 8 pieces with bearing plate and pins
  • Protective grille (Art. 630 0002): For maximum operator safety
