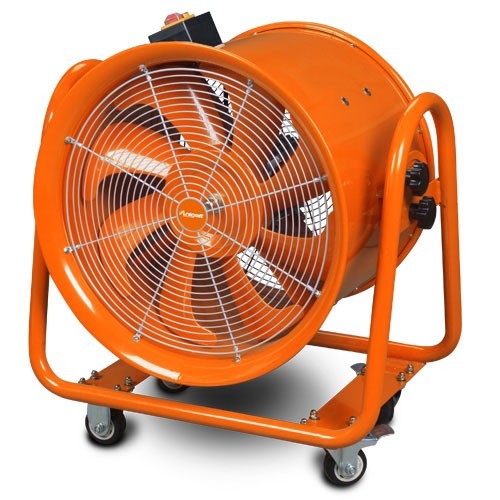

MV 50 PORTABLE FAN 1100 W - MAX AIR FLOW 150 M³/MIN - WEIGHT 39 KG UNICRAFT

The unicraft MV 50 portable fan (Code 626 0050) is the professional, high-power solution designed for moving large volumes of air in factories, workshops, and construction sites. Equipped with an 1,100 W motor, it guarantees a maximum air flow of 150 m³/min (9,000 m³/h), ideal for cooling machinery and recirculating air in poorly ventilated environments. Thanks to its sturdy, wheeled construction with rubber wheels, it combines industrial performance with excellent operational mobility.

Shipping cost: Free for
518,67 €
Tax included

518,67 € Tax excluded

Quantity
Available product, order it now.

Power and Versatility for Industrial Ventilation

The unicraft MV 50 mobile fan is an indispensable tool for maintaining high safety standards in harsh work environments. It is designed to operate in both air supply and extraction modes, allowing for the rapid removal of areas saturated with fumes, dust, or excessive heat. Its ability to connect to extended ducts also makes it suitable for use in underground or confined spaces.

Technical Features and Operating Standards

  • Extraction Efficiency: Specially designed to disperse hot air, welding fumes, gases, odors, dust and sawdust, immediately improving the healthiness of the work area.
  • Reinforced Mobile System: Unlike smaller models, the MV 50 is equipped with two fixed wheels and two swivel wheels complete with brake pedal , ensuring absolute stability during operation and ease of positioning.
  • Vibration Dampening: The rubber wheels and ergonomic handle are designed to minimize vibration transmission, ensuring quiet operation and protecting mechanical components.
  • Extended Air Flow: The 500mm diameter fan ensures constant ventilation even in large sheds, with the option of directing the flow via an optional 10m hose.

Applications

Ideal for rapid drying of painted surfaces, cooling of large mechanical components after machining and forced ventilation on construction sites and industrial sites.

Technical Reference Data

Characteristic Detail
Product Code 626 0050 (UNI6260050)
Max air flow 150 m³/min (9,000 m³/h)
Engine power 1,100 W
Diet 230 V / 50 Hz
Fan speed 1,400 rpm
Fan / cage diameter 500 mm / 580 mm
Dimensions (L x W x H) 670 x 670 x 485 mm
Net weight 39 kg

Recommended Optional Accessories:

  • Flexible Hose (Art. 626 0150): Ø 500 mm, length 10 m – Required for conveying air for remote intake or extraction.
The reliability of German production: machine tools and equipment for safe load handling
