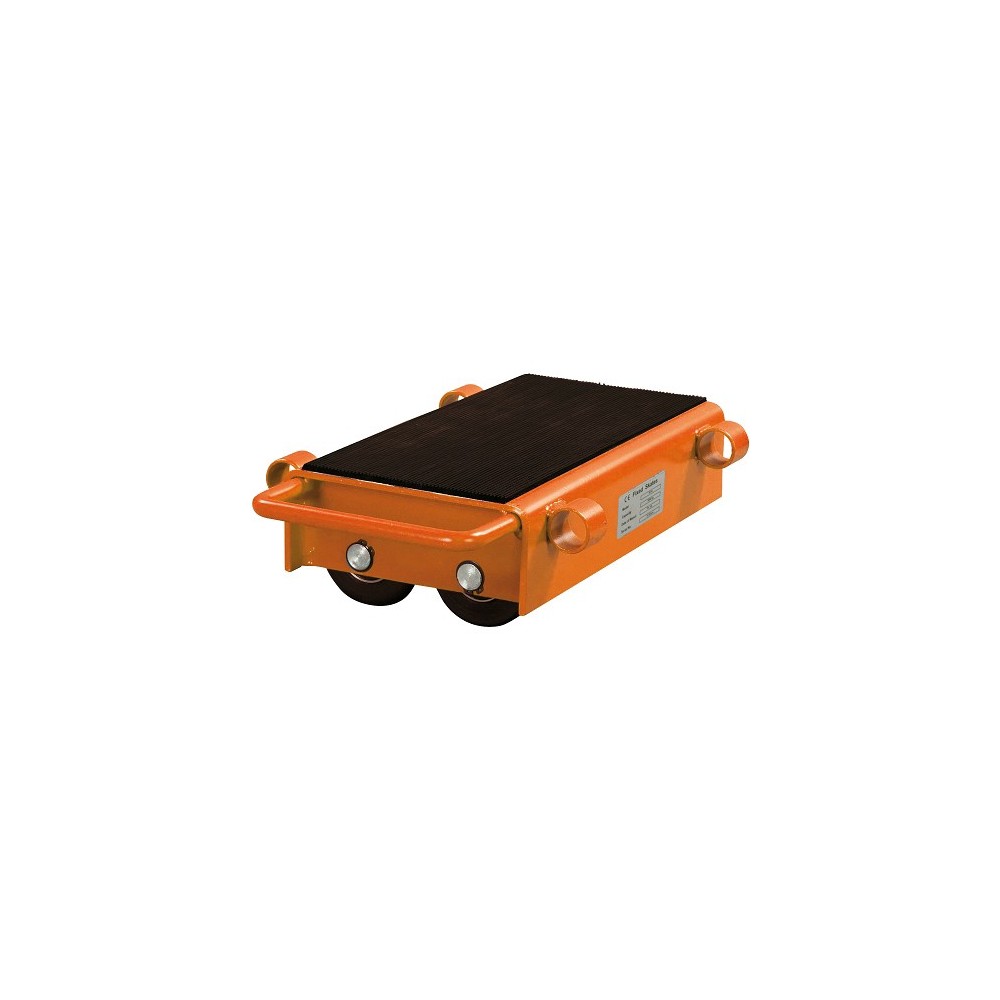

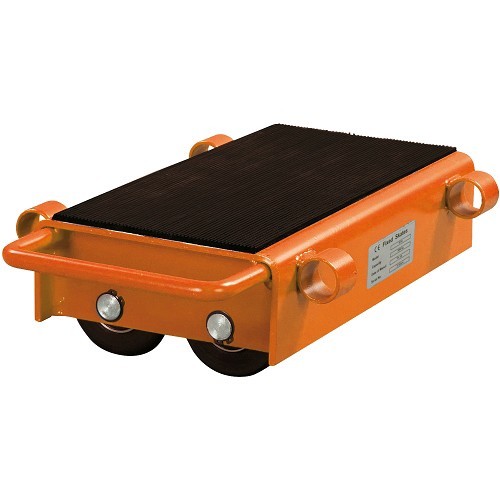

VTR 12 ADJUSTABLE ROLLER SKATES, 12 TON CAPACITY - 2-PIECE UNICRAFT KIT

The unicraft VTR 12 adjustable roller skate kit (Code 619 2120) is the high-capacity solution designed for the safe movement of extremely heavy industrial machinery and loads up to 12 tons . The system consists of two transport blocks connected by adjustable steel rods (from 720 to 1,500 mm), allowing for perfect adaptation to the width of the load. Thanks to the numerous nylon rollers mounted on bearings, it ensures smooth movement and impeccable stability on flat surfaces.

Shipping cost: €30.00 for
421,8 €
Tax included

345,74 € Tax excluded

Quantity
Available product, order it now.

Modularity and Power for Heavy-Duty Movements

The unicraft VTR 12 model represents the pinnacle of the VTR series in terms of load capacity. It is an indispensable tool for maintenance and installation teams working with loads up to 12,000 kg. Its modular structure allows the two transport blocks to be spaced according to the actual dimensions of the machinery, ensuring balanced and safe support during every phase of the move.

Mechanical Excellence and Safety

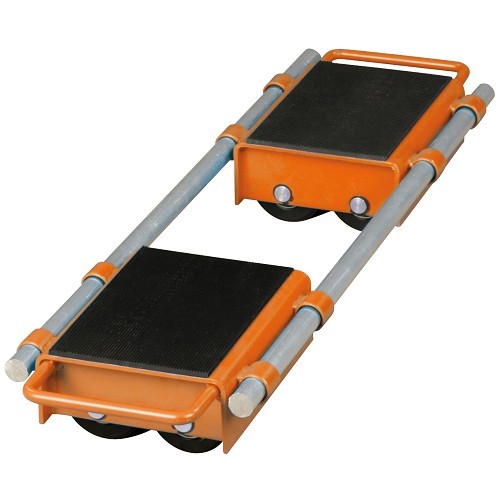

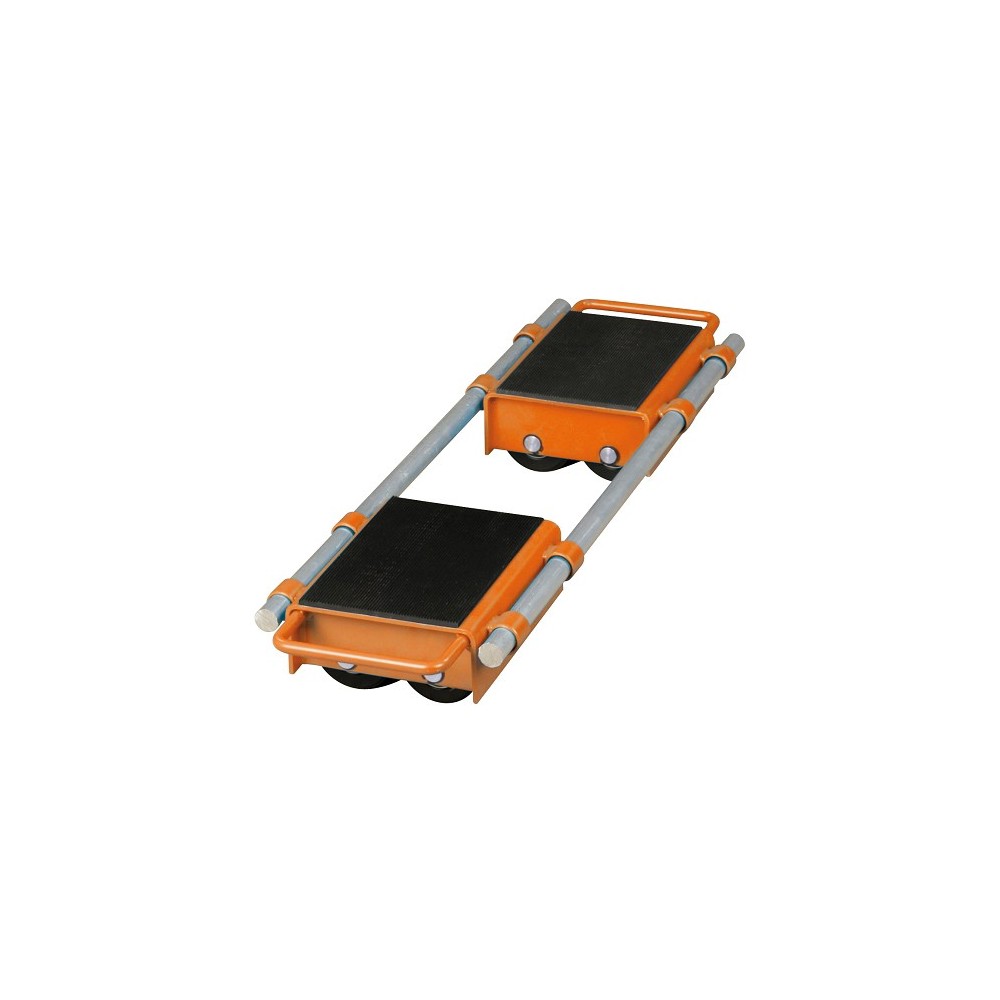

  • Configuration Flexibility: The 2 steel rods included in the kit allow you to adjust the width of the system from 720 mm up to 1,500 mm, making the skate compatible with a wide range of support bases.

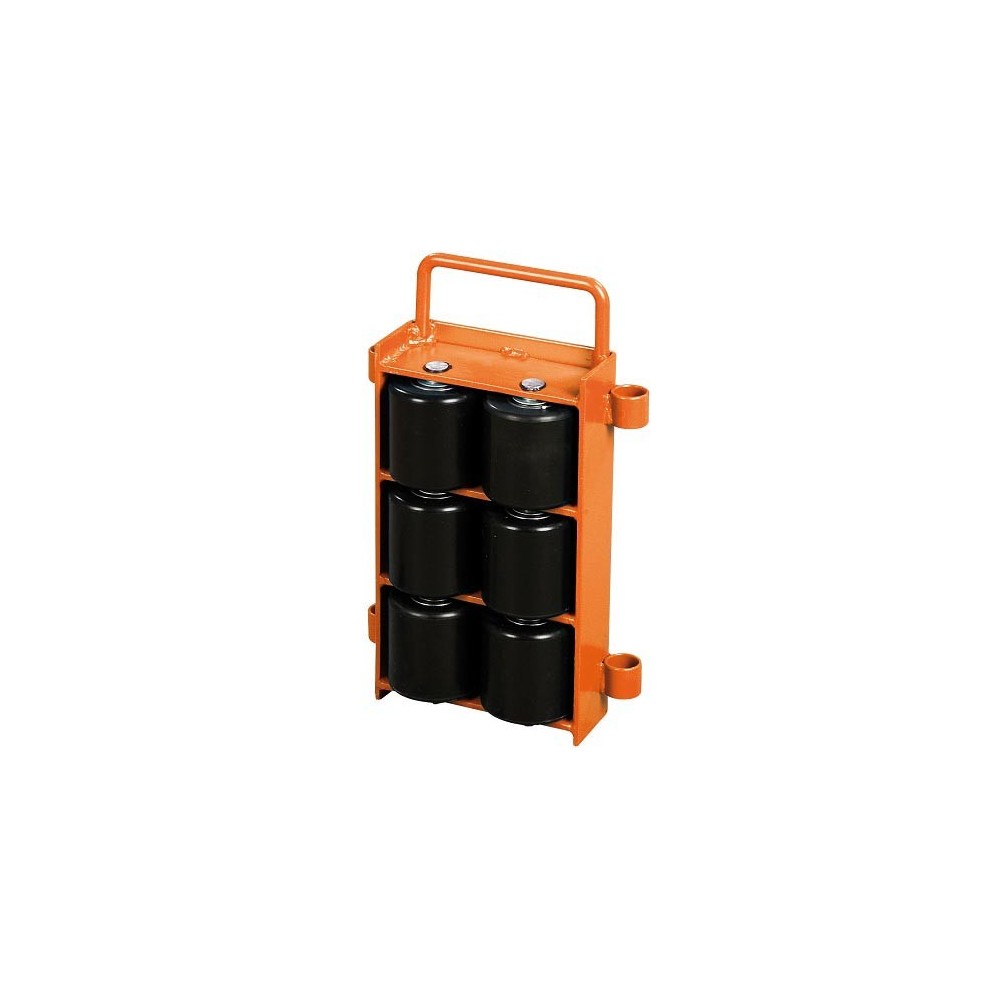

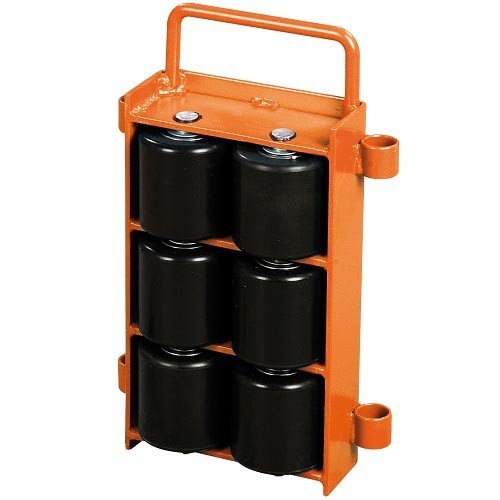

  • Load Distribution: Each block is equipped with 6 large nylon rollers mounted on high-precision bearings, which reduce initial friction and protect the workshop floor.
  • Load Stability: The top of each unit features a high-density , non-slip rubber surface , designed to prevent accidental load slippage during maneuvering.
  • Industrial Construction: The sturdy steel construction is designed to withstand intensive work cycles in industrial environments, ensuring a long operating life.

Applications

The VTR 12 kit is ideal for positioning work centers, large presses, industrial transformers, and heavy metal structures. The combination of high load capacity and adjustable adjustment options makes it an essential investment for internal logistics.

Technical Reference Data

Characteristic Detail
Product Code 619 2120 (UNI6192120)
Maximum load (Kit) 12 tons
Adjusting the connecting rods 720 ÷ 1,500 mm
Dimensions (per single block) 420 x 268 x 110 mm
Number of rollers (per block) 6 nylon rollers
Roller size 85 x 90 mm
Net weight (per single block) approx. 38 kg

Equipment Included in the Kit:

  • 2 transport blocks with 6 rollers each.
  • 2 adjustable steel connecting rods.
  • Pre-installed non-slip rubber surfaces.
L'affidabilità della produzione tedesca: macchine utensili e attrezzature per la movimentazione sicura dei carichi


VTR 12
