PLATFORM ELECTRIC HYDRAULIC LIFTING CAPACITY 1 T - MIN/MAX HEIGHT 190/1010 MM SHT 1000 UNICRAFT Dinamitek 1
  • PLATFORM ELECTRIC HYDRAULIC LIFTING CAPACITY 1 T - MIN/MAX HEIGHT 190/1010 MM SHT 1000 UNICRAFT Dinamitek 1
  • PLATFORM ELECTRIC HYDRAULIC LIFTING CAPACITY 1 T - MIN/MAX HEIGHT 190/1010 MM SHT 1000 UNICRAFT Dinamitek 2

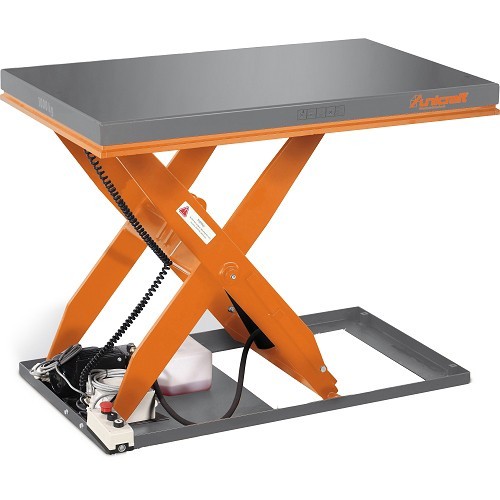

SHT 1000 ELECTRIC HYDRAULIC LIFTING PLATFORM, CAPACITY 1 T - MIN/MAX HEIGHT 190/1010 MM UNICRAFT

The unicraft SHT 1000 electric hydraulic lift platform (Code 6154100) is a professional solution designed to ensure an ergonomic and safe work environment. With a load capacity of 1 ton and a maximum height of 1,010 mm , this machine allows heavy loads to be lifted to the optimal height for the operator. Featuring a sturdy steel structure and compliant with rigorous EN 1570 safety standards, it is ideal for assembly lines, workshops, and shipping departments.

Shipping cost: €150.00 for
2725,46 €
Tax included

2.233,98 € Tax excluded

Quantity
Available product, order it now.

Ergonomics and Safety for Industrial Lifting

The unicraft SHT 1000 model represents a standard of reliability for vertical material handling. The platform has been designed to reduce operator stress, offering a stable, hydraulically adjustable work surface (1,300 x 800 mm). Its foldable structure allows for easy storage and optimization of workshop space when the machine is not in use.

Construction Excellence and Safety Standards

  • Precise Remote Control: Comes with a separate control unit featuring 3 meters of cable , intuitive control buttons and a mushroom emergency switch for maximum protection.
  • High-Resistance Mechanics: Integrates high-pressure cylinders with double safety function and a stable powder-coated steel structure, resistant to scratches and industrial wear.
  • Integrated Protection: The base is equipped with protective strips to prevent injuries during the descent phases of the board.
  • EN 1570 compliance: The machine is built in full compliance with European regulations for lifting platforms, guaranteeing high levels of operational safety.

Operational Performance

Thanks to the 0.75 kW motor powered by 400 V, the platform ensures smooth and constant lifting, reaching maximum extension in just 25 seconds even when fully loaded.

Technical Reference Data

Characteristic Detail
Product Code 615 4100 (UNI6154100)
Maximum capacity 1 ton
Table dimensions 1,300 x 800 mm
Min/max height 190 mm / 1,010 mm
Lifting time 25 seconds
Full load speed 40 mm/sec
Motor Power / Voltage 0.75 kW / 400 V
Net weight 220 kg

Standard Equipment Included:

  • External control unit (3 m cable) with emergency stop.
  • User manual and EN 1570 safety certification.
  • High pressure hydraulic cylinders.
The reliability of German production: machine tools and equipment for safe load handling


SHT 1000
