PLATFORM ELECTRIC LIFT CAPACITIES UP TO 1 T - MIN/MAX HEIGHT 80/760 MM SHT 1001 U UNICRAFT Dinamitek 1
  • PLATFORM ELECTRIC LIFT CAPACITIES UP TO 1 T - MIN/MAX HEIGHT 80/760 MM SHT 1001 U UNICRAFT Dinamitek 1
  • PLATFORM ELECTRIC LIFT CAPACITIES UP TO 1 T - MIN/MAX HEIGHT 80/760 MM SHT 1001 U UNICRAFT Dinamitek 2

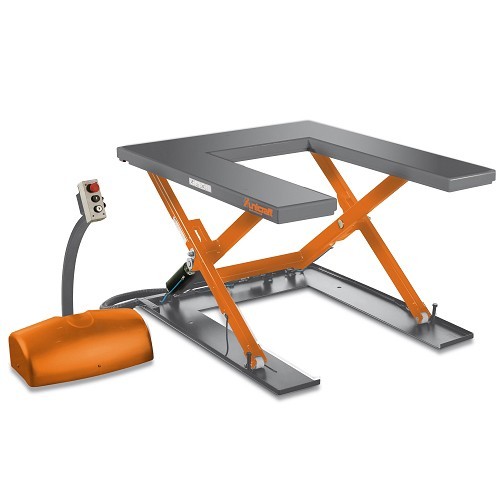

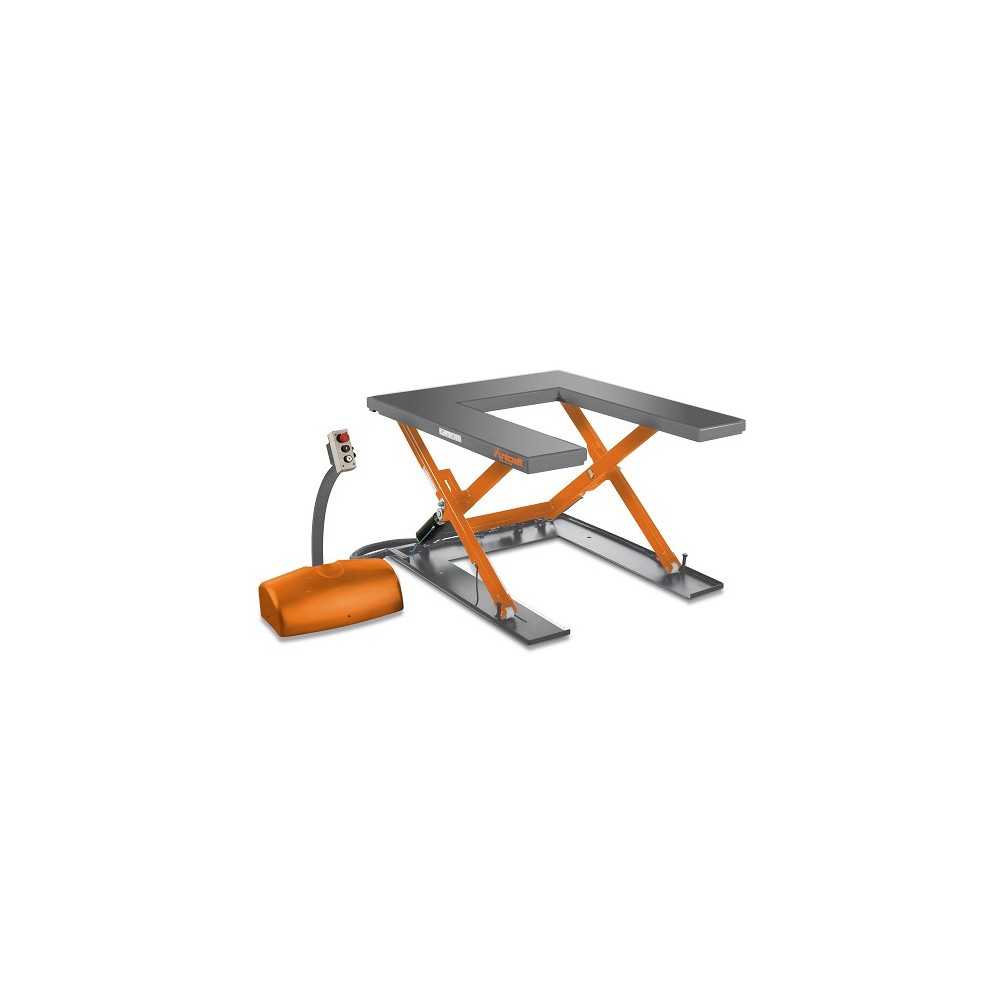

SHT 1001 U ELECTRIC LIFTING PLATFORM CAPACITY 1 T - MIN/MAX HEIGHT 80/760 MM UNICRAFT

The unicraft SHT 1001 U electric lifting platform (Code 6153101) is the ideal professional tool for creating ergonomic and functional workstations. Featuring a U-shaped platform , it allows direct and easy access to pallet trucks without the need to recess the structure into the floor. With a capacity of 1 ton and an included loading ramp, it ensures quick and safe lifting in any industrial environment.

Shipping cost: €150.00 for
3477,72 €
Tax included

2.850,59 € Tax excluded

Quantity
Available product, order it now.

Accessibility and Precision for Industrial Logistics

The unicraft SHT 1001 U model represents a cutting-edge solution for load handling. Its powder-coated steel structure is designed to withstand intensive work cycles, offering an optimal working height that reduces operator fatigue and increases productivity.

Construction Excellence and Safety

  • Intelligent "U" Design: The particular shape of the table allows the pallet truck to enter directly into the central compartment (1,050 x 585 mm), drastically simplifying pallet loading and unloading operations.
  • Remote Control: The machine features a separate control unit with 3 meters of cable , intuitive control buttons and a mushroom emergency switch for maximum operator protection.
  • High Quality Mechanics: Integrates a chromed piston rod and high pressure cylinders with double safety function , ensuring a controlled and smooth descent.
  • Regulatory Compliance: Designed in full compliance with EN 1570 safety standards, ensuring high standards at every operational stage.

Versatility and Maintenance

The platform folds for easy storage when not in use. The included loading ramp further facilitates the movement of wheeled loads, making it a complete, ready-to-use lifting station.

Technical Reference Data

Characteristic Detail
Product Code 615 3101 (UNI6153101)
Maximum capacity 1 ton
External dimensions of the table 1,450 x 1,140 mm
Internal compartment dimensions (U) 1,050 x 585 mm
Min/max height 80 mm / 760 mm
Lifting time 18 seconds
Full load speed 42 mm/sec
Motor Power / Voltage 0.75 kW / 400 V
Net weight 235 kg

Standard Equipment Included:

  • Separate control unit (3 m cable).
  • Loading ramp for pallet trucks.
  • User manual and CE conformity certification.
The reliability of German production: machine tools and equipment for safe load handling


SHT 1001 U
