FHT 500 TROLLEY-MOUNTED LIFTING PLATFORM, MAX. LIFTING HEIGHT 900 MM, UNICRAFT

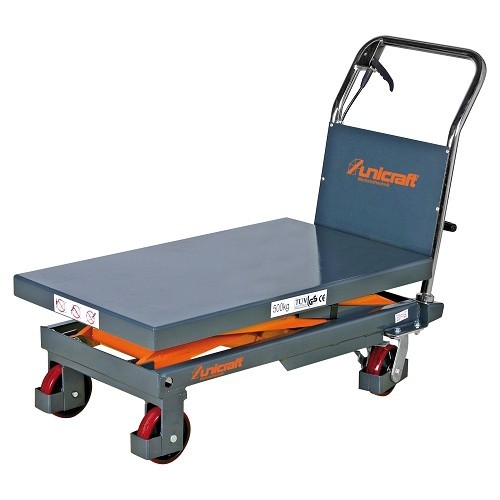

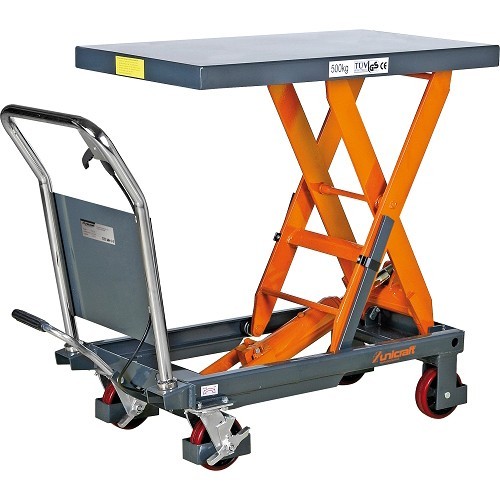

The unicraft FHT 500 mobile lifting platform (Code 6150500) is the ideal professional tool for facilitating loading, unloading, and handling operations for goods weighing up to 500 kg . Featuring a solid steel structure and a practical hydraulic pedal , it allows you to reach a maximum height of 900 mm with extreme ease. Thanks to the wheels equipped with protection and brakes, it guarantees maximum stability and safety for the operator at every stage of the work.

Shipping cost: €50.00 for
811,41 €
Tax included

665,09 € Tax excluded

Quantity
Available product, order it now.

Hydraulic Efficiency and Structural Solidity

The unicraft FHT 500 model is a hydraulic platform designed to improve ergonomics and productivity in industrial and craft environments. The machine stands out for its robust, high-quality steel construction , capable of withstanding intense stress and ensuring a long life.

Operational Control and Safety

  • Pedal Lift: The hydraulic device is operated via a convenient pedal, allowing the operator to lift the work surface with minimal physical effort (approximately 55 strokes for maximum lift).

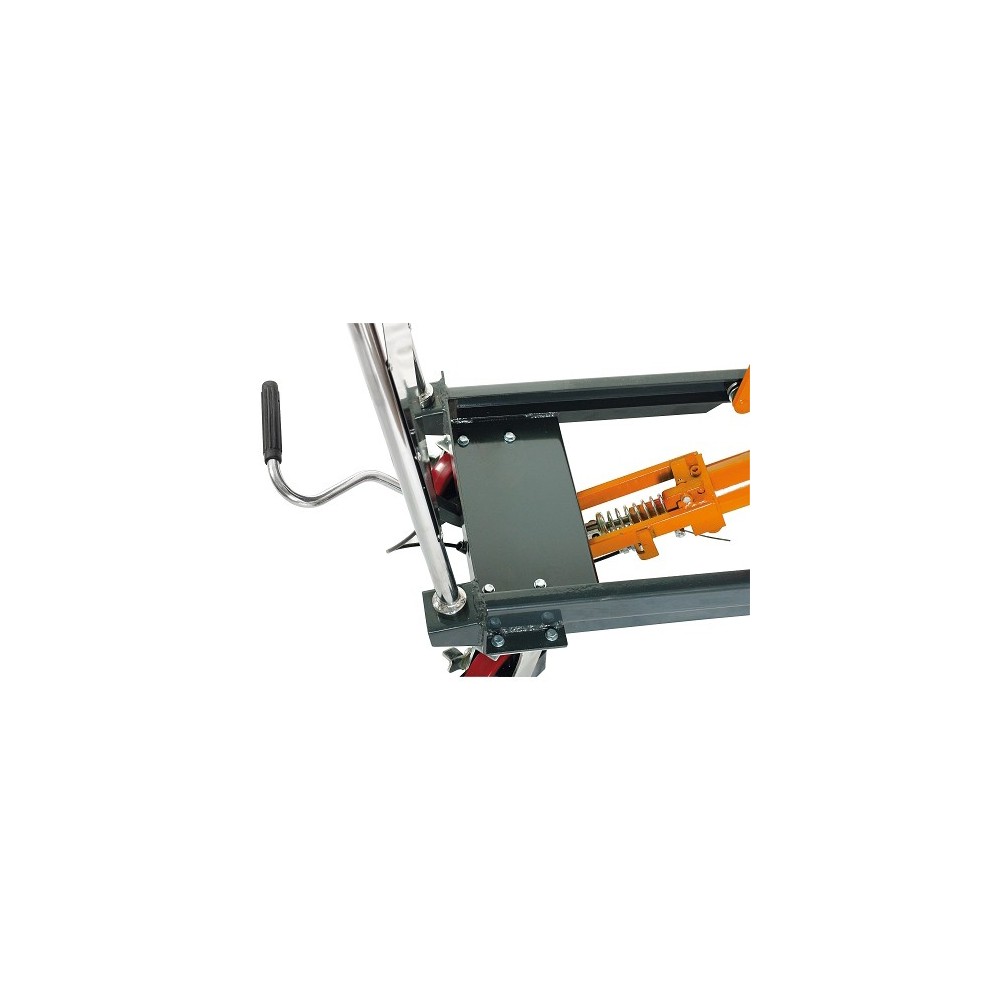

  • Controlled Manual Descent: The table is lowered manually using a lever, ensuring smooth and precise load positioning.
  • Protection and Stability: The trolley is equipped with 127 mm wheels with parking brakes and dedicated protections, essential to prevent accidental movements during loading and unloading operations.
  • Protection System: The machine integrates an overload valve that protects the hydraulic circuit and the structure from weights exceeding the nominal capacity.

Areas of Use

The FHT 500 is ideal for aligning heavy components on workbenches, transporting materials in warehouses and as an auxiliary support on assembly lines.

Technical Reference Data

Characteristic Detail
Product Code 615 0500 (UNI6150500)
Maximum capacity 0.5 tonnes (500 kg)
Table dimensions (L x W x D) 855 x 500 x 50 mm
Min / max lifting height 340 mm / 900 mm
Total length 1,087 mm
Grip height (handle) 805 mm
Max number of strokes per lift 55
Wheel diameter 127 mm
Net weight 87 kg

Standard Features Included:

  • Hydraulic foot-operated lifting device.
  • Parking brakes on the steering wheels.
  • Ergonomic handle for maneuverability.
  • Safety valve against overload.
The reliability of German production: machine tools and equipment for safe load handling


FHT 500
