230 MM X 3 MM X 22.23 MM EN 3M™ CUBITRON™ 3 (CF. 50 PCS) T41 CUTTING DISC 36+ 87371

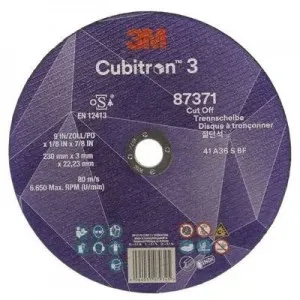

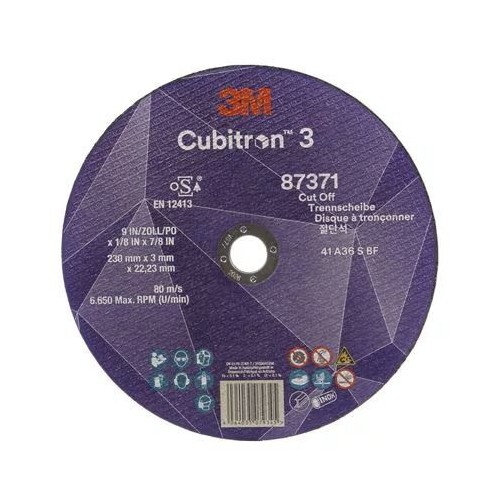

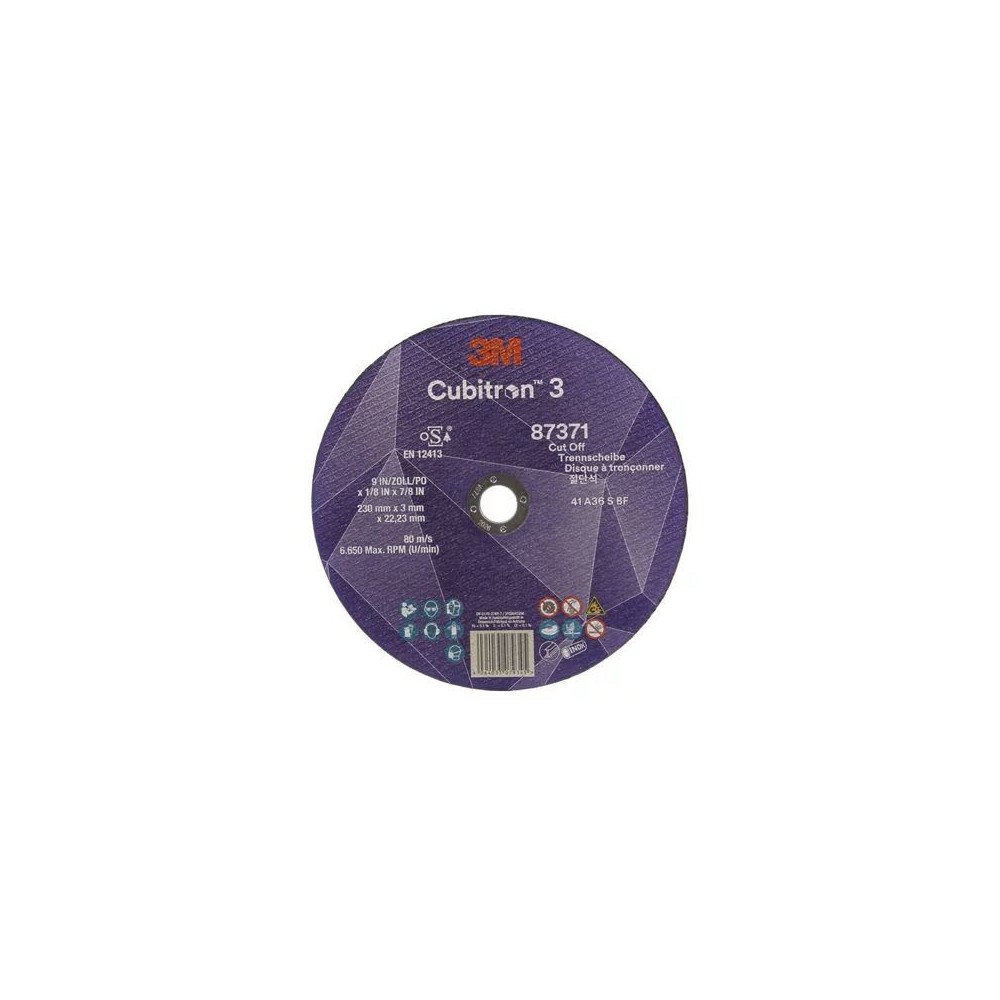

3M™ Cubitron™ Cutting Disc 3 87371 – Ø 230 mm x 3 mm x 22.23 mm

3M™ Cubitron™ 3 Disc (ID 7100303832) is a Type 41 ultra-high performance bonded abrasive specifically developed for perpendicular cuts made with the outside edge of the disc. Drawing on over 100 years of 3M metalworking innovation, this next-generation disc is optimized for the most demanding industrial applications under harsh conditions.

Next Generation Benefits and Features

• Reengineered PSG Technology: Precision Shaped Grain ceramic mineral uses cutting-edge molecular bonding technology. The sharp, angular structures fracture in a controlled manner, continuously regenerating cutting edges for consistent stock removal and optimal disc wear.
• Superior Efficiency: Compared to the legendary Cubitron™ II series, this blade increases cutting speed by 10%, significantly reducing operator pressure and run time.
• Unsurpassed Performance: Designed to remove up to 3 times more material than Cubitron™ II discs, while lasting up to 2 times longer than the best competing discs on the market.
• Extra-Cool Cutting: Constant regeneration of the PSG grain minimizes thermal friction, preventing discoloration and structural damage even on the hardest and most heat-sensitive metals.
• Sturdy 3mm Thickness: The 3mm configuration provides greater stability and strength when cutting thick, heavy pipes and industrial profiles.

Technical Specifications

• Overall Diameter: 230 mm.
• Thickness: 3 mm.
• Center Hole Diameter: 22.23 mm.
• Grit: 36+ (Extra Aggressive).
• Wheel Type: Type 41 (straight cutting disc).
• Maximum Speed: 6,650 rpm.
• Abrasive Material: Re-engineered Precision Shaped Ceramic.
• Technical expiration date: 1095 days (3 years) from production.

Applications and Sectors

The 87371 model is the gold standard for heavy-duty operations in the heavy engineering, oil and gas and transportation industries:

• Industrial Cutting: Stainless steel pipes, heavy ducts, large rods and profiles.
• Maintenance and Repair (MRO): Removal of clamps, rusted fasteners and casting slag.
• Compatible substrates: Stainless steel (Inox), non-ferrous metals and all hard metals.

Technical Tip: To fully utilize the potential of the Cubitron™ 3, use a powerful, robust 3M angle grinder capable of maintaining a constant speed under load. Never exceed the 6,650 RPM indicated on the disc.
