Cast Iron Solidity and Millimetric Precision
Item 592 0450 (HOL5920450) represents an excellent choice for those requiring a compact lathe with uncompromising performance. The all-cast iron construction not only provides robustness but also ensures the stability needed to work on various types of wood without inaccuracies caused by torsional vibrations.
Technical Features and Ergonomics
- Robust Mechanics: The bed, tailstock and spindle head are made of heavy cast iron , ensuring smooth operation and long life.
- Speed Management: The V-belt transmission allows for 5-stage adjustment (from 680 to 2,800 rpm), easily controlled thanks to a practical inspection window on the belt compartment.
- Quick Clamping: The cast iron tailstock and tool rest clamp instantly using quick-release levers , speeding up setup between machining stages.
- Drilling Versatility: The tailstock shaft is equipped with a through hole , an essential feature for performing deep and precise drilling directly on the rotating workpiece.

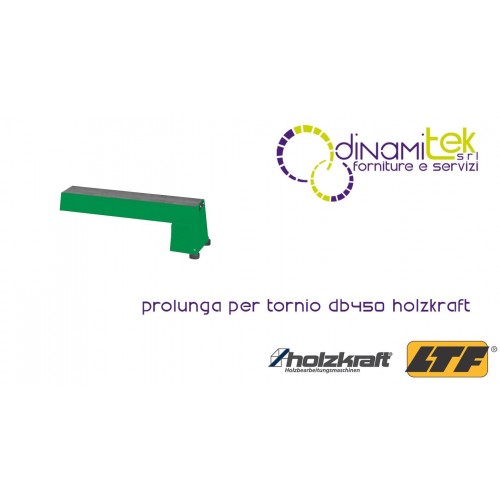

- Expandability: The standard 450 mm center distance can be extended up to 1,000 mm by purchasing the optional bed extension, thus allowing the processing of longer workpieces such as table legs or columns.
Areas of Application
Perfect for model making, furniture restoration, crafting (bowls, pens, knobs), and educational workshops. The ergonomic handwheel allows for smooth adjustment of the tailstock stroke (50 mm), always ensuring the piece is correctly centered.
Technical Reference Data
| Characteristic | Detail |
|---|
| Product Code | 592 0450 (HOL5920450) |
| Max turning Ø | 254 mm |
| Tip height | 127 mm |
| Distance between tips | 450 mm (1,000 mm with extension) |
| Spindle attachment | M 33 x 3.5 |
| Spindle speed | 680 - 1,000 - 1,400 - 2,000 - 2,800 rpm |
| Speed number | 5 stages |
| Power Supply / Power | 230V - 50Hz / 0.37kW (370W) |
| Morse taper | CM 2 |
| Dimensions (L x W x H) | 820 x 300 x 430 mm |
| Net weight | 31 kg |
Standard Equipment Included [1, 3]:
- Workpiece support (tool rest).
- Rotating tailstock.
