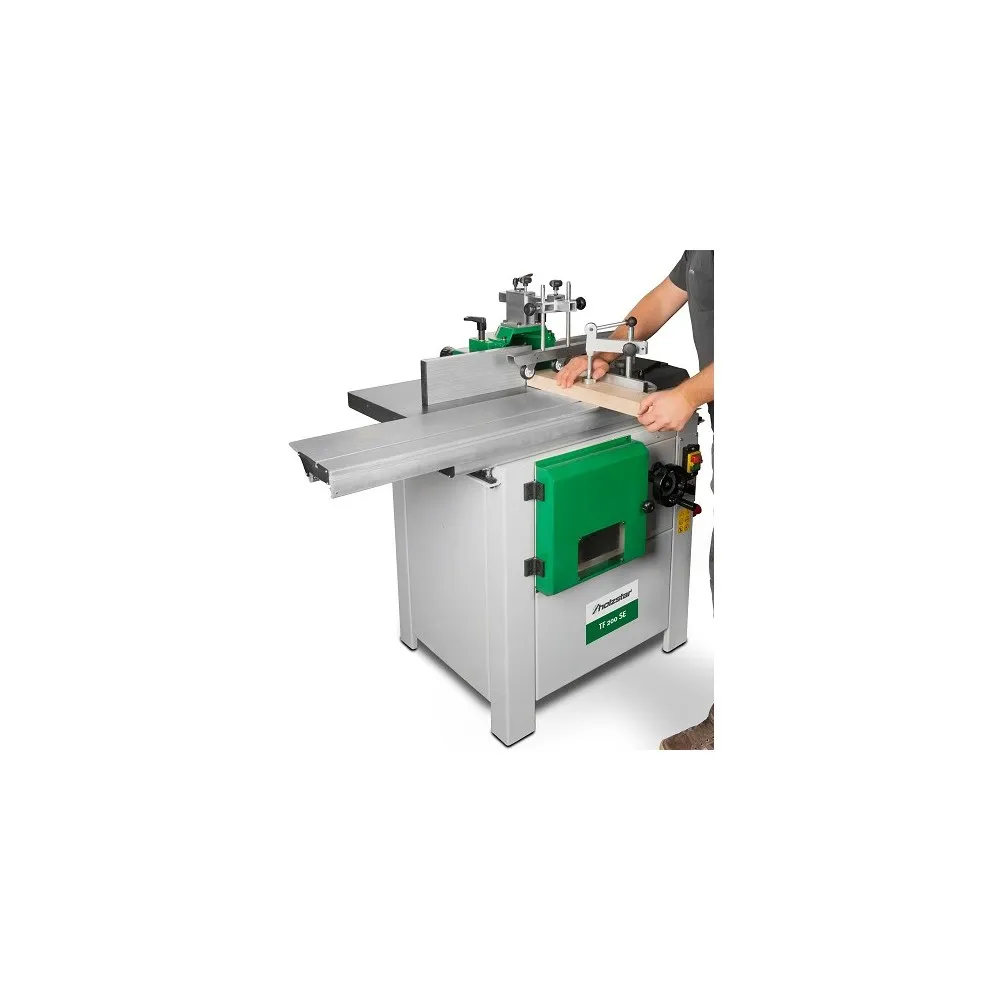

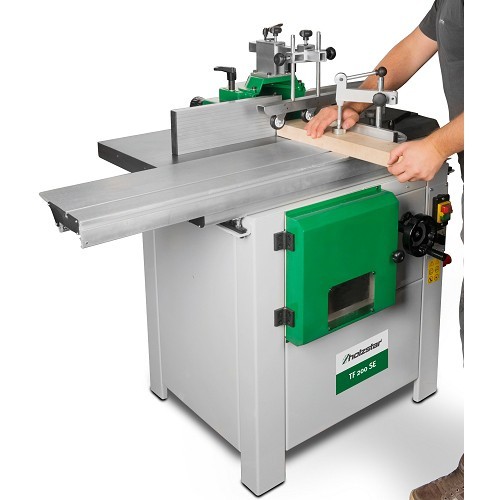

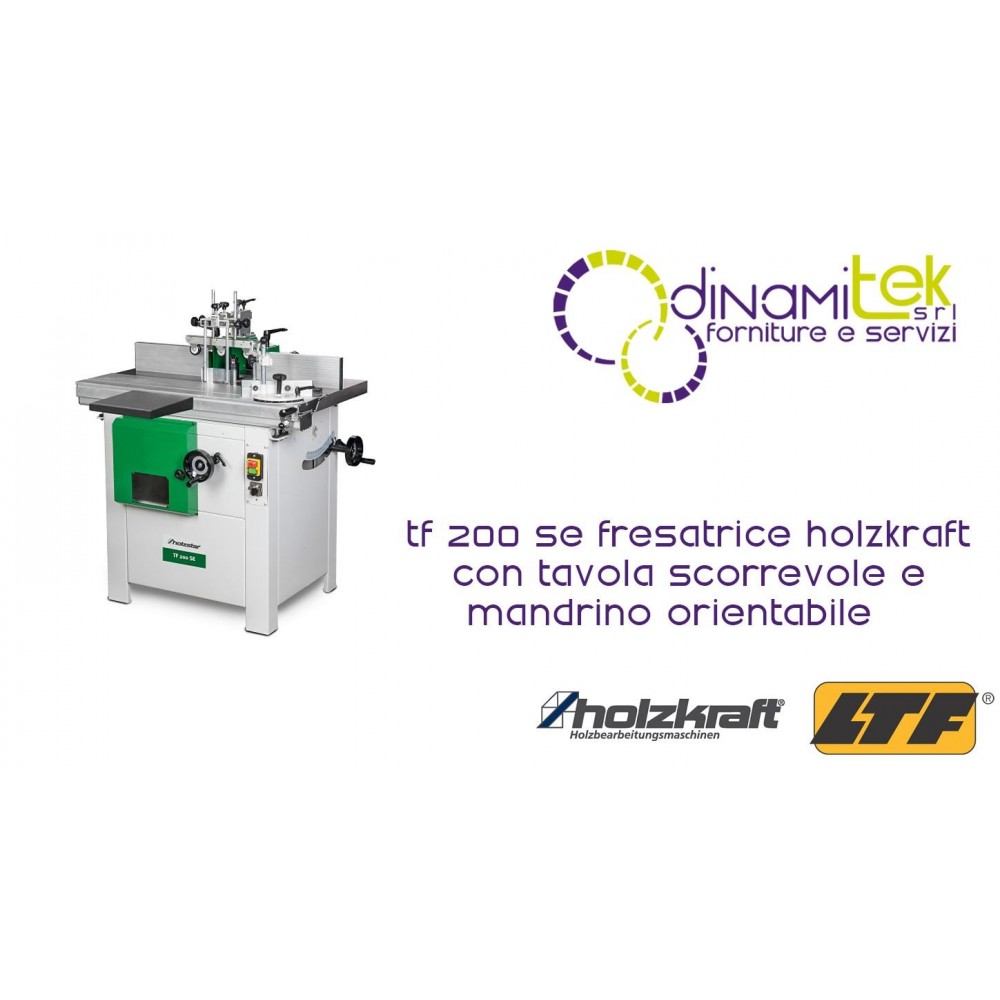

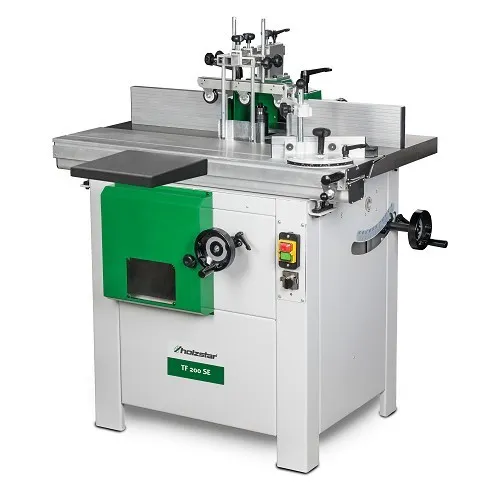

5902000 TF 200 SE HOLZKRAFT MILLING MACHINE WITH SLIDING TABLE AND SWIVEL SPINDLE DIMENSIONS 1000X360 MM

The wood-fired Model TF 200 SE Spindle Moulder (Code 5902000) is a professional machine designed to ensure pinpoint precision and maximum safety when working with wood. Equipped with a sliding table for smooth workpiece feed and a spindle that tilts from -5° to +45° , it allows you to make clean and complex cuts with ease. The sturdy , torsion-resistant cast iron work surface and powerful 2.8 kW motor make it the ideal tool for craftsmen seeking stability and versatility in a single solution.

Shipping cost: €100.00 for
4732,78 €
Tax included

3.879,33 € Tax excluded

Quantity
Available product, order it now.

Operational Flexibility and Superior Cutting Quality

The TF 200 SE router is designed to optimize efficiency in the carpentry workshop. The integrated swivel spindle allows for optimal use of the feed unit, ensuring not only greater operator safety but also a flawless edge finish thanks to the ability to angle the tool relative to the workpiece.

Technical Features and Precision Mechanics

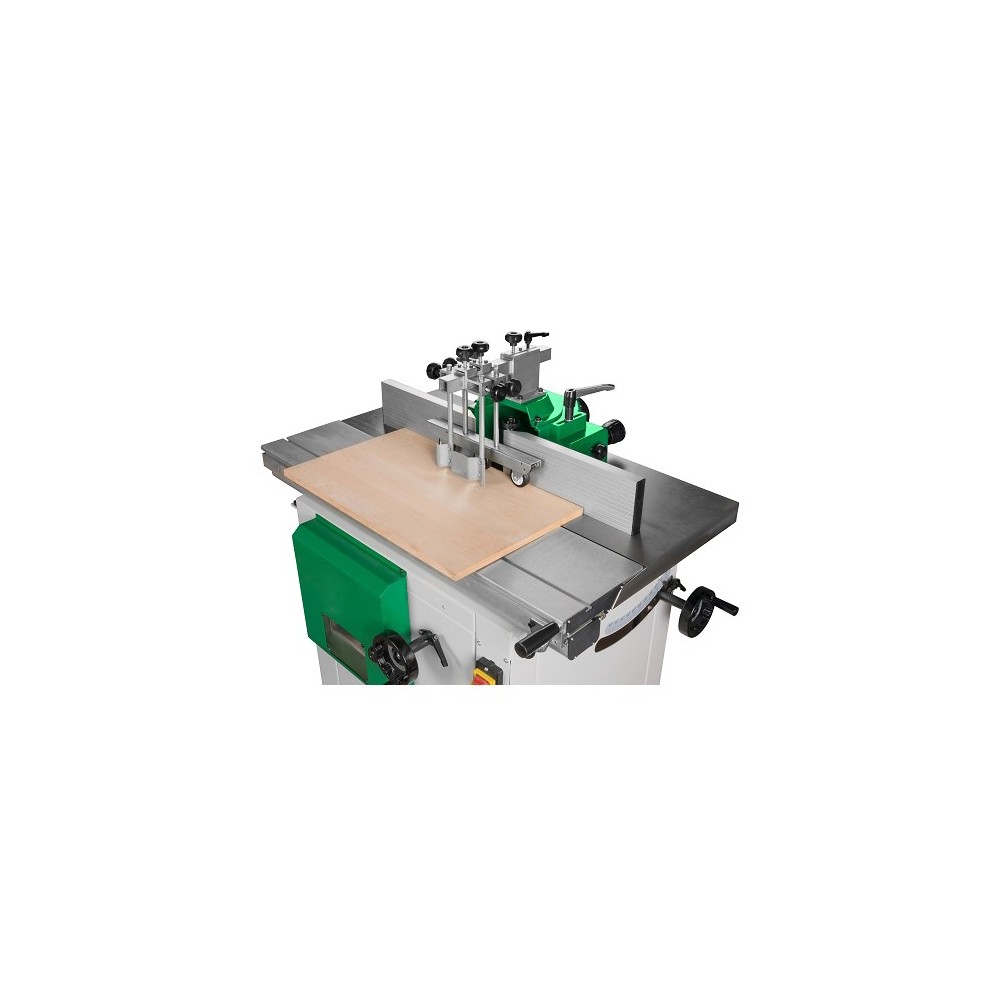

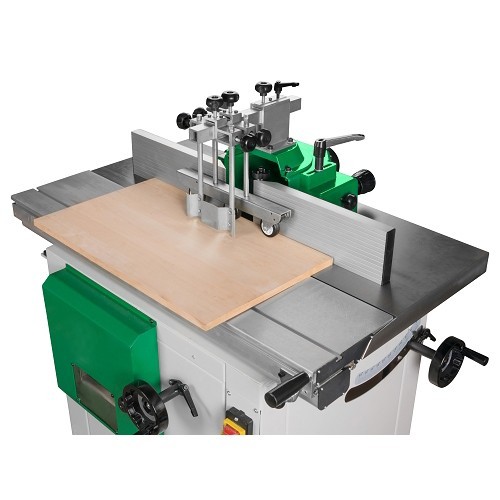

  • Controlled Feed: The high-quality sliding table is designed to support workpieces of different sizes, ensuring straight and precise movement throughout the entire milling process.

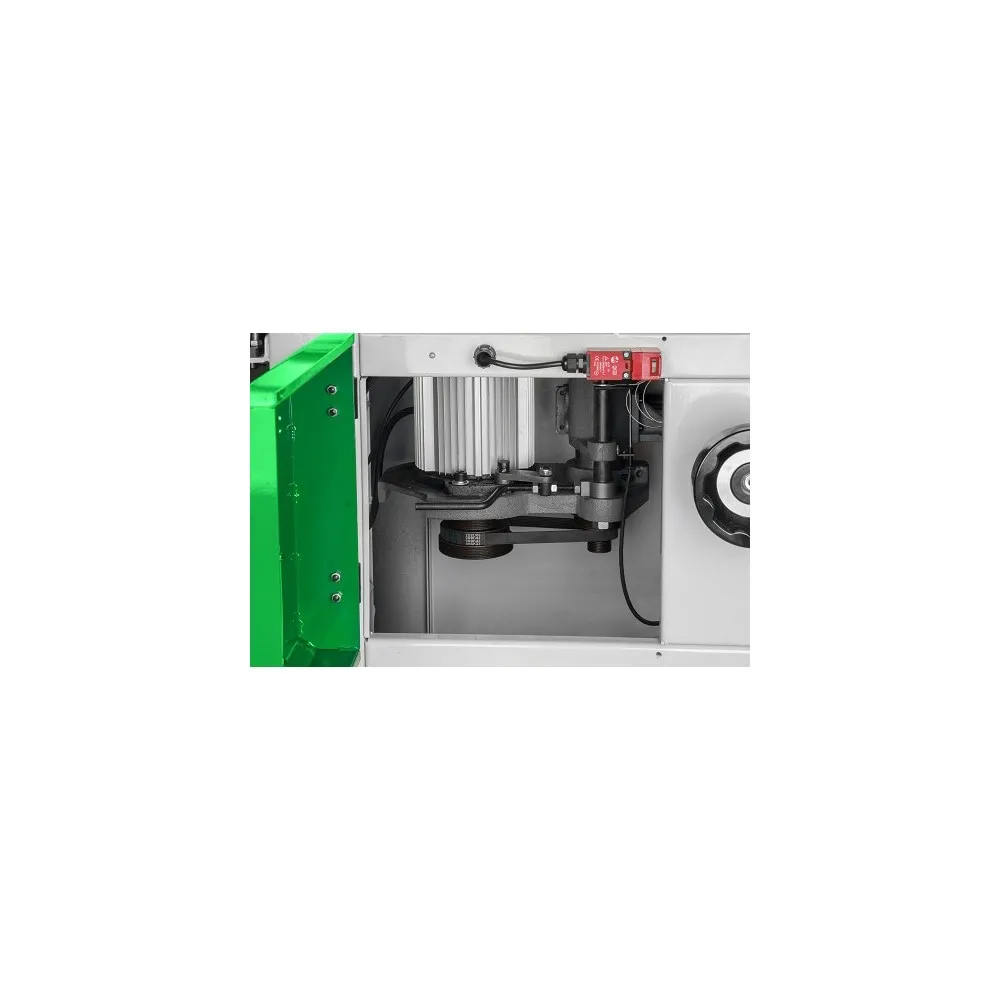

  • Dynamic Speed Regulation: The system allows for quick and easy speed changes via V-belt , with four selectable steps (1800/3000/6000/9000 rpm) to perfectly adapt to the diameter of the tool and the hardness of the material.
  • Anti-Vibration Structure: The large worktop (1000x360 mm) is made of heavy cast iron, a choice that cancels out torsional vibrations and guarantees constant flatness over time.

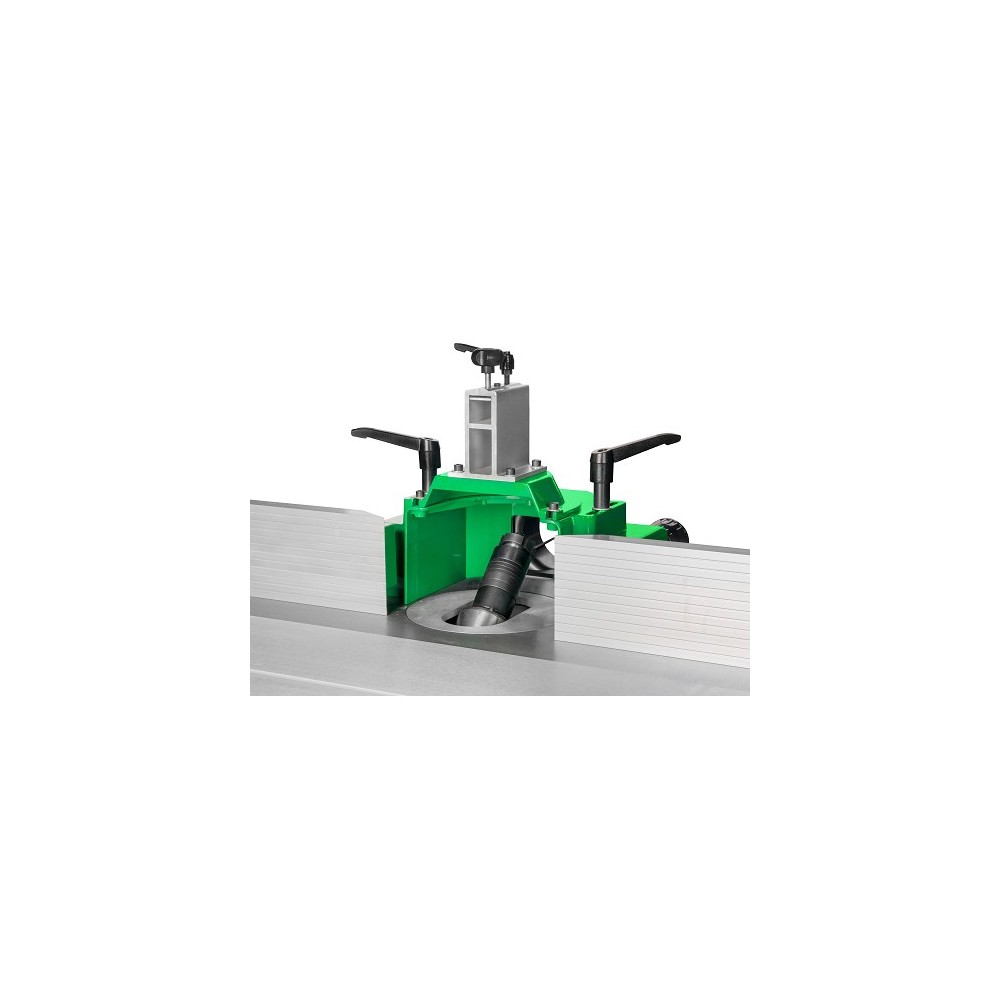

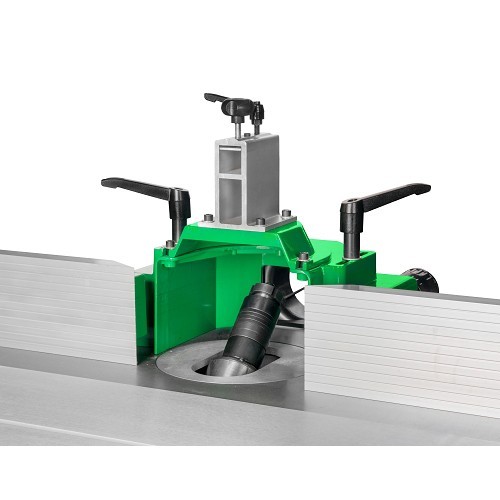

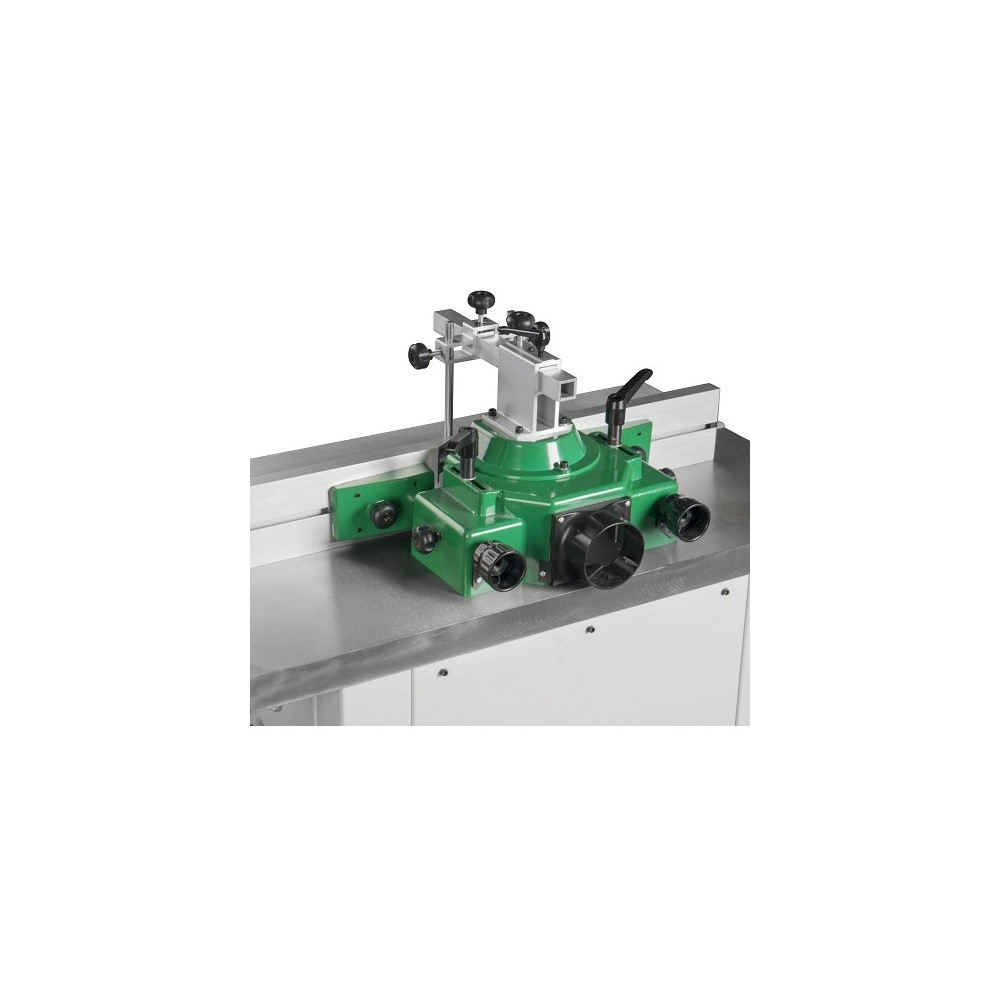

  • Total Control: The machine is equipped with a selector for clockwise or counterclockwise rotation of the spindle and a milling guide with micrometrically adjustable aluminum stops.

Security and Quick Setup

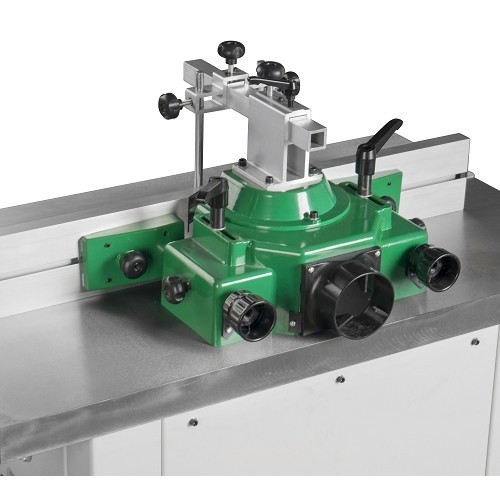

The equipment includes a practical clamping device to secure the workpiece while feeding. The cutter guard and integrated 100 mm extraction nozzle ensure a protected and chip-free work environment.

Technical Reference Data

Characteristic Detail
Product Code 5902000 (HOL5902000)
Table dimensions 1,000 x 360 mm
Table extension included 200 mm
Ø / Spindle stroke 30 mm / 100 mm
Spindle tilt -5° to +45°
Max. tool Ø 180 mm
Spindle speed 1800/3000/6000/9000 rpm
Power supply / Engine power 400 V - 50 Hz / 2.8 kW
Ø Suction nozzle 100 mm
Net weight 198 kg

Standard Equipment Included:

  • Angle guide.
  • Workpiece locking device.
  • Integrated cutter protection.
