FG 192/PS15 SET SETTING THE VALVE TIMING ENGINES PSA FASANO TOOLS 1.9 D, 2.0 D HDI, 2.2 D HDI

SET PHASE MOTORS PSA 1.9 D, 2.0 D HDi, 2.2 D HDi code FG 192/PS15fasano tools

The perfect timing with the professional equipment: give to the customers of your shop car with perfect performance

Models drive PSA on which to use the kit FG 192/PS15: Xsara; 307; 406; 607; 806; Expert I/II; 807; 206; 306; Boxer; 406 Coupe

Displacement: 1.9 D, 2.0 D HDi, 2.2 D HDi

Engine code: DW8/L3(WJZ), DW10TD(RHY), W10ATED(RHS), W10ATED(RHZ), DW10ATED4/L4(RHT), DW10BTED(RHX),W10JATED4(RHW), DW10TD(RHY), DW10UTD(RHV), W12ATED(4HX), DW12ATED(4HZ), DW12UTED(4HY), DW8(WJY), DW8/L/W3(WJZ), DW8B/L4(WJY)

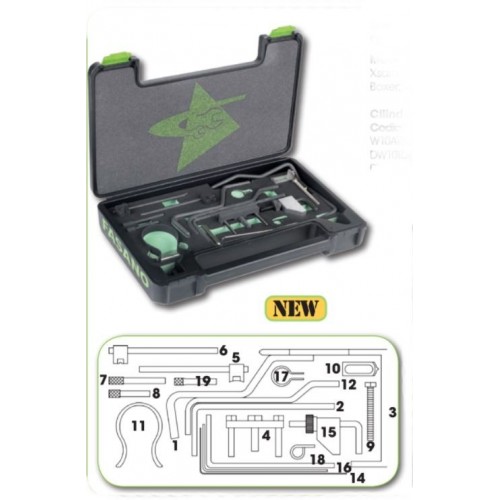

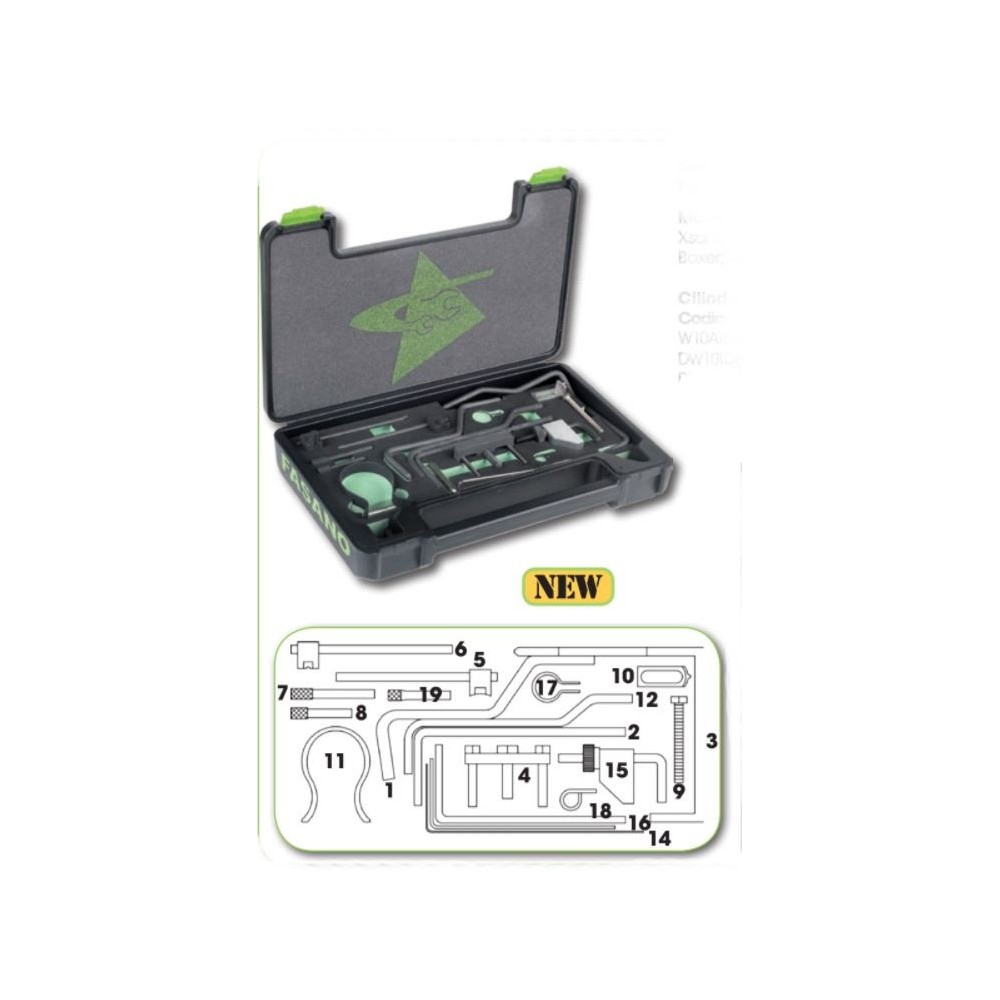

The 19 components of the kit are:

Pin timing flywheel code FG 192/PS15-1

Lock pin flywheel code FG 192/PS15-2

The pin timing of the flywheel - 8 mm code FG 192/PS15-3

Puller crankshaft pulley code FG 192/PS15-4

Tool tension code FG 192/PS15-5

Tool tension code FG 192/PS15-6

Pin timing 8mm code FG 192/PS15-7

Pin timing 6m code FG 192/PS15-8 m

Bolt M8x80mm code FG 192/PS15-9

Tool and the flywheel locking code FG 192/PS15-10

Clip timing belt code FG 192/PS15-11

The pin timing of the flywheel code FG 192/PS15-12

The tool and the centering of the pinion shaft motor code FG 192/PS15-13

Clamping bolt of the belt tensioner code FG 192/PS15-14

Clamp the timing belt code FG 192/PS15-15

Tool clamping belt tensioner pulley auxiliary organs code FG 192/PS15-16

The tool and the centering of the pinion shaft motor code FG 192/PS15-17

Pin timing flywheel code FG 192/PS15-18

Lock pin camshaft code FG 192/PS15-19

The whole range of the kit adjustment is available on Dinamitek
