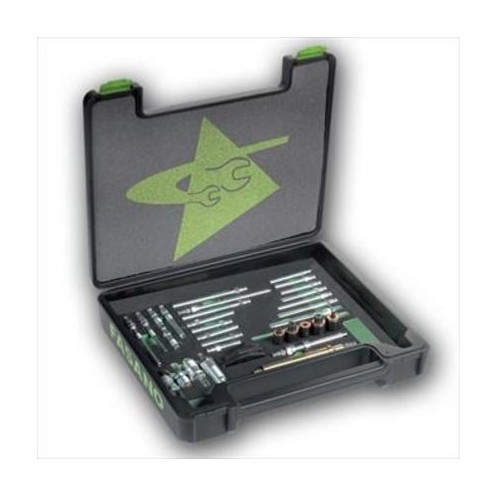

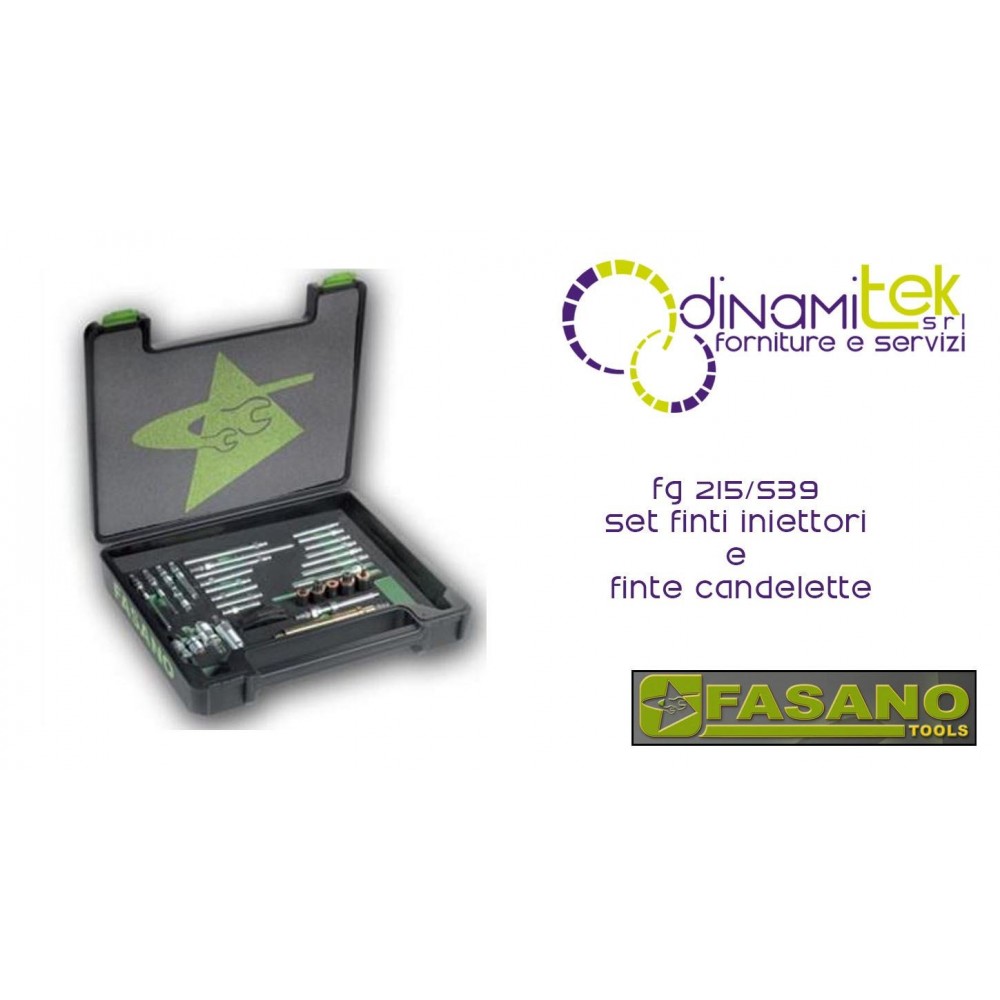

FG 215/S39 SET OF DUMMY INJECTORS AND THE HEATER PLUGS FASANO TOOLS FOR DIESEL SYSTEMS FOR CARS AND HEAVY TRUCKS

Accessory for the tester FG 215 thanks to a series of 22 heater plugs and 4 dummy injectors you can use the tester on any vehicle.

The tester FG-215 is suitable for systems running on Diesel and Gasoline, thanks to the set FG 215/S39, the system becomes universal, expanding the possibilities of performing the test, test compression, test alternator, test battery, even on heavy vehicles and light commercial vehicles.

Connections for heater plugs

FG 215/CA1 Measurement 12x1.25 L/mm 17.5

FG 215/CA2 Measuring 12x1.25 L/mm 20.0

FG 215/CA3 Measuring 10x1.25 L/mm 28.5

FG 215/CA4 Measure 10x1.25 L/mm 42.0

FG 215/CA5 Measure 10x1.25 L/mm 45.0

FG 215/CA6 Measure 10x1.25 L/mm 44.0

FG 215/CA7 Measure 10x1.0 L/mm 54.0

FG 215/CA8 Measure 10x1.0 L/mm 43.0

FG 215/CA9 Measurement 12x1.25 L/mm 26.0

FG 215/CA10 Measure 10x1.25 L/mm 32.0

FG 215/CA11 Measure 10x1.0 L/mm 35.0

FG 215/CA12 Measure 12x1.25 L/mm 58.0

FG 215/CA13 Measure 10x1.0 L/mm 71.0

FG 215/CA14 Measure 10x1.0 L/mm 59.0

FG 215/CA15 Measure 8x1.0 L/mm 61.0

FG 215/CA16 Measure 10x1.25 L/mm 85.0

FG 215/CA17 Measure 10x1.0 L/mm 80.0

FG 215/CA19 Measure 10x1.25 L/mm 102.0

FG 215/CA20 Measuring 9x1.0 L/mm 88.0

FG 215/CA21 Measurement 10x1.25 L/mm 85.0

FG 215/CA22 Measure 10x1.0 L/mm 73.0

Attacks dummy injectors

FG 215/FI23 Measure 22x1.5 L/mm 43.0

FG 215/FI24 Measure 24x1.5 L/mm 28.0

FG 215/FI25 Measure 20x1.5 L/mm 29.0

FG 215/FI26 Measuring 24x2.0 L/mm 26.0

Available, to complete the kit, you can also purchase the high pressure hose complete with quick coupling for Diesel code FG 215/TU and the set adapters x heavy vehicles, marine and agriculture code FG 215MP/S9
