FG 192/VW8 SET SETTING THE VALVE TIMING ENGINES VAG FASANO TOOLS 1.8/2.0 TFSI 4V (CHAIN)

SET setting the valve TIMING ENGINES VAG 1.8/2.0 TFSi 4V (CHAIN) code FG 192/VW8fasano tools

All the benefits of having a professional tool universal: only one kit for the maintenance of a large fleet of vehicles. With the set FG 192/VW8 can take care of the ignition timing of the engine VAG. Volkswagen, Audi and Skoda. Below are the details of compatible models

VW, models Golf; CC; Golf; Passat; Beetle/Beetle; Eos; Scirocco.
AUDI, model A4; A4; A5 Coupe/Cabriolet; A5 Sportback; Q5; TT
SKODA, model Octavia II, Superb; Yeti

Cubic Capacity: 1.8 TFSi; 2.0 TFSi

Engine code: CCZA; CCZB; CCZC; CCZD; CDAA; CDAB; CDHB; CDNC; CFKA; CDNB; CETA; CJEB; CESA; CDHA

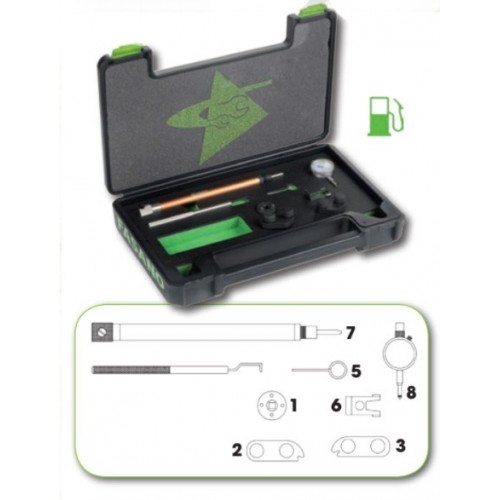

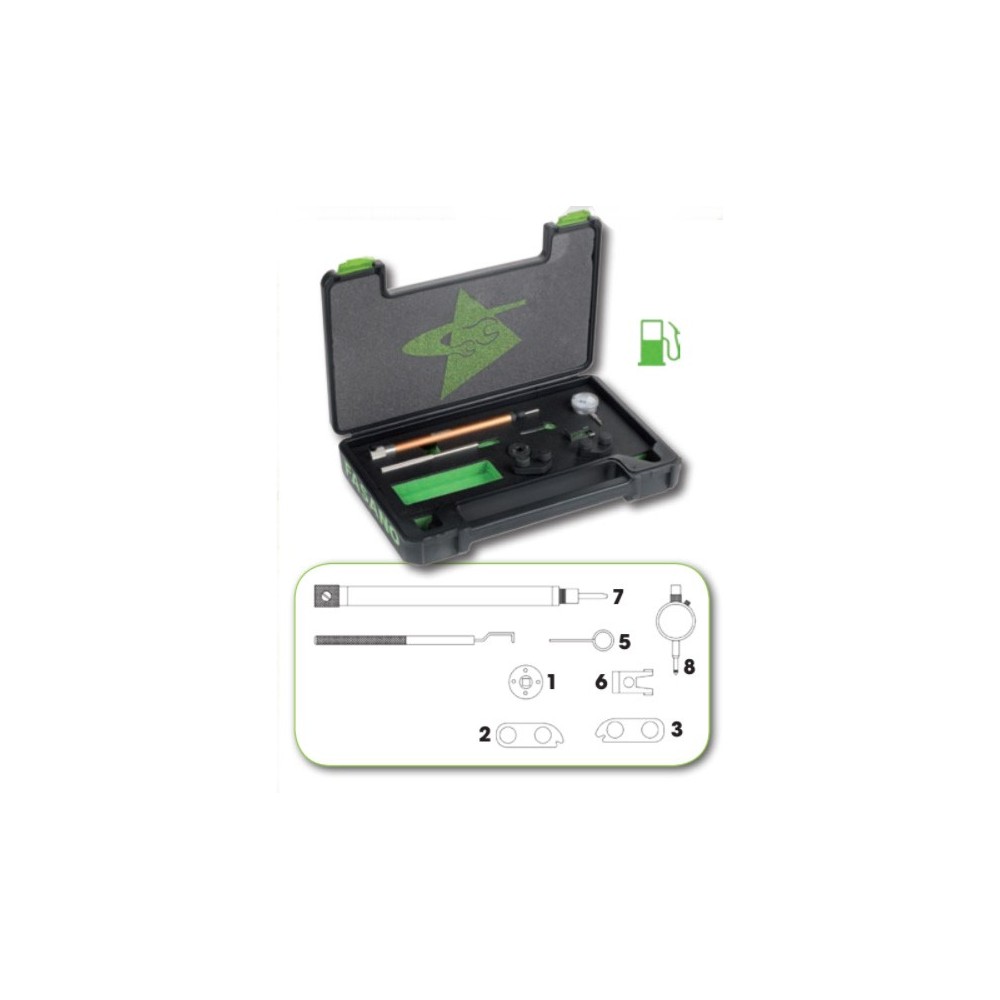

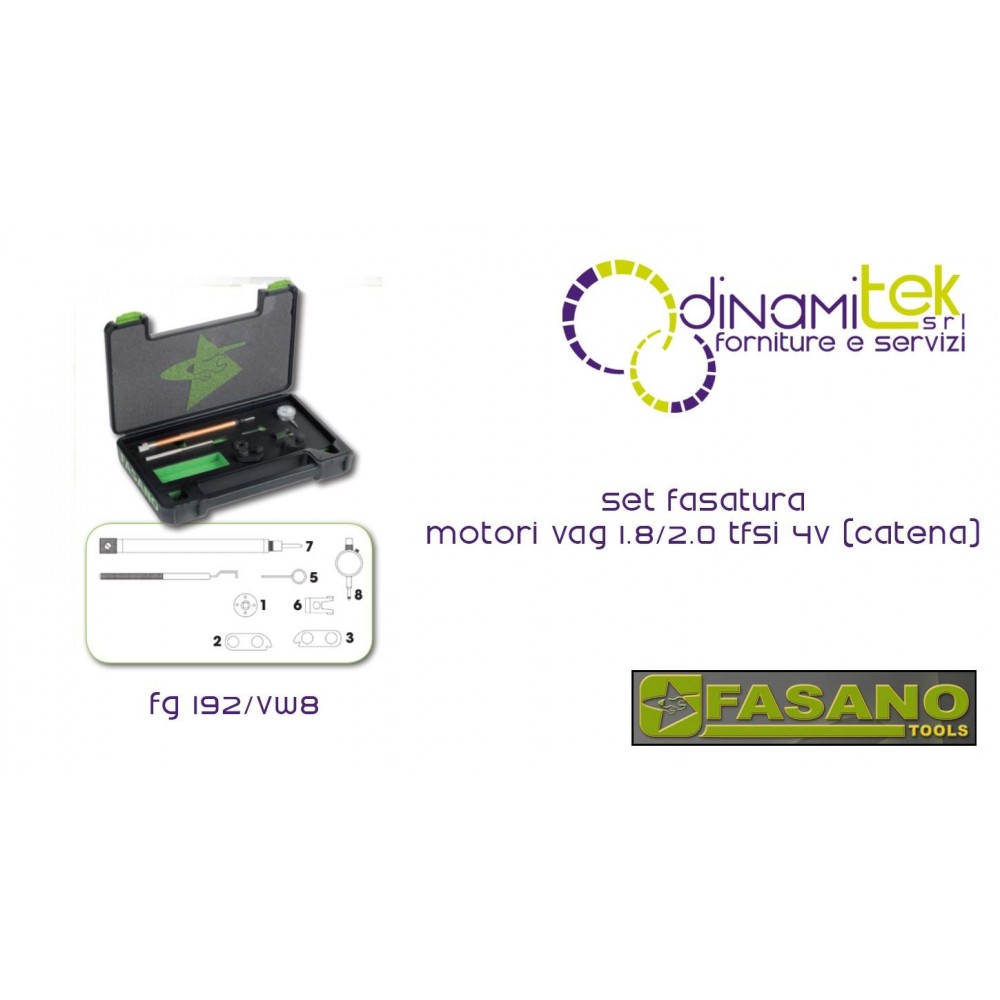

The set consists of 8 tools.

FG 192/VW8-1 Tool, removal, control valve camshaft

FG 192/VW8-2 Clamp camshaft (exhaust)

FG 192/VW8-3 Clamp camshaft (intake)

FG 192/VW8-4 lock Pin tensioner oil pump

FG 192/VW8-5 locking Bolt of the tensioner 1.4 mm

FG 192/VW8-6 timing chain Tensioner

FG 192/VW8-7 Gauge PMS

FG 192/VW8-8 Comparator

Available to find the tool lock crankshaft pulley VAG 1.8/2.0 TFSi 4V (CHAIN) to link to the kit FG 192/VW8 code FG 192-VW8B.

For the timing of other car models that we identify with certainty the kit phase suitable with the tool TOOL FINDER that you find on the site fasano tools. All kit setup phase are available on the catalog Dinamitek
