FG 192/VW14 SET SETTING THE VALVE TIMING ENGINES VAG & FORD FASANO TOOLS

SET setting the valve TIMING ENGINES VAG ' FORD code FG 192/VW14fasano tools

For different car models, a professional tool universal for the commissioning phase motors VAG ' FORD. With the set FG 192/VW14 can take care of car Volkswagen, Audi, Seat, Skoda, Ford. Practically with a single tool covers a vast part of the car market, the perfect solution for your car repair.

Here is the detail of vehicles to operate on the set with FG 192/VW14:

Volkswagen model Transporter, Caddy, Golf, Golf Estate, Passat, Polo, Polo Classic, Polo Estate, Sharan, Vento, Bora, Beetle, Lupo

Audi model 80, 90, 100, A6, A3, A4,A8, Allroad

Seat model Cordoba, Ibiza, Toledo, Alhambra, Inca, Arosa

Skoda model Felicia Van, Pick,Up, Octavia, Octavia Tour, Fabia

Ford Galaxy model

Capacity: 1.2 D TDI PD, 1.4 D TDI PD, 1.6, 1.6 D, 1.6 D TURBO,1.7 D SDI, 1.8, 1.8 TURBO, 1.9 D, 1.9 D TURBO,1.9 D TDI, 1.9 D TDI PD, 2.0, 2.4 D, 2.5 D TDI, 2.5 D SDI, 3.7,4.2

Engine codes: 1X, 1Y, 1Z, AAB, AAT, AAZ, ABL, ABZ, ACE,ACV, ADP, ADR, AEB, AEF, AEL,AEY, AEW, AFB, AFF, AFN,AGD, AGP, AGR, AGX, AHB, AHC, AHD, AHFS, AHH, AHL, AHU, AJA, ARB, AKE, AKN, AKU, AKW, ALE, ALH, ALT, AMF, ANU, ANY, AQM, ARL, ASV, ASX, DISK, ATD, ATJ, AUY, AVB, AVF, AVG, AVJ, AWX, AXR, AYM, AYZ, BAY, CY, JK, RA, SB,

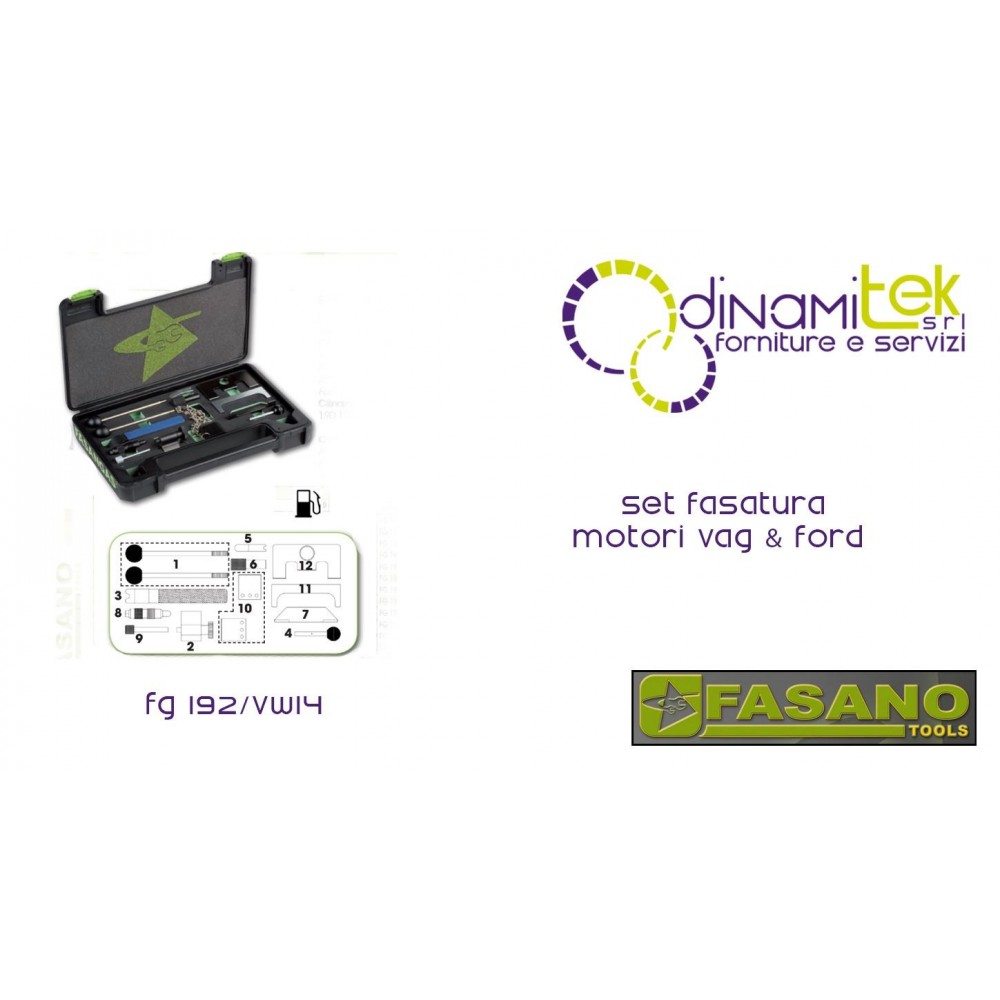

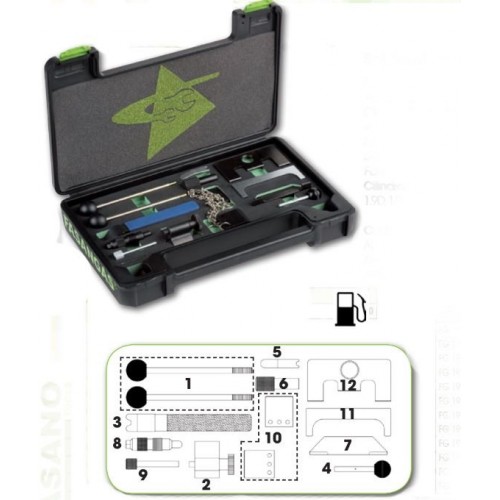

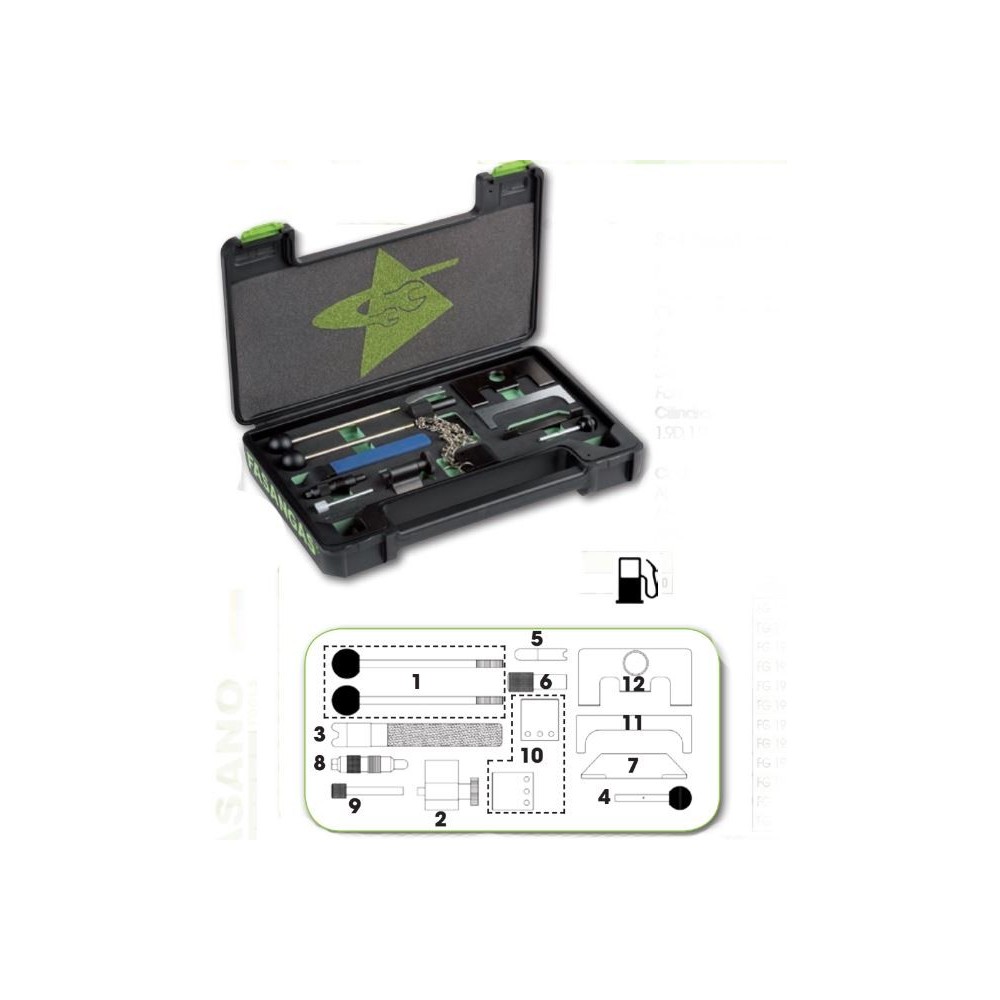

The kit setup phase is composed of 12 tools, here is the detail

Guide 8 mm (2 pcs) code FG 192/VW14-1

Tool clamping of the pinion shaft motor code FG 192/VW14-2

Key two teeth code FG 192/VW14-3

Tool locking camshaft code FG 192/VW14-4

Key locking the tensioner code FG 192/VW14-5

Locking pin of the pinion injection pump code FG 192/VW14-6

Locking bar camshaft code FG 192/VW14-7

Tool crankshaft locking code FG 192/VW14-8

Locking pin code FG 192/VW14-9

Tool alignment camshaft code FG 192/VW14-10

Locking bar camshaft code FG 192/VW14-11

Locking bar camshaft code FG 192/VW14-12

Inside the box you will also find the user manual with the specifications of each individual tool identified for the code.

The whole range of the kit adjustment is available on Dinamitek
