FG 192/PS13 SET SETTING THE VALVE TIMING ENGINES PSA FASANO TOOLS 1.4 AND 1.6 HDI

SET setting the valve TIMING ENGINES PSA 1.4 and 1.6 HDI code FG 192/PS13fasano tools

Kit is put in the professional phase suitable for cars of the PSA group. Peugeot and Citroen with a wide range of vehicle models to be taken care of with a single, fantastic kit, a perfect solution to optimize the equipment of your workshop.

Here is the detail of the vehicles that you can operate with the kit FG 192/PS13

Peugeot model 107, 206, 206 Cc, 207, 307, 307 Cc, 308, 406, 406 Coupe, 407, 607, 806, Expert I/II, Expert III, 807

Citroen model Xsara Picasso, Xsara II, C1, C3, C3 Pluriel, C4, C4 Picasso, Grand Picasso, Berlingo/Berlingo First I/II, C5 I, C5 II, C8, Dispatch/Jumpy III, Synergie/Evasion

Cubic capacity: 1,4 D Hdi, 1.6 D Hdi, 1.8, 1.8 16V, 2.0, 2.0 16V, 2.0 Hpi, 2.0 Gti 180/RC, 2.2

Engine code: EW10A(RFJ), EW10D(RLZ),EW10J4(RFR),W10J4L5(RFN), EW10J4S(RFK), EW12J4(3FY/3FZ), EW12J4/5(3FZ),EW7A(6FY),EW7J4(6FZ),9HY/9HZ(DV6TED4), 9HX(DV6ATED4),9HW(DV6BTED4), 9HU(DV6UTED4), DV4TD (8HT/8HX/8HW/8HV/8HY/8HZ)

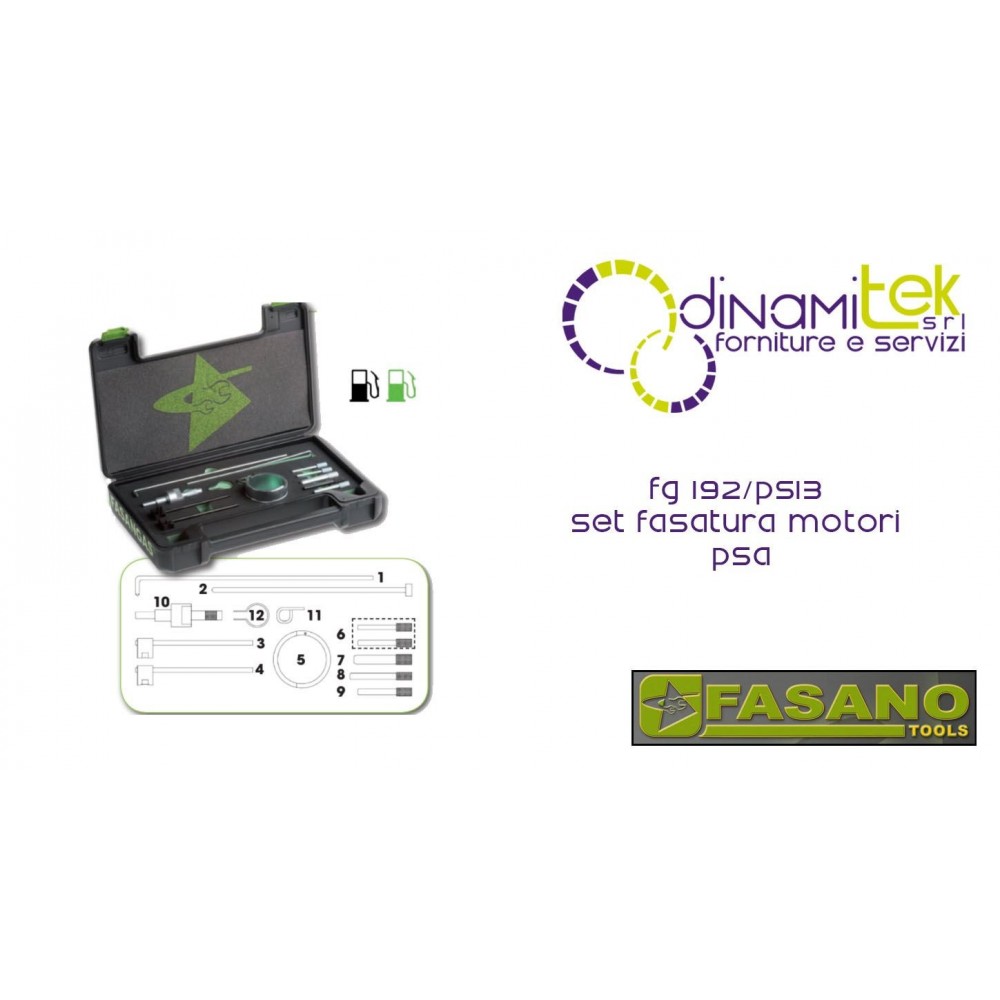

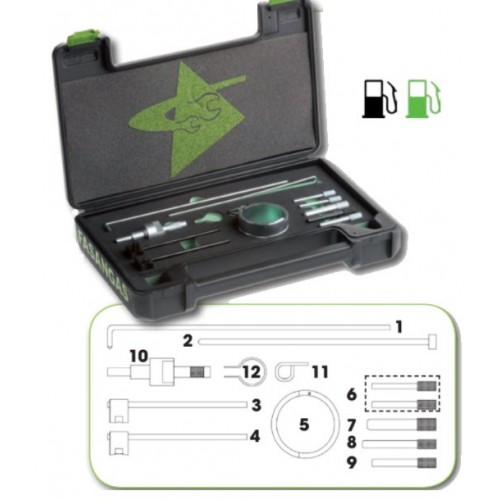

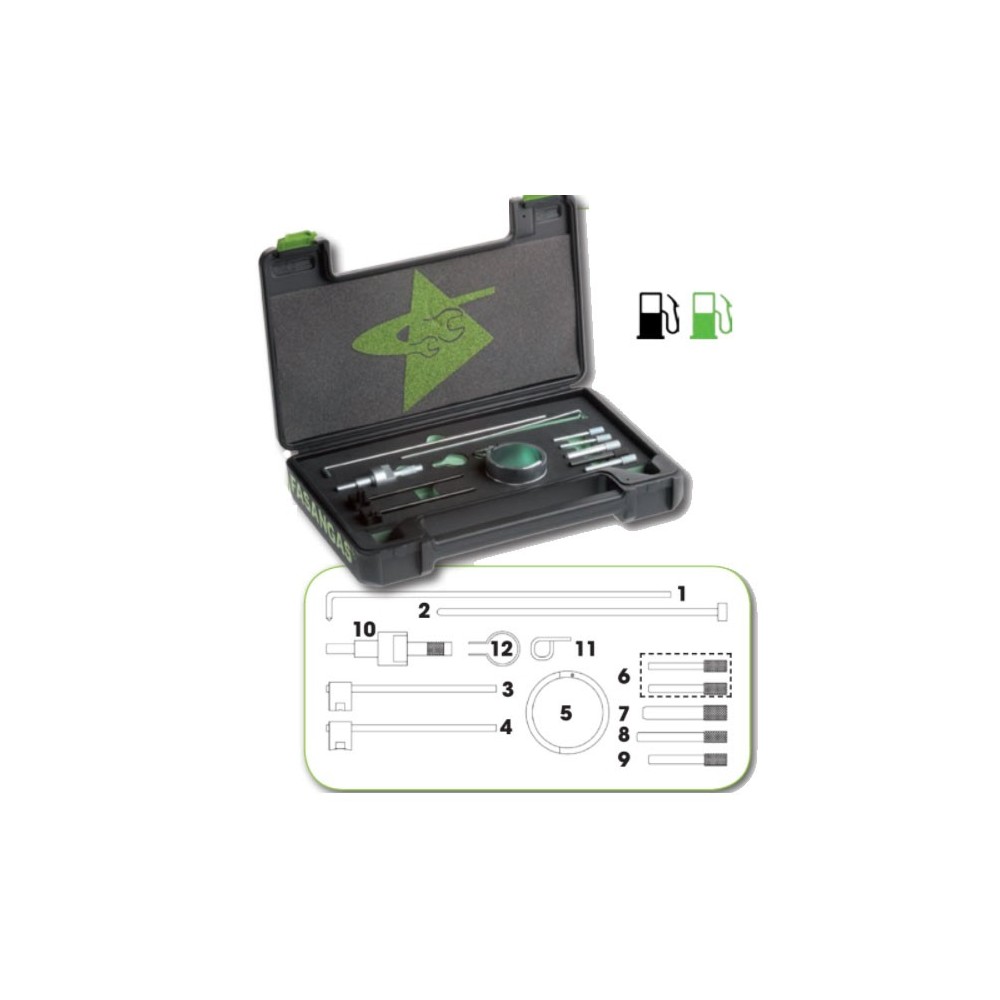

In the kit there are 12 tools, specifically:

Bolt tensioning, code FG 192/PS13-1

Tool for locking the pulley on the tensioner code FG 192/PS13-2

Tool tension code FG 192/PS13-3

Tool tension code FG 192/PS13-4

Tool of registration of the pulley of the belt tensioner code FG 192/PS13-5

Pin wheel code FG 192/PS13-6

Pin wheel code FG 192/PS13-7

Pin wheel code FG 192/PS13-8

Bolt tensioning, code FG 192/PS13-9

Tool for locking the pulley on the tensioner code FG 192/PS13-10

Tool tension code FG 192/PS13-11

Tool tension code FG 192/PS13-12

Included with the kit you will receive the user manual with the specifications for each tool identified for the code. The use of the set phase, therefore, it is very simple
