FG 192/FO24 SET SETTING THE VALVE TIMING ENGINES FORD/MAZDA FASANO TOOLS

SET setting the valve TIMING ENGINES FORD/MAZDA code FG 192/FO24fasano tools

Suitable for vehicles FORD AND MAZDA. The vehicle models on which to use the kit phase FG 192/FO24 is really spacious. Just take a look at the list of models, the displacements and the codes for the engines to understand the universality of this set. A single solution to optimize the most out of your garage and make it really smart.

Here are the details of the vehicles FORD and Mazda on which to use the kit FG 192/FO24

FORD: C-Max, Fiesta, Focus,Focus C Max, Fusion, Transit Connect, Tourneo Connect, Cougar, Puma, Escort, Mondeo, Orion, Kombi, Galaxy

MAZDA: 121(ZQ), 2(DY), 2(DE)

Displacement: 1.25, 1.4, 1.6, 1.8, 2.0, 2.9, 1.4 D, 1.6 D, 1.8 D, 1.9 D, 2.0 D,1.8 D Turbo, 1.8 XR2i, 1.8!, 1.8 D TDCi, 1.4 D TDCi, 1.6 TDCi, 1.9 TDI, 1.9 D TDI PD, 2.0 D TDCi, 2.0 SR150, 2.5 DI/Turbo/TCI

Engine code: AFN, AHU, ANU, AOBA, AODA, AODB, AOWA, DISK, ASZ1, AUY, AZWA, BHDA/B, BHPA , B4A, B4B/B4C, BOA, BRC, BRD/BRE/BRF, BRG, BRV, C9DA/B, C9DC, DHA, DHB, DHC, DHD, EAB, EBDA/C, EDBB, EDBD, EDDB, EDDC, EDDD, EDDF, EYDB, EYDC, EYDD/E, EYDF, EYDG, EYDI, EYDJ, EYPA, EYPCFHA, F6JA, F6JB, F8JA, F8JB, F9DA/B, FHD, FHF, FUJA, FUJB, FXJA, FXJB, FYJA, FYJB, FXDA/C, FYDA/C, FYDB/D, G6DA, G6DB, G6DC, G8DA, G8DB, HCPA, HCPB, HHDA, HHDB, HHJA, HHJB, HJBA, HJBB, HJBC, HJBE, HWDA, HWDB, KKDA, L1T, L1V, L1E, L1G, L1H, L1Y, AND L1K, L1L, L1N/Q, L1W, L1F, LTA/LTC, LTB, MHA, M7JA, M7JB, N4JB, NGA, NGB, NGC, NGD, QQDA, QQDB, QQDC, RDA, RDB, RKC, RKF, RKH, RHJ, RKK, RKA, RKB, RQB, RQC, RDF,RDK, RFM, RFN, RTA, RTB, RTC, RTD, RTE, RTF, RTG, RTH, RTJ, RTK, RTN/RTQ, RTP, RVA, RKD, 1Z, 4AB, 4BC, 4CA, 4CC, 4DA, 4EA, 4FA, 4GA, 4EB, 4EC, 4ED, 4FB, 4FC, 4FD, 4GA, 4GB, 4GC, 4GD, 4GE, 4HB

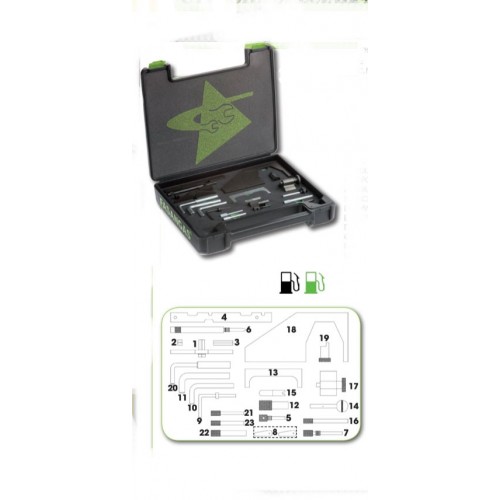

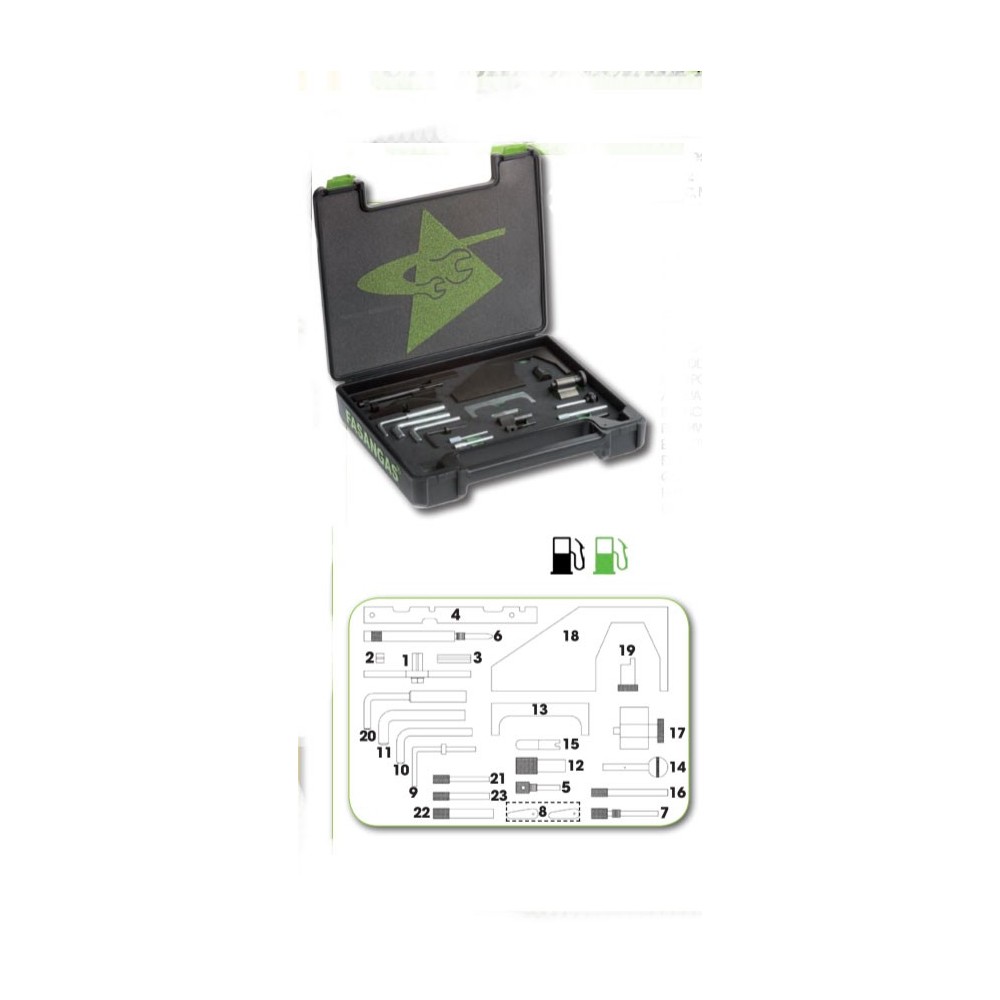

The full kit includes 23 tools and the instruction book is detailed with the specifications of each individual tool identified for the code. Here is the list of the equipment:

Tool and the flywheel locking code FG 192/FO24-1

Adapter for the tool and the flywheel locking code FG 192/FO24-2

Adapter for the tool and the flywheel locking code FG 192/FO24-3

Locking bar camshaft code FG 192/FO24-4

Pin valve timing crankshaft code FG 192/FO24-5

Pin valve timing crankshaft code FG 192/FO24-6

The pin timing of the motor shaft code FG 192/FO24-7

Blocks (2 pcs) code FG 192/FO24-8

Pin on the camshaft's timing code FG 192/FO24-9

Pin on the camshaft's timing code FG 192/FO24-10

The pin timing of the flywheel code FG 192/FO24-11

Locking pin of the pinion injection pump code FG 192/FO24-12

Locking bar camshaft code FG 192/FO24-13

Lock pin injection pump code FG 192/FO24-14

Key two teeth code FG 192/FO24-15

Pin register code FG 192/FO24-16

Tool clamping of the pinion shaft motor code FG 192/FO24-17

Alignment tool camshaft code FG 192/FO24-18

Tool registration sensor crankshaft position engine code FG 192/FO24-19

Tool locking flywheel code FG 192/FO24-20

Alignment tool crankshaft/fuel pump code FG 192/FO24-21

Tool and the flywheel locking code FG 192/FO24-22

Tool locking camshaft code FG 192/FO24-23

The entire range of the set phase is now on Dinamitek, each type of vehicle will find its timing perfect
