FG 192/FO6 SET TIMING FORD ENGINES, VOLVO AND CITROEN FASANO TOOLS

SET TIMING FORD ENGINES 1.4/1.6 TDCi, VOLVO 1.6/2.0, CITROËN 1.6/2.0/2.2 HDi, FIAT 1.6/2.0/2.2 Multijet code FG 192/FO6fasano tools

Tools for the commissioning phase professional, with all the advantage of the wide variety they use. The vehicles can be repaired with this set is very large, an excellent solution to optimize the equipment of your workshop.

Suitable for vehicles:

Ford model C-MAX, Fiesta, Focus, Focus, Focus C-MAX

CITROEN model Dispatch/Jumpy III, C4, C4 Picasso/Grand Picasso, C5 II, C5 III, C6, C8

FIAT model Scudo

VOLVO model C30, C70, S40, S80, V50, V70

Displacement: -1.4, 1.6 TDCi /1.6 HDi, 2.0 HDi, 2.2 HDi / 1.6, 2.0, 2.2 Multijet / 1.6, 2.0

Engine codes: - G8DA, G8DB, G8DC, G8DD, G8DE, G8DF, HHDA, HHDB, F6JA, F6JB, F6JC, HHJA, HHJB, HHJC, HHJD: HHJE, HHJF - 9HU (DV6UTED4), 4HP (DW12BTED4), 4HR (DW12BTED4), 4HR (DW12BTED4), 4HS (DW12BTED4), 4HT (DW12BTED4), RHK (DW10UTED4), RHR (DW10BTED4) - 9H07, 9HU (DV6UTED4), RHK (DW10UTED4), RHR DW10BTED4) - D4164T, D4164T Drive, D4204T, D4204T2

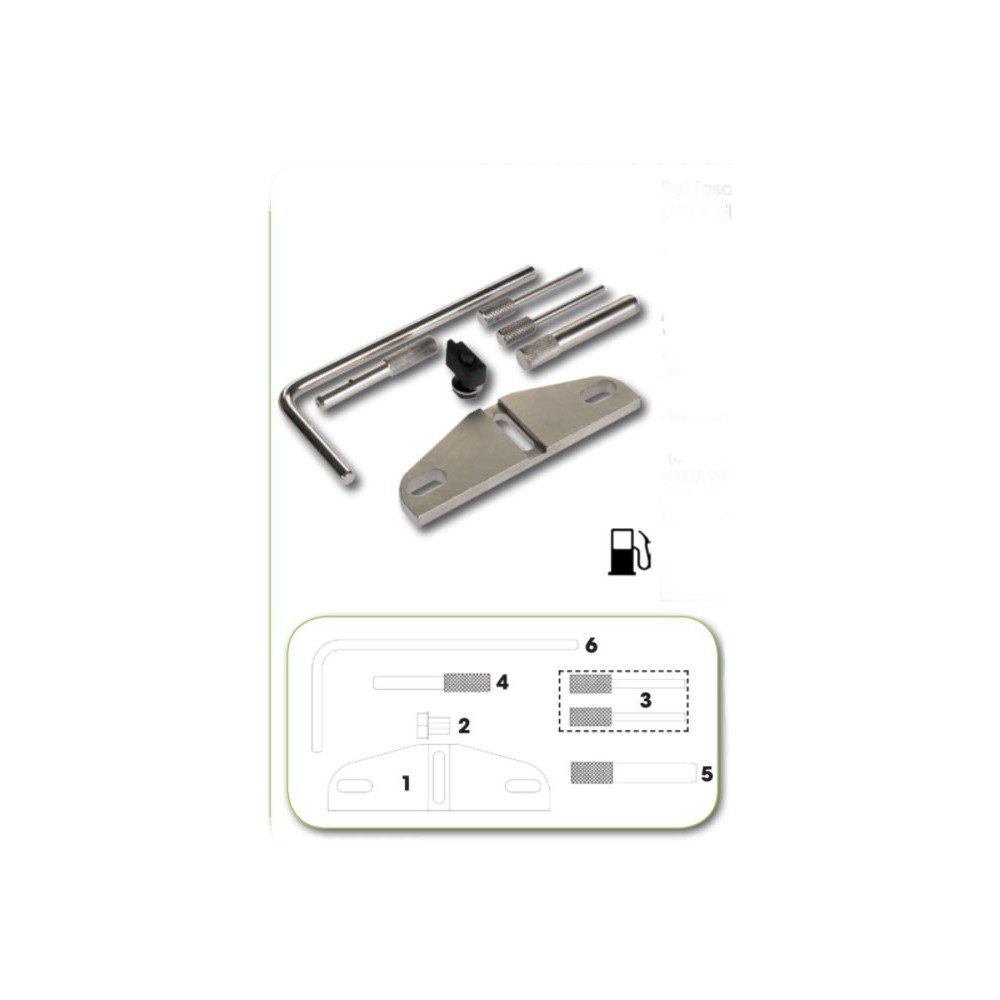

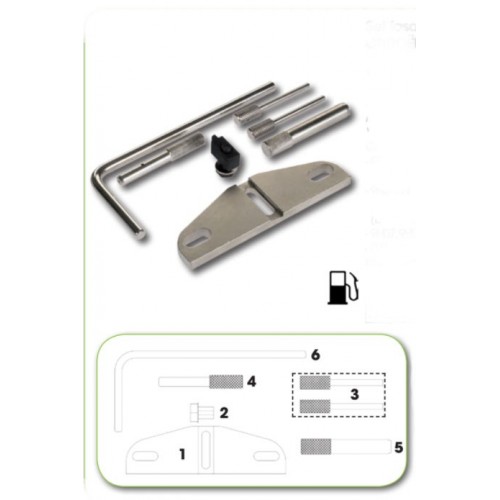

In the kit are compresi6 tools, in detail:

Tool lock the flywheel (the base plate) code FG 192/FO6-1

Tool locking flywheel (adapter) code FG 192/FO6-2

Alignment tool crankshaft/fuel pump 5 ø/mm code FG 192/FO6-3

Tool lock pulley, camshaft 8 ø/mm code FG 192/FO6-4

Tool locking flywheel 11.6 ø/mm code FG 192/FO6-5

Pin timing flywheel code FG 192/FO6-6

The range of the set phase is very wide, to easily identify the kit, suitable for the timing of a specific model of vehicle, just enter the data in the TOOL FINDER that you find on the site fasano tools. All kit timing are available from the catalog Dinamitek
