FG 192/FT6 SET VALVE TIMING FIAT ENGINES FASANO TOOLS 1.3 MULTIJET, 1.3 CDTI, 1.3 DDIS

SET valve TIMING FIAT ENGINES 1.3 Multijet, 1.3 CDTi, 1.3 DDiS code FG 192/FT6fasano tools

Set timing to drive multi-brand. Suitable for all the most popular city car. With one tool, you can have your workshop super equipped and ready for the phasing of a large vehicle park. Optimize the equipment has always been an excellent solution for the work in the garage.

The car brands that can be repaired with the kit FG 192/FT6 are

FIAT model Panda, Punto, Idea, Doblo

LANCIA model Musa Ypsilon

OPEL model Agila, Corsa, Combo, Tigra, Meriva, Astra

SUZUKI model Ignis, Swift

Displacement: 1.3 Multijet, 1.3 CDTi, 1.3 DDiS

Engine code: 188A8.000; 188A9.000; 199A2.000; 199A3.000; 169A1.000; 223A9.000; Z13DT; Z13 DTH

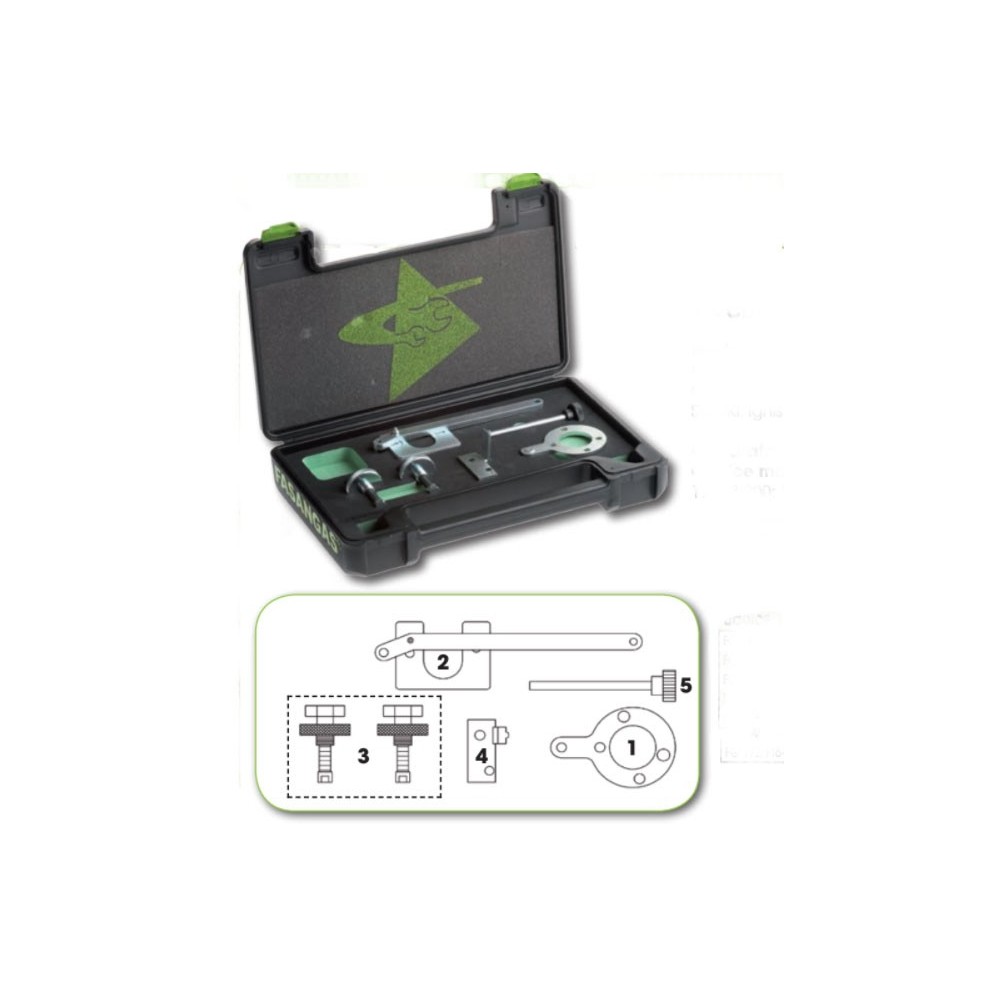

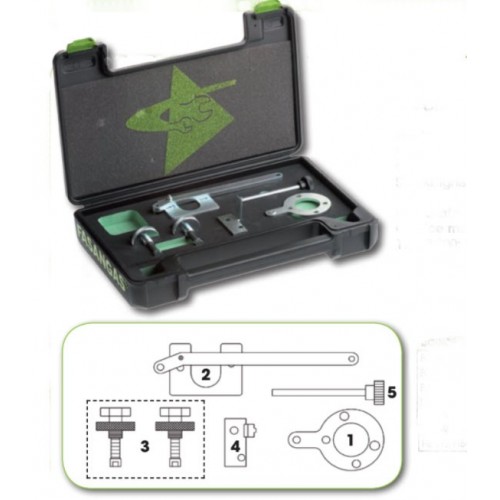

In the kit there are 5 tools in detail:

Tool crankshaft locking code FG 192/FT6-1

Tool chain code FG 192/FT6-2

Tool locking camshaft (2 pcs) code FG 192/FT6-3

Tool locking flywheel code FG 192/FT6-4

Pin 8 mm code FG 192/FT6-5

With the instruction manual where it is explained every single component is identified by the code, the use of the kit, the timing is really simple.

Thanks to the tool TOOL FINDER on the site of fasano tools the identification of the set ignition timing suitable for the specific car models is very simple. All kit setup phase are available in the catalog Dinamitek
