813/8 HOSE REEL SERIES 831 FOR AIR AND WATER 12 BAR ZECA TUBE, MT 12 - DIAM INT PIPE 8 MM
813/8 HOSE REEL SERIES 831 FOR AIR AND WATER 12 BAR ZECA TUBE, MT 12 - DIAM INT PIPE 8 MM Dinamitek 1

813/8 HOSE REEL SERIES 831 FOR AIR AND WATER 12 BAR ZECA TUBE, MT 12 - DIAM INT PIPE 8 MM

HOSE REEL SERIES 831 FOR AIR AND WATER 12 BAR

the tube in the dual-material PVC/PU, matte blue, double layer, with reinforcement in high tenacity polyester
internal diameter of 8 mm 5/16”
length 12 m

Shipping cost: Gratis for
207,48 €
Tax included

207,48 € Tax excluded

Quantity

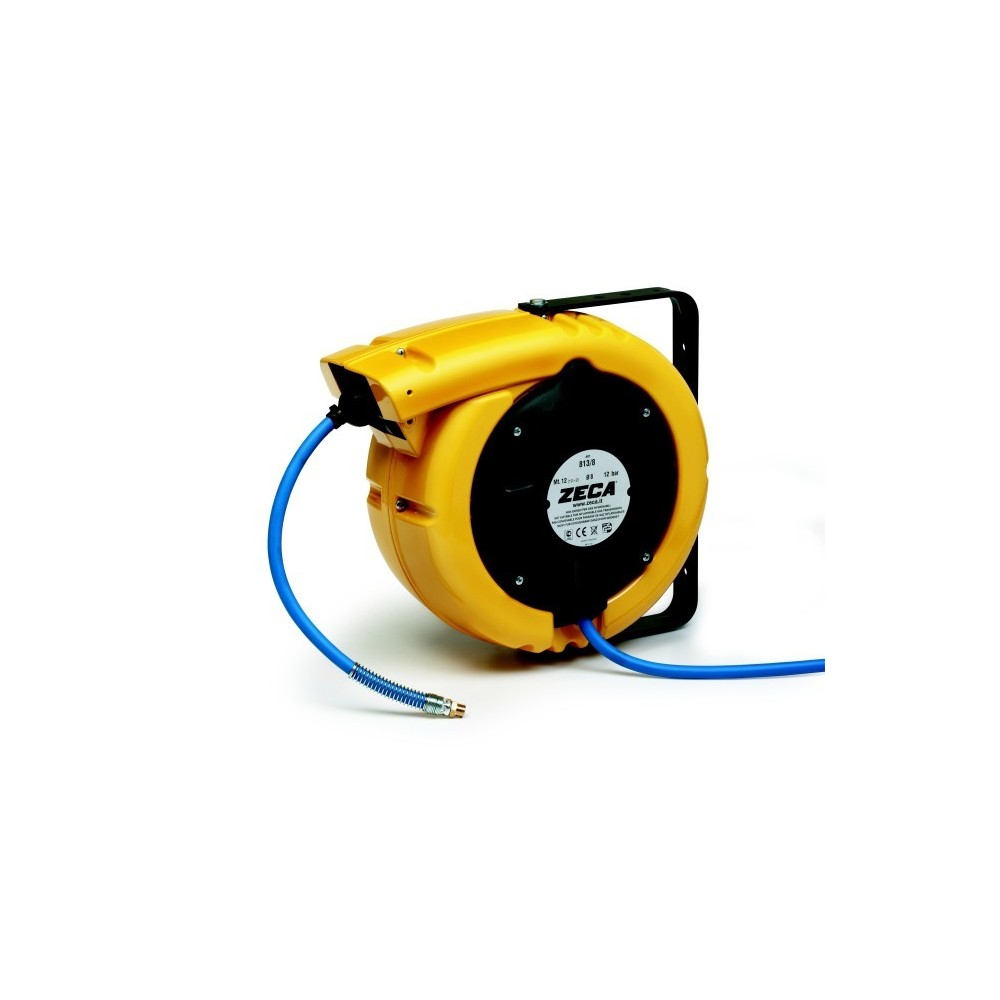

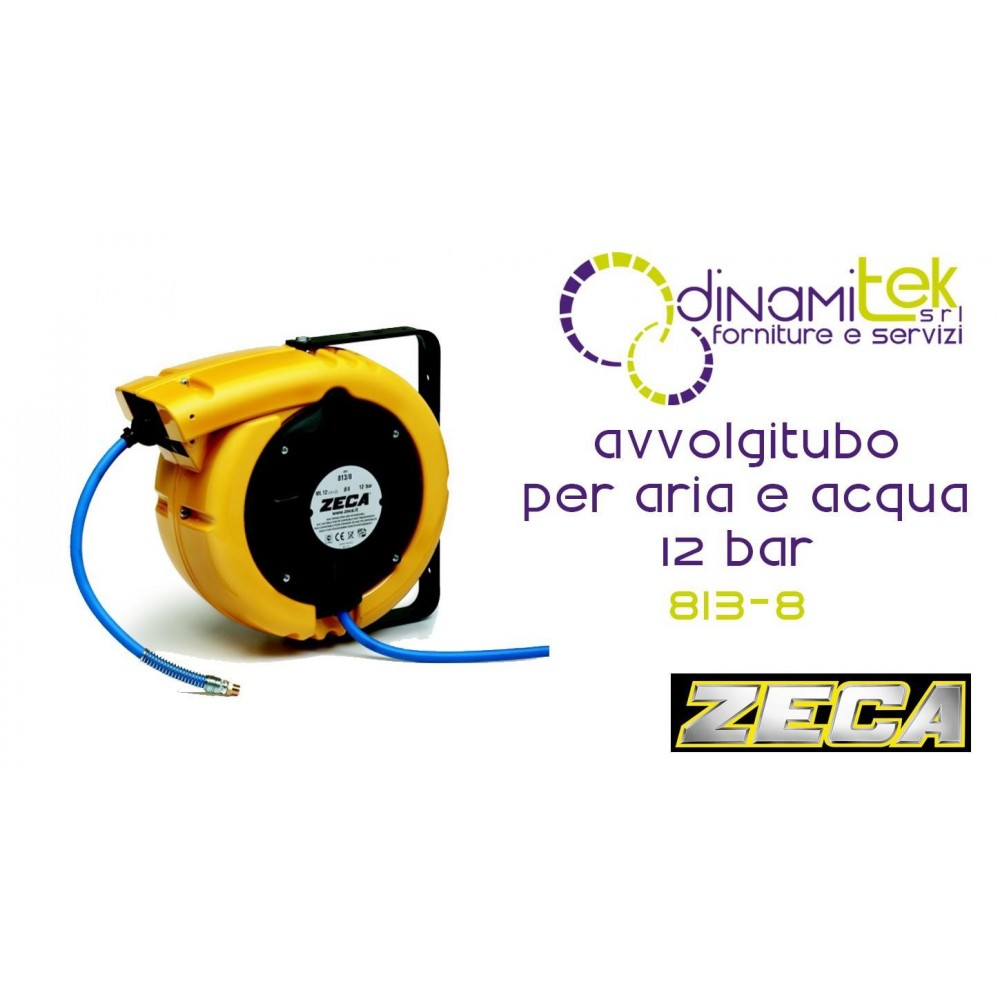

HOSE REEL SERIES 813 FOR AIR AND WATER 12 BAR model 813/8ZECA

The pipe is in the bimaterial PVC/PU, matte blue, double layer, with reinforcement in high tenacity polyester. The inside diameter is 8 mm or 5/16”, the length is 12 m

The hose reel has the structure in die-cast aluminium, epoxy powder coated and is equipped with swing arm, metal

Maximum control of the length of the tube, thanks to the automatic stopping device that can be disengaged if you need to work in

Max pressure: 12 bar

Connector: 1/4” M

Fluid temperature: -5° to +40° C

Fitting inlet: 1/4” M

Piece input: 2 m

Certificate TüV NORD

CE marking

Zeca
Azienda italiana leader del settore delle automotive, offre ottime soluzioni per l'industria


813/8

SERIE 813 ZECA

Download (663.39k)
