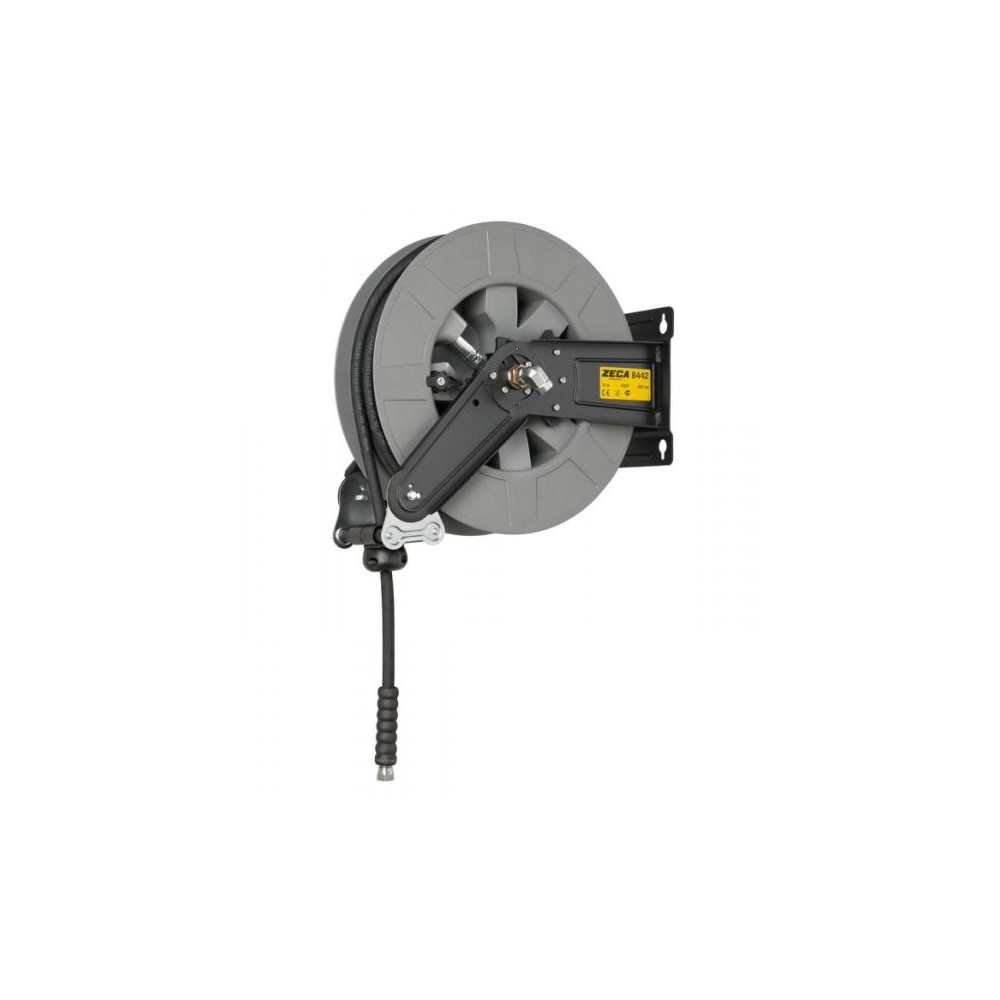

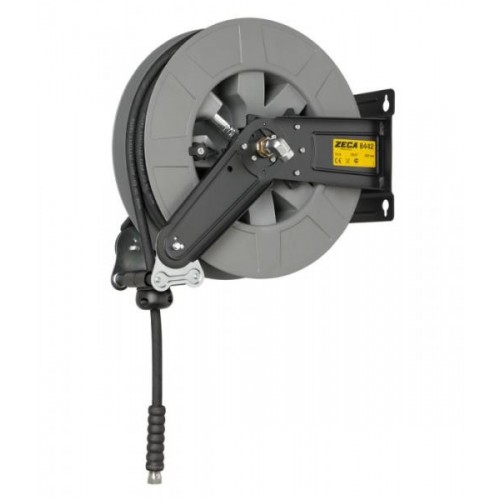

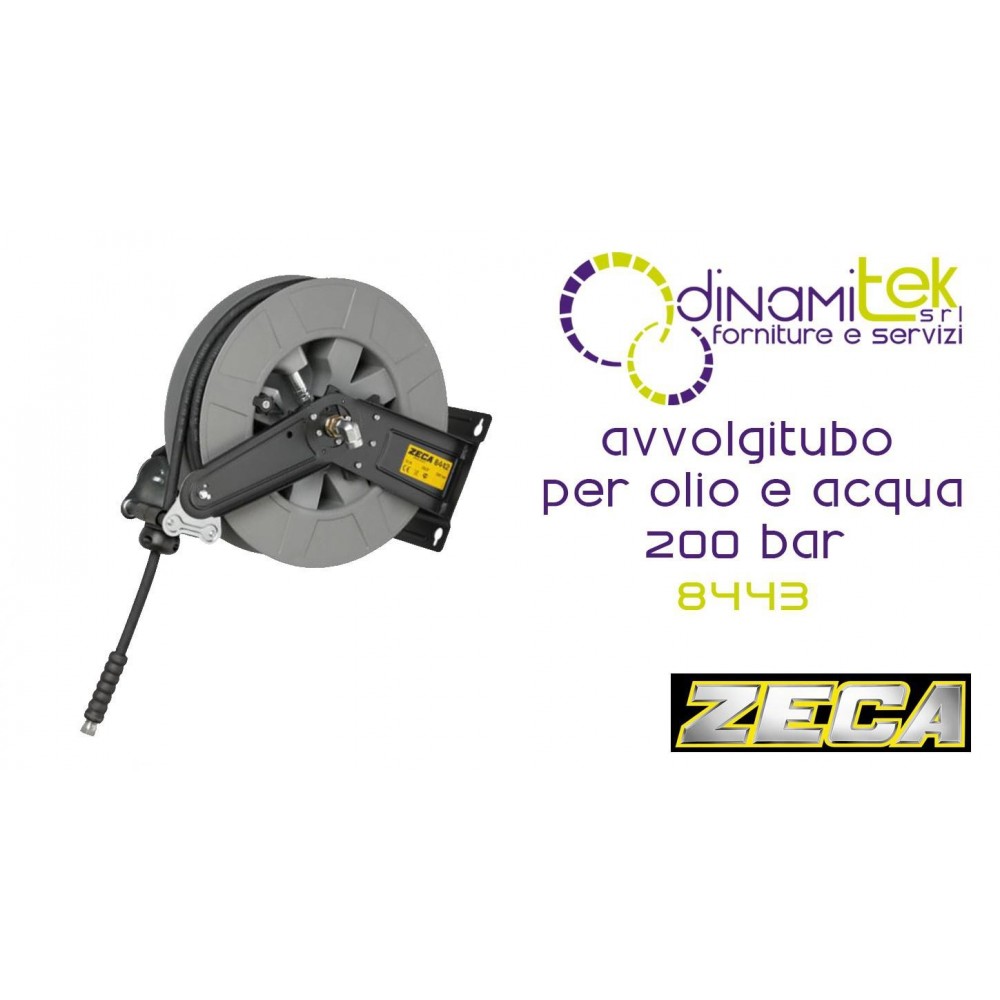

8443 HOSE REEL ZECA SERIES 8400 FOR OIL AND WATER 200 BAR TUBE BLACK M 18 - DIAM INT PIPE 10 MM Dinamitek 1
  • 8443 HOSE REEL ZECA SERIES 8400 FOR OIL AND WATER 200 BAR TUBE BLACK M 18 - DIAM INT PIPE 10 MM Dinamitek 1
  • 8443 HOSE REEL ZECA SERIES 8400 FOR OIL AND WATER 200 BAR TUBE BLACK M 18 - DIAM INT PIPE 10 MM Dinamitek 2

8443 HOSE REELS SERIES 8400 FOR OIL AND WATER 180 BAR ZECA TUBE BLACK M 18 - DIAM INT PIPE 10 MM

HOSE REELS SERIES 8400 FOR OIL AND WATER 180 BAR

Type of tube: EN 857 1SC BLACK diameter 3/8”, Length 18 m

Fluid temperature: -20° to +150° C

Fitting out: 3/8” F

Fitting inlet: 3/8” F

Bracket in steel painted with epoxy powders. The standard coupling. Connector in brass. Steel bolts and screws.

Shipping cost: Free for
383,34 €
Tax included

314,21 € Tax excluded

Quantity
Available product, order it now.

HOSE REELS SERIES 8400 FOR OIL AND WATER 180 BAR model 8443ZECA

Made of steel brackets, epoxy powder coated

The hose reel 8443, ZECA has a rotating joint designed for a low coefficient of friction and to avoid bottlenecks in the pipe as it flows. The support brackets of the coils are in the auto-lubricating material and the coils in the ABS. The spring rewind is built according to the technology MAXIMO PROCESS.

For the browsing of all the mouth-to-reels can be positioned in different configurations; moreover, it is equipped with automatic stop system to get the pipe to a length more suited to the machining. The pad bracket is adjustable: maximum versatility

Type of tube: EN 857 1SC BLACK diameter 3/8”, Length 18 m

Fluid temperature: -20° to +150° C

Fitting out: 3/8” F

Fitting inlet: 3/8” F

CE marking

The directive-compliant
Atex 94/9/EC
II 2GD c IIB T4/T135°C X X X X
N. ro of the Technical Dossier: 8400/ATX/14
N. ro Deposit Receipt Dossier: 43EO00003Organismo Notified of deposit: IMQ (0051)

Size and weight 550x505x270 mm, 10 Kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8443

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
