8424 HOSE REEL ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 20-M - DIAM INT PIPE 10 MM Dinamitek 1
  • 8424 HOSE REEL ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 20-M - DIAM INT PIPE 10 MM Dinamitek 1
  • 8424 HOSE REEL ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 20-M - DIAM INT PIPE 10 MM Dinamitek 2

8424 HOSE REELS SERIES 8400 FOR AIR AND WATER 20 BAR ZECA PIPE IN 20-M - DIAM INT PIPE 10 MM

HOSE REELS SERIES 8400 FOR AIR AND WATER 20 BAR

Type of tube: kpu, 20-foot long with a diameter of 10 mm

Connector: 3/8” M

Connection inlet: ½” F

Bracket in steel painted with epoxy powders. The standard coupling. Connector in brass. Steel bolts and screws.

Shipping cost: Free for
309,4 €
Tax included

253,61 € Tax excluded

Quantity
Available product, order it now.

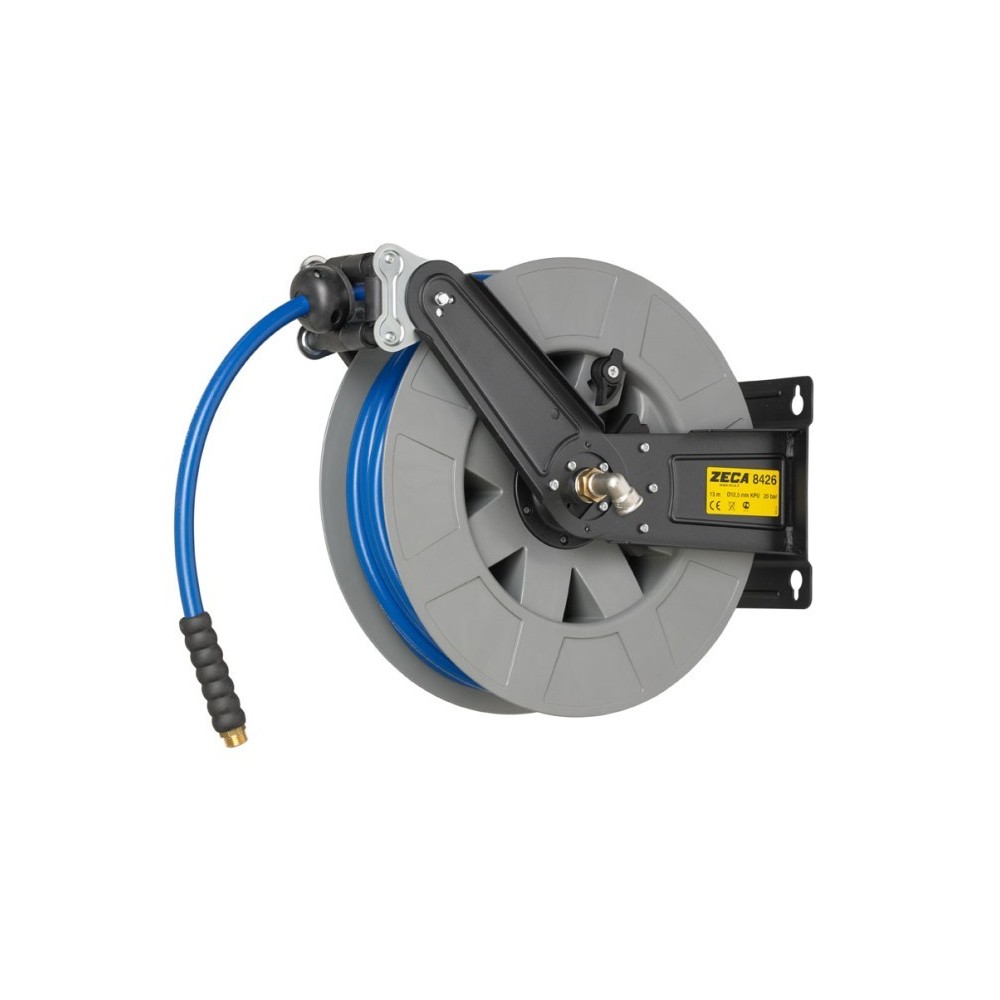

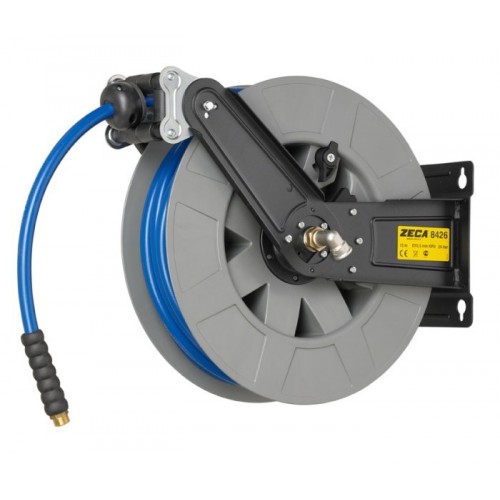

HOSE REELS SERIES 8400 FOR AIR AND WATER 20 BAR model 8424ZECA

Hose reel with steel brackets painted with epoxy powders. Practical locking system of the pipe and the mouth of the rollers can be positioned to best facilitate the sliding of the tube. The pad bracket is adjustable

In detail, the spring to rewind is made with the technology MAXIMO PROCESS. The support brackets of the coils are in the material self-lubricating. The coils are in the ABS. The rotary joint is designed to have a low coefficient of friction and to avoid bottlenecks in the pipe as it flows.

Type of tube: kpu, 20-foot long with a diameter of 10 mm

Fluid temperature: -10° to +50° C

Connector: 3/8” M

Connection inlet: ½” F

CE marking

The directive-compliant
Atex 94/9/EC
II 2GD c IIB T4/T135°C X X X X
N. ro of the Technical Dossier: 8400/ATX/14
N. ro Deposit Receipt Dossier: 43EO00003
The Notified body of deposit: IMQ (0051)

Size and weight 550x505x270 mm, 10 Kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8424

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
