8404 HOSE REELS SERIES 8400 FOR AIR AND WATER 20 BAR ZECA PIPE M 12 - DIAM INT PIPE 10 MM

HOSE REELS SERIES 8400 FOR AIR AND WATER 20 BAR
with steel brackets painted with epoxy powders. The standard coupling. Connector in brass. Steel bolts and screws.
hose: SAE 100 R6, 12 meters long and a diameter of 10 mm

Shipping cost: Free for
270,52 €
Tax included

221,74 € Tax excluded

Quantity
Available product, order it now.

HOSE REELS SERIES 8400 FOR AIR AND WATER 20 BAR model 8404ZECA

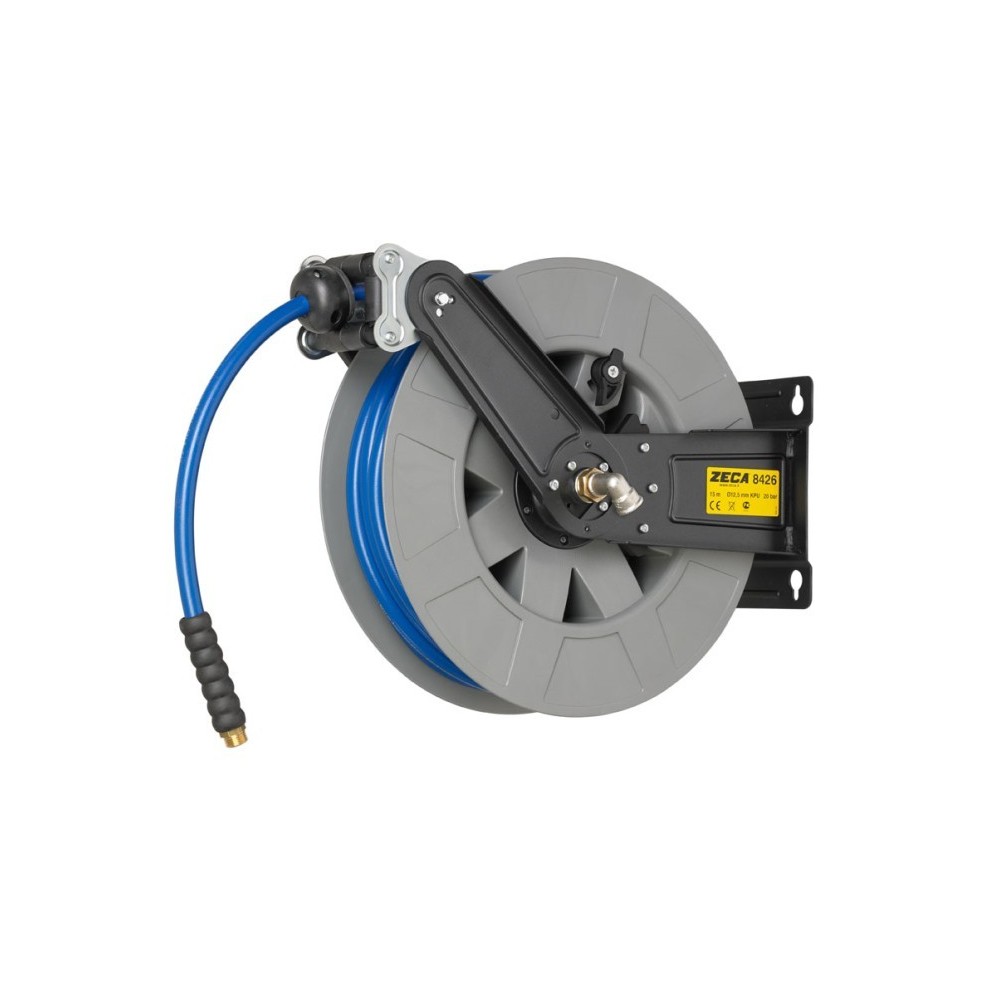

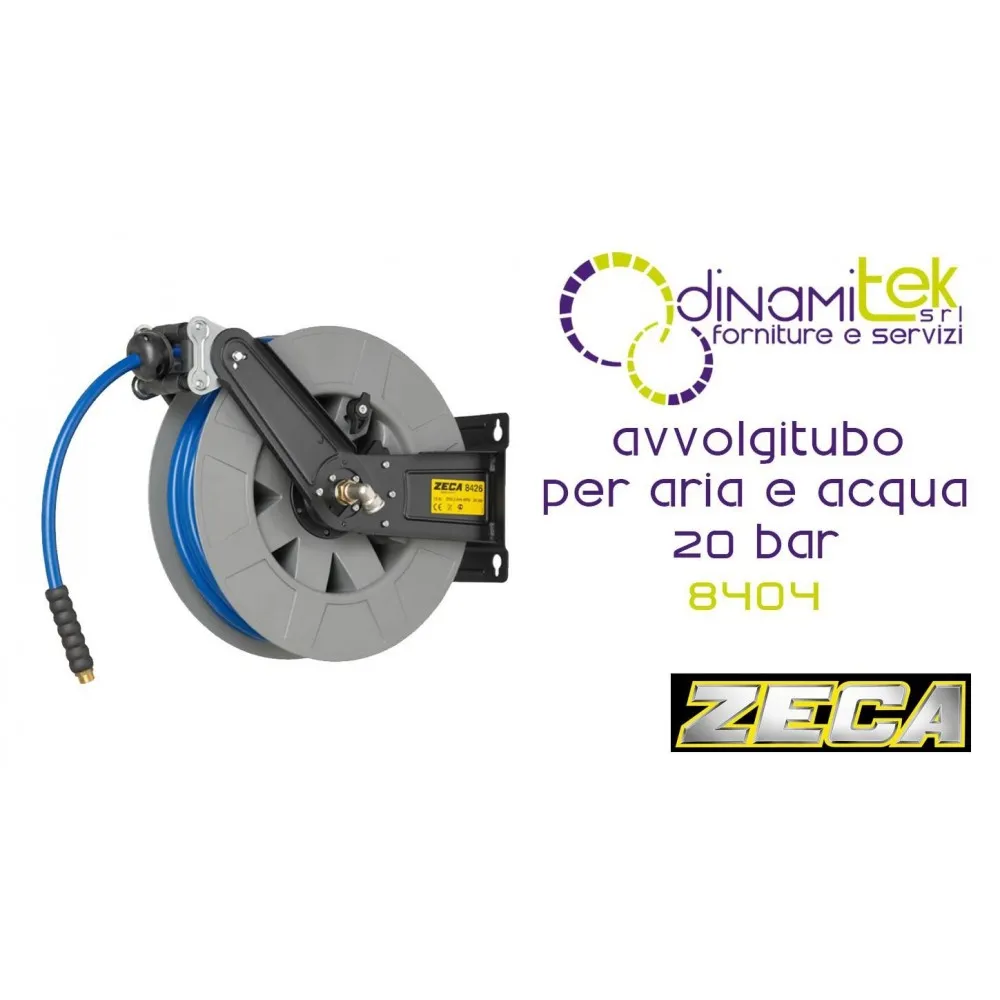

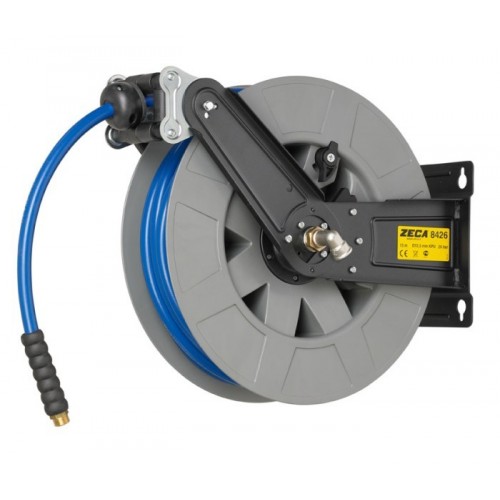

Hose reel with steel brackets painted with epoxy powders. This model has the automatic stop system of the tube to lock the roll to the length most appropriate to the work that is going to run. To facilitate the carrying out and rewinding of the hose, the mouth is the rollers is positionable; also the buffer bracket is adjustable.

Type of hose: SAE 100 R6, 12 meters long and a diameter of 10 mm

Fluid temperature: -20° - +100° C

Connector: 3/8” M

Connection inlet: ½” F

CE marking

Detail of the hose reel
technology MAXIMO PROCESS for the spring rewind
auto-lubricating material for the bearings support coils
the coil in the ABS
the rotary joint with a very low coefficient of friction and bottlenecks;

The directive-compliant
Atex 94/9/EC
II 2GD c IIB T4/T135°C X X X X
N. ro of the Technical Dossier: 8400/ATX/14
N. ro Deposit Receipt Dossier: 43EO00003
The Notified body of deposit: IMQ (0051)

Size and weight 550x505x270 mm, 10 Kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8404

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
