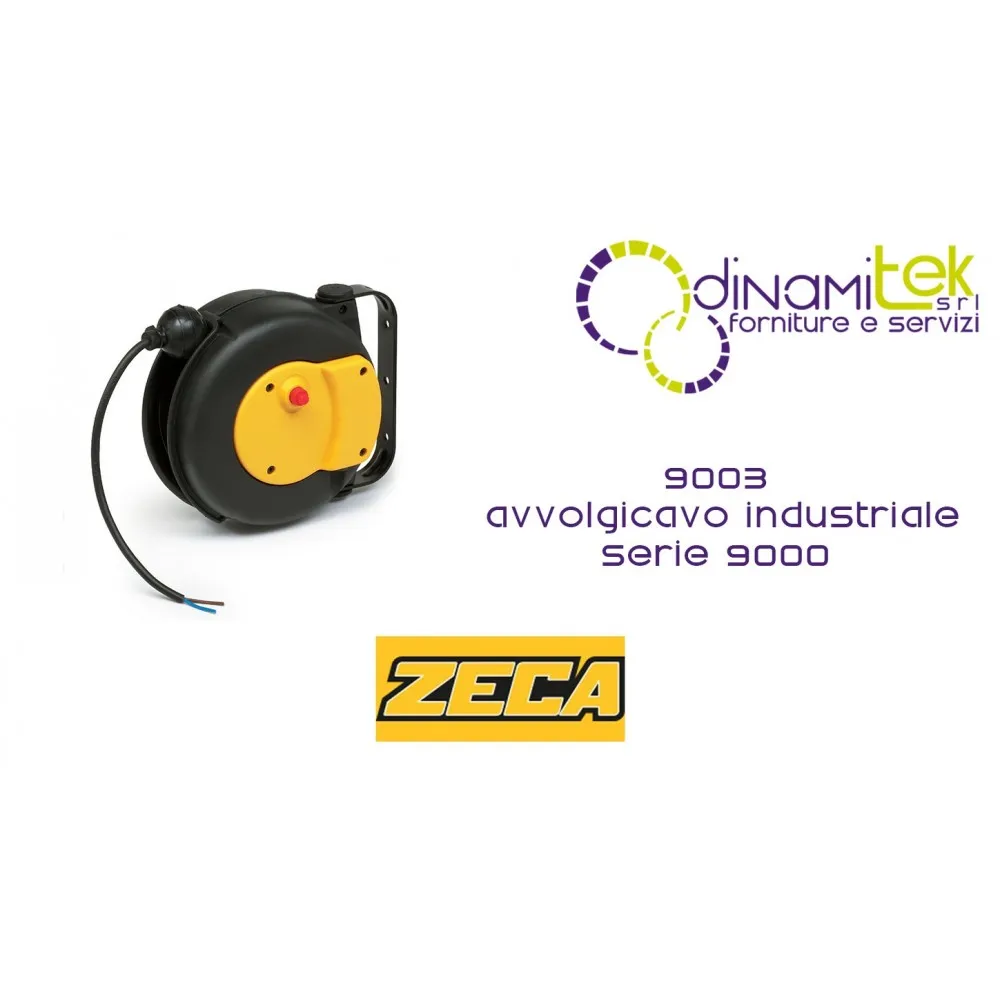

9003 9000 SERIES INDUSTRIAL CABLE REEL, 6+1 M - CABLE CROSS-SECTION 3G X 1 MMQ ZECA

INDUSTRIAL CABLE REEL 9003 SERIES 9000 Zeca

  • Number of conductors 3 G
  • Conductor section 1
  • Cable length (m) 6+1
  • KW Wrapped Cable 1.1 @230V
  • KW Unwound Cable 1.6 @230V
  • Maximum current (A) 1.1
  • Cable type H05VV-F
  • Cable diameter (mm) 6.5
Shipping cost: Free for
116,64 €
Tax included

95,61 € Tax excluded

Quantity
Available product, order it now.

INDUSTRIAL CABLE REEL 9003 SERIES 9000 Zeca

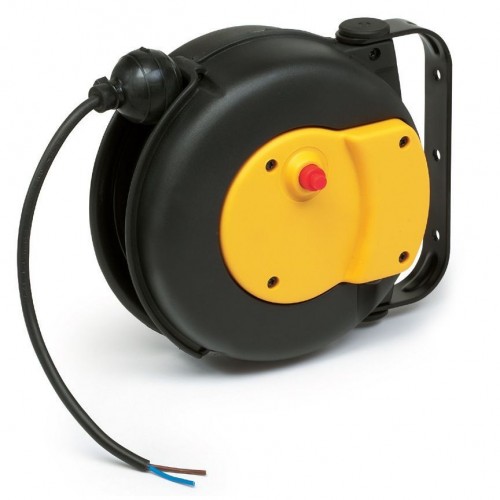

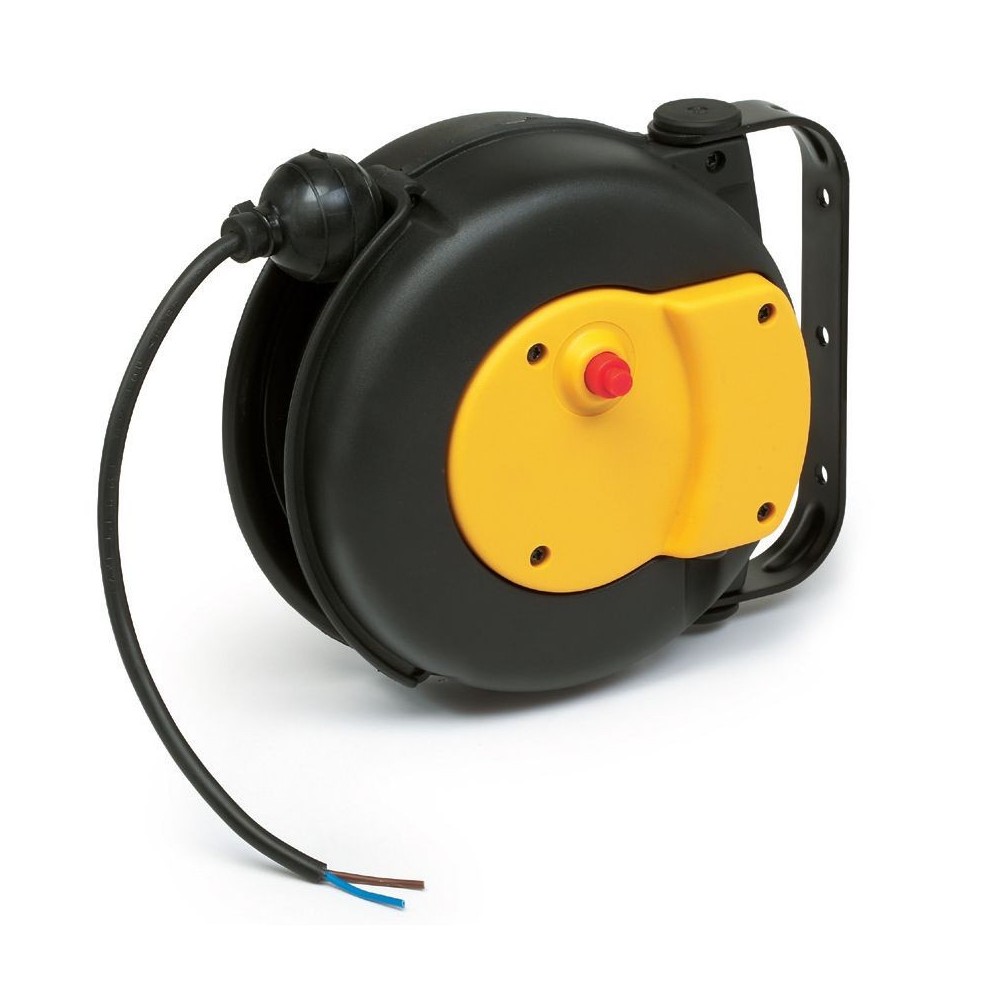

Mini industrial cable reel with shockproof plastic body.

Thanks to the rack-type cable stop device, you can decide whether to work with the cable under tension (by deactivating it) or whether to insert the stop (every 50 cm).

This model has sliding contacts with collector ring and brushes.

The 9003 industrial cable reel has double earth contact.

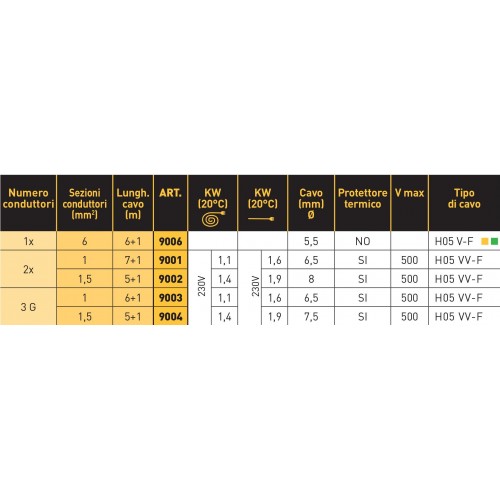

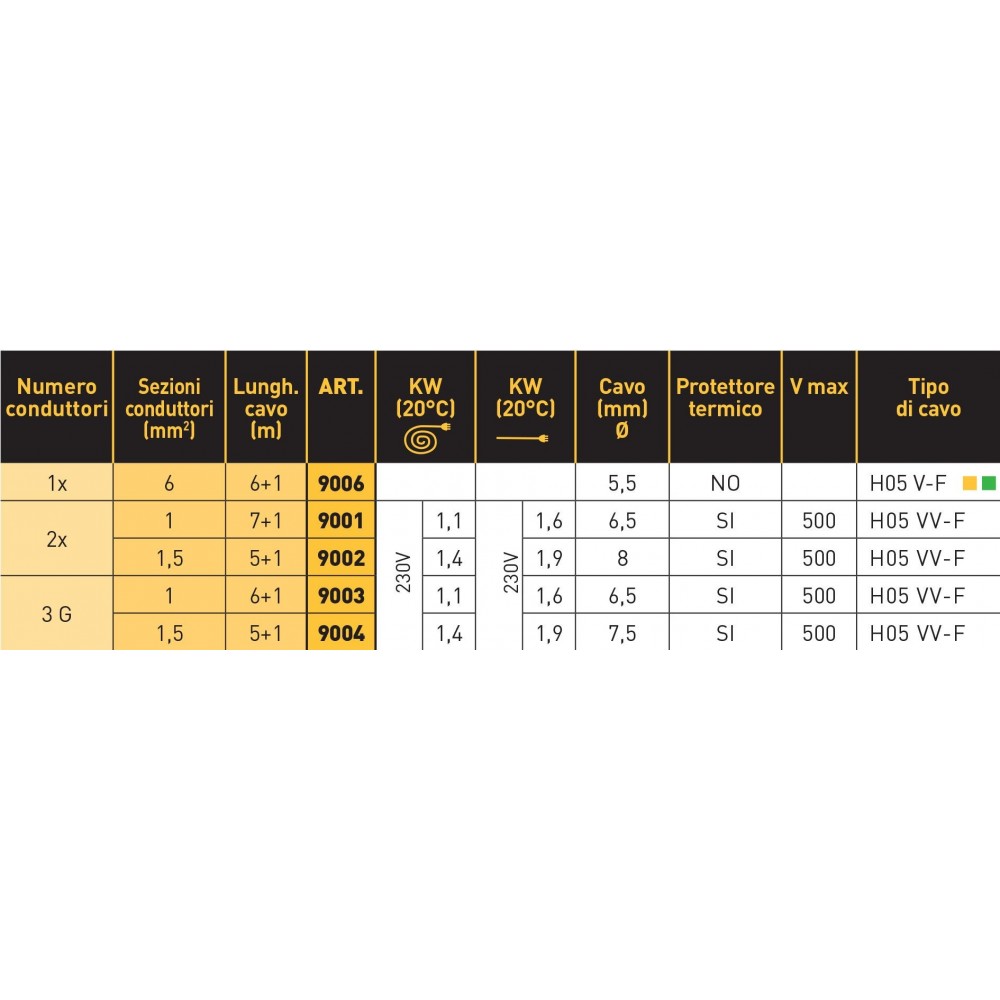

TECHNICAL CHARACTERISTICS

  • Number of conductors 3 G
  • Conductor section 1
  • Cable length (m) 6+1
  • KW Wrapped Cable 1.1 @230V
  • KW Unwound Cable 1.6 @230V
  • Maximum current (A) 1.1
  • Cable type H05VV-F
  • Cable diameter (mm) 6.5
  • Ambient operating temperature: -5°C/+50°C.
  • Thermal protector
  • V max 500
  • Degree of protection IP42.
  • Collector insulation voltage 2.5 KV.
  • CE marking
  • EN 61242
  • EN 60355-1
  • 2014/35/EU
  • 2006/42/EC
  • 2011/65/EU
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



9003
