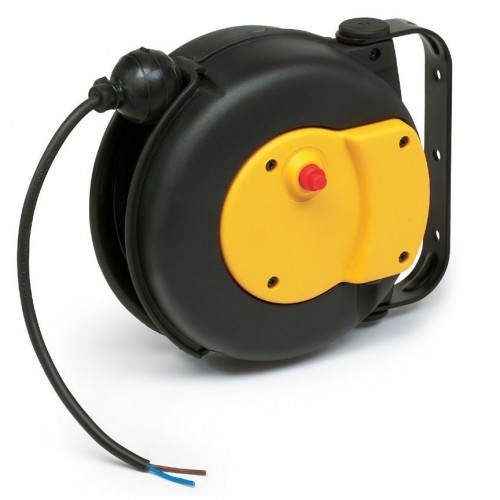

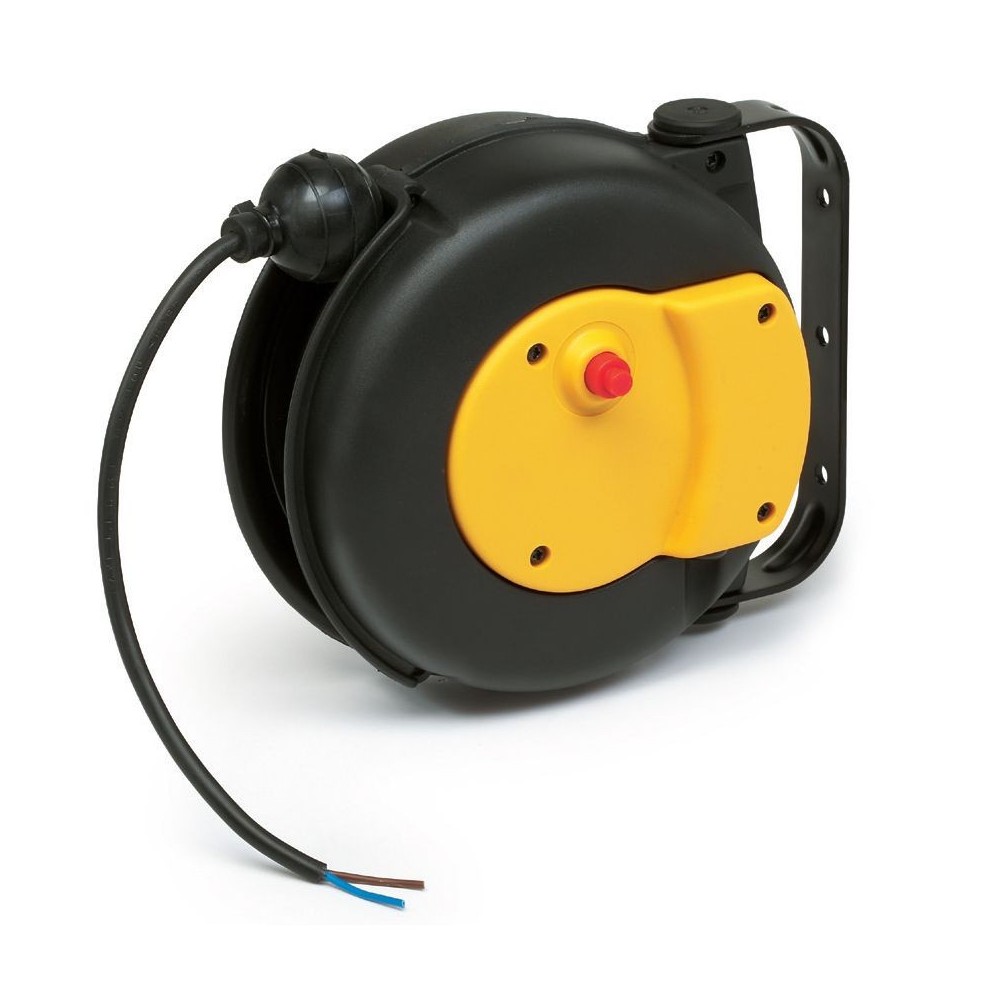

9002 9000 SERIES INDUSTRIAL CABLE REEL, 5+1 M, CABLE CROSS-SECTION 2 X 1.5 MM2 ZECA

INDUSTRIAL CABLE REEL 9002 SERIES 9000 Zeca

  • Number of conductors 2 X
  • Conductor section 1.5
  • Cable length (m) 5+1
  • KW Wrapped Cable 1.4 @230V
  • KW Unwound Cable 1.9 @230V
  • Maximum current (A) 1.4
  • Cable type H05VV-F
  • Cable diameter (mm) 8
Shipping cost: Free for
109,53 €
Tax included

89,78 € Tax excluded

Quantity
Available product, order it now.

INDUSTRIAL CABLE REEL 9002 SERIES 9000 Zeca

The 9000 series industrial cable reels are characterised by:
small size
sliding contacts with collector ring and brushes
double earth contact

These are instruments for professional use, intuitive to use and with maximum safety.
It complies with the IP 42 protection class, meaning it is protected against access with a wire and against falling drops of water at a maximum inclination of 15 degrees.

The external structure is made of shockproof plastic.

Thanks to the ratchet stop device, the cable can be adjusted every 50 cm. If you want to use the cable reel with the cable permanently taut, simply deactivate the ratchet.

NB the cable reel is supplied without the cable section on the power side.

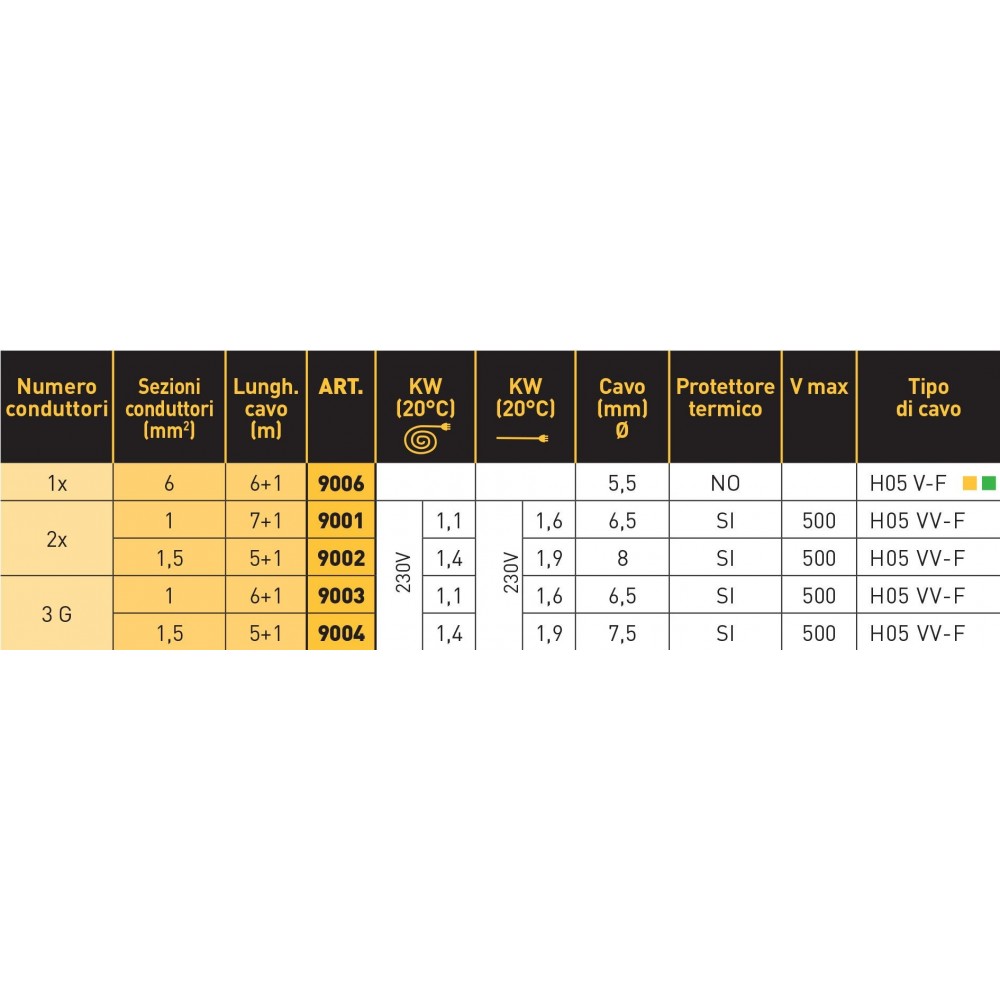

TECHNICAL CHARACTERISTICS

  • Number of conductors 2 X
  • Conductor section 1.5
  • Cable length (m) 5+1
  • KW Wrapped Cable 1.4 @230V
  • KW Unwound Cable 1.9 @230V
  • Maximum current (A) 1.4
  • Cable type H05VV-F
  • Cable diameter (mm) 8
  • Ambient operating temperature: -5°C/+50°C.
  • Thermal protector
  • V max 500
  • Degree of protection IP42.
  • Collector insulation voltage 2.5 KV.
  • CE marking

The 9002 model complies with the regulations

EN 61242
EN 60335-1
2014/35/EU
2006/42/EC
2011/65/EU
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
