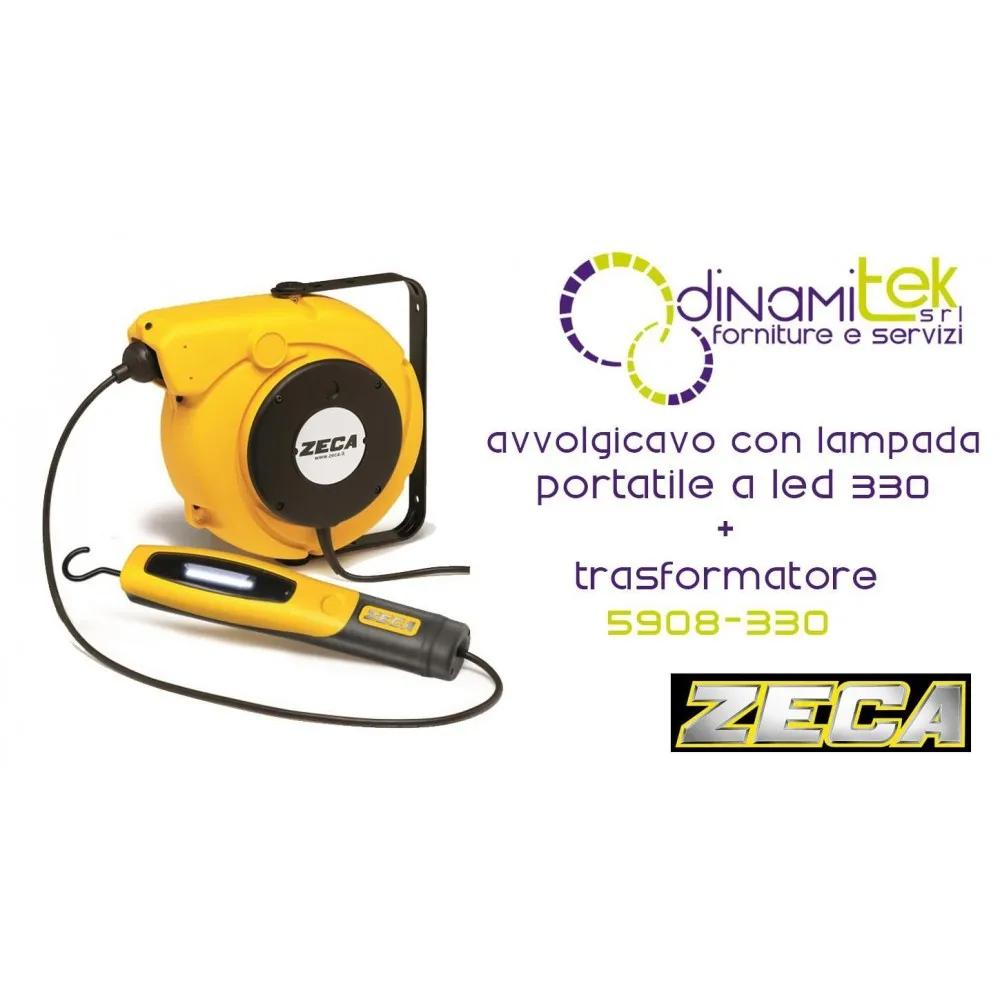

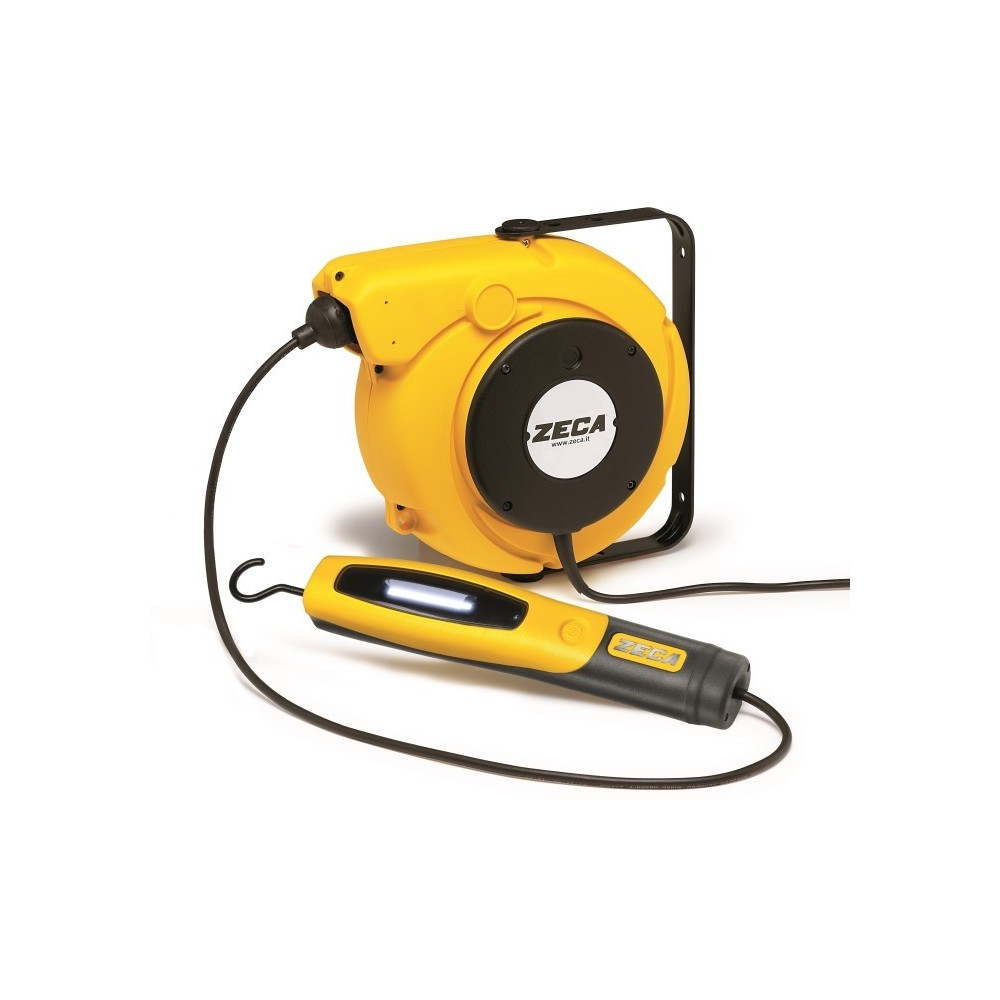

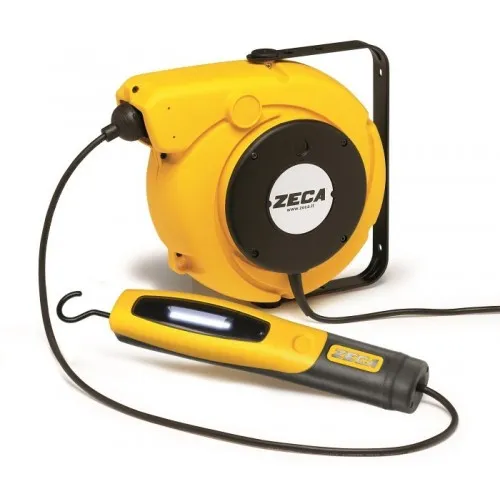

5908/330 CABLE REEL WITH PORTABLE LAMP LED 330 AND THE TRANSFORMER ZECA

CABLE DRUM WITH LED PORTABLE LAMP 330 AND TRANSFORMER model 5908/330ZECA

Cable drum with mounting bracket made of steel plate which allows the rotation and shell in solid plastic material to adapt to any field of application. The cable has the slide made easier by the sliding contacts with collector ring and brushes, you can stop the execution for every 50 cm of the cable with the device rack; and for the return of the cable you are facilitated from the mouth cable reels and spring-loaded high strength

Cable length: 15, 5 (14+1.5) m

The power supply cable: 1 m

Cable type: H05 RN-F-2x1mm2

Degree of protection cable reel: IP42 protected from solid bodies and to drops of water falling up to 15 degrees from the vertical

The led lamp 330 ZECA has the light source called COB Chip On Board high efficiency: power 3.5 W luminous Flux 360 lumens. It glows bright and clear without developing heat and while maintaining low power consumption. The emission angle of light is 120 degrees and color temperature of 6500 degrees Kelvin.

The lamp has the power button with the function of anti-bounce and the switch protected

IP64 protection degree, the lamp is protected from dust and splashing water from any direction

Supply voltage: 230V

With the transformer, the operator works on low voltage 24 volts, as required by the rules of safety on the job: power 63 VA – power supply 230 V – output 24 V
