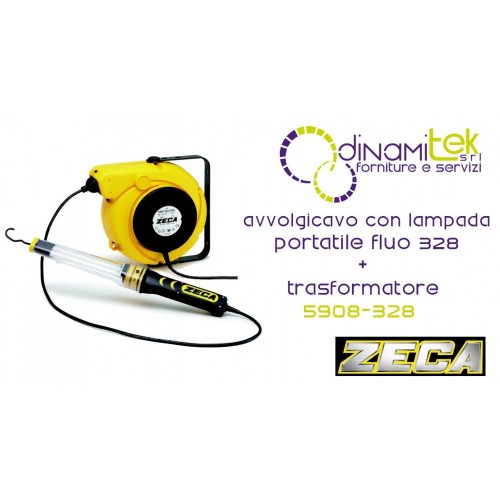

5908/328 CABLE REEL WITH PORTABLE LAMP FLUORESCENT 328, AND TRANSFORMER ZECA

CABLE DRUM WITH PORTABLE LAMP FLUORESCENT 328 AND TRANSFORMER model 5908/328ZECA

With the transformer you have to work at low voltage 24 volts for operator safety, as prescribed by the rules on work safety. Transformer: power 14 VA – power supply 230 V – output 24 V

The body of the cable drum in shock-proof plastic material; the cable drum rotates by means of a fixing bracket of sheet steel. The sliding of the cable is facilitated by sliding contacts with collector ring and brushes, for the return movement is supported by the mouth cable rollers and by the spring of recovery to a high resistance; during the course of the cable, you have a stopping device in the rack and then insert every 50 cm of cable.

Cable length: 14+1.5 m

Power cable: 1m

Cable type: H05 RN-F-2x1mm2

Degree of protection cable reel: IP42 protected from solid bodies over 1 mm diameter and falling of cogge of water

The lamp 328, coupled to the cable drum is a fluorescent lamp 11 watt that emits white light, has a high luminous efficiency, does not develop heat and consume little energy: this bulb lasts 8 times longer than a normal incandescent bulb

The handle is made of bi-component and inside it is allocated to the electronic circuit of the power supply. The switch is protected. The lamp comes with a swivel hook retractable

Bulb supplied: YES

Max Watt bulb: 11W

Attack bulb:2G7

Supply voltage: 230V

Degree of protection lamp: IP55 protected against dust and jets of water
