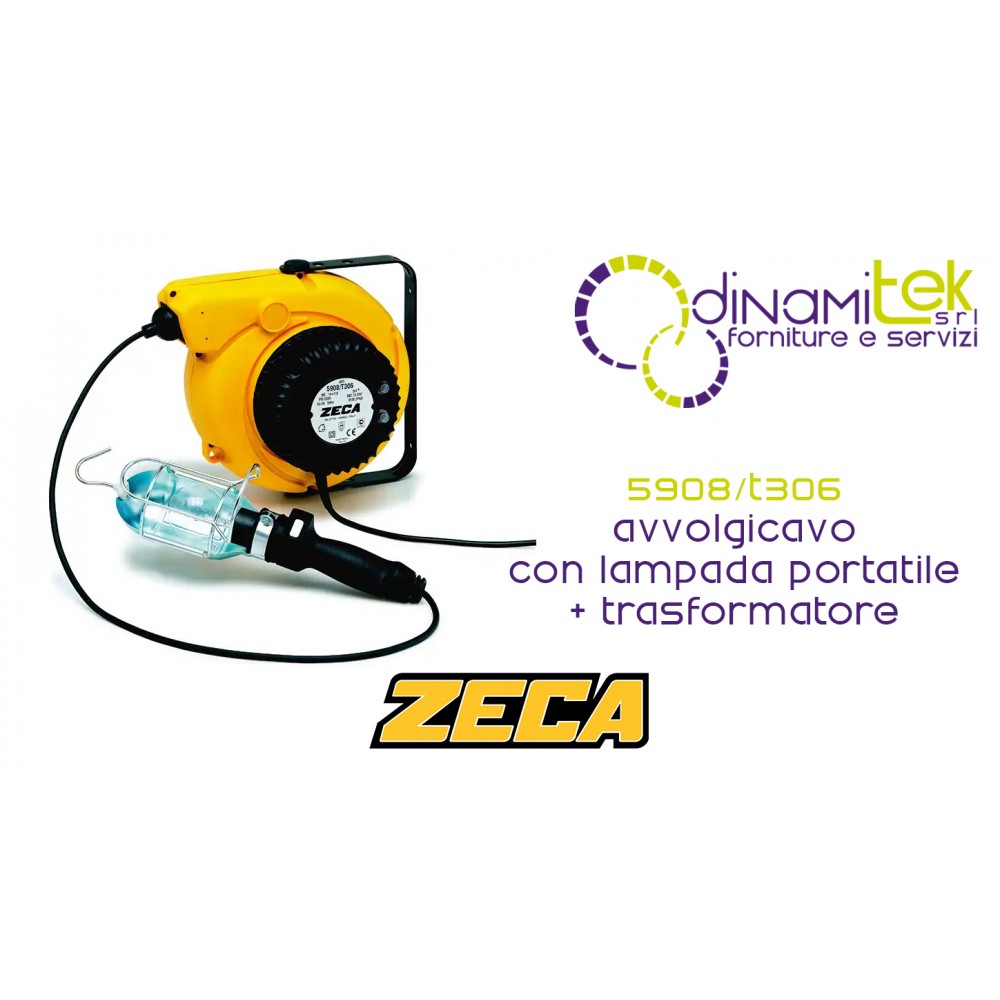

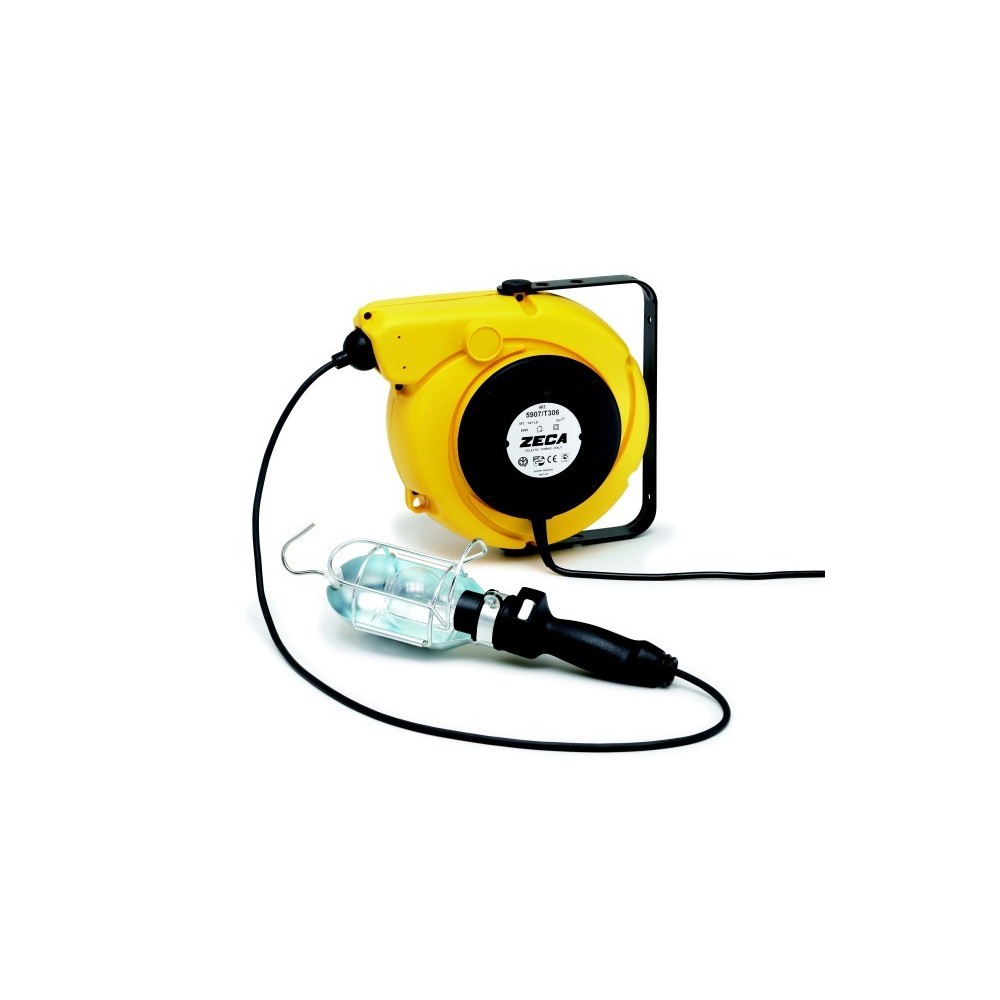

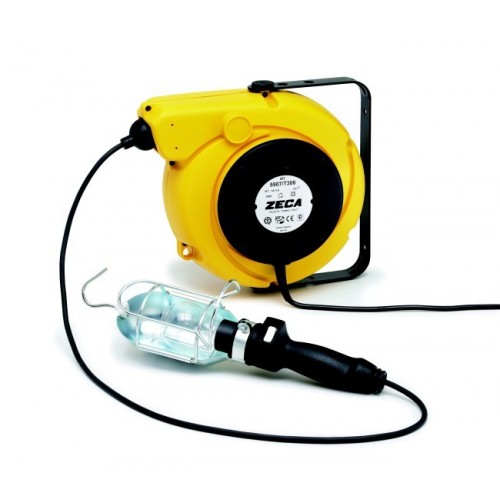

5908/T306 CABLE REEL WITH PORTABLE LAMP T306 AND TRANSFORMER ZECA
5908/T306 CABLE REEL WITH PORTABLE LAMP T306 AND TRANSFORMER ZECA Dinamitek 1

5908/T306 CABLE REEL WITH PORTABLE LAMP T306 AND TRANSFORMER ZECA

Cable REEL WITH PORTABLE LAMP AND TRANSFORMER ZECA maximum safety for the operator, the cable management system works on low voltage, as required by the rules of safety of work

Shipping cost: Gratis for
236,57 €
Tax included

193,91 € Tax excluded

Quantity
Last items in stock

CABLE DRUM WITH PORTABLE LAMP T306 AND TRANSFORMER model 5908/T306ZECA

Cable reel made of durable plastic material, with sliding contacts with collector ring and brushes the cable flows smoothly, both in the execution and in recovery. In assistance to the development you have the lock to the rack and pinion that can be inserted every 50 cm of cable. For the return of the cable you can access from the mouth cable reels and the recoil spring with a high resistance. The cable drum rotates by means of the fixing bracket of sheet steel.
Degree of protection cable reel: IP42-protected against solid and drops

Thanks to the transformer the cable drum operates at low voltage: the user works in maximum safety, as provided for in the rules. Feature transformer power: 63 VA – power supply 230 V – output 12/24 V

The lamp T306 has the ergonomic handle, the plastic oil-proof, acid-proof, antisolvente and has the reflector in sheet steel, galvanized. The switch is inserted in a recess. The bulb is protected by a cage made of steel wire zipper. The bulb is NOT supplied

Cable length: 14+1.5 m

Power cable: 1m

Cable type: H05 RN-F-2x1mm2

Watt Max bulb: 60W

Attack bulb: E27

Supply voltage: 230V

Degree of protection lamp: IP20 protected from solid bodies over 12 mm

Azienda italiana leader del settore delle automotive, offre ottime soluzioni per l'industria


5908/T306
