417 FILL RADIATORS DEPRESSION ZECA

FILL RADIATOR TO DEPRESSION model 417ZECA

In a minute, can you fill the radiator and the cooling system of trucks and motor vehicles without creating air bubbles due to the vacuum, which creates a vacuum with compressed air. The operation will be rapid and safe for the middle, in a minute, the radiator will be completely filled, you will not need to put in motion the most times, and you will never overheat the vehicle due to the radiator is not completely filled.

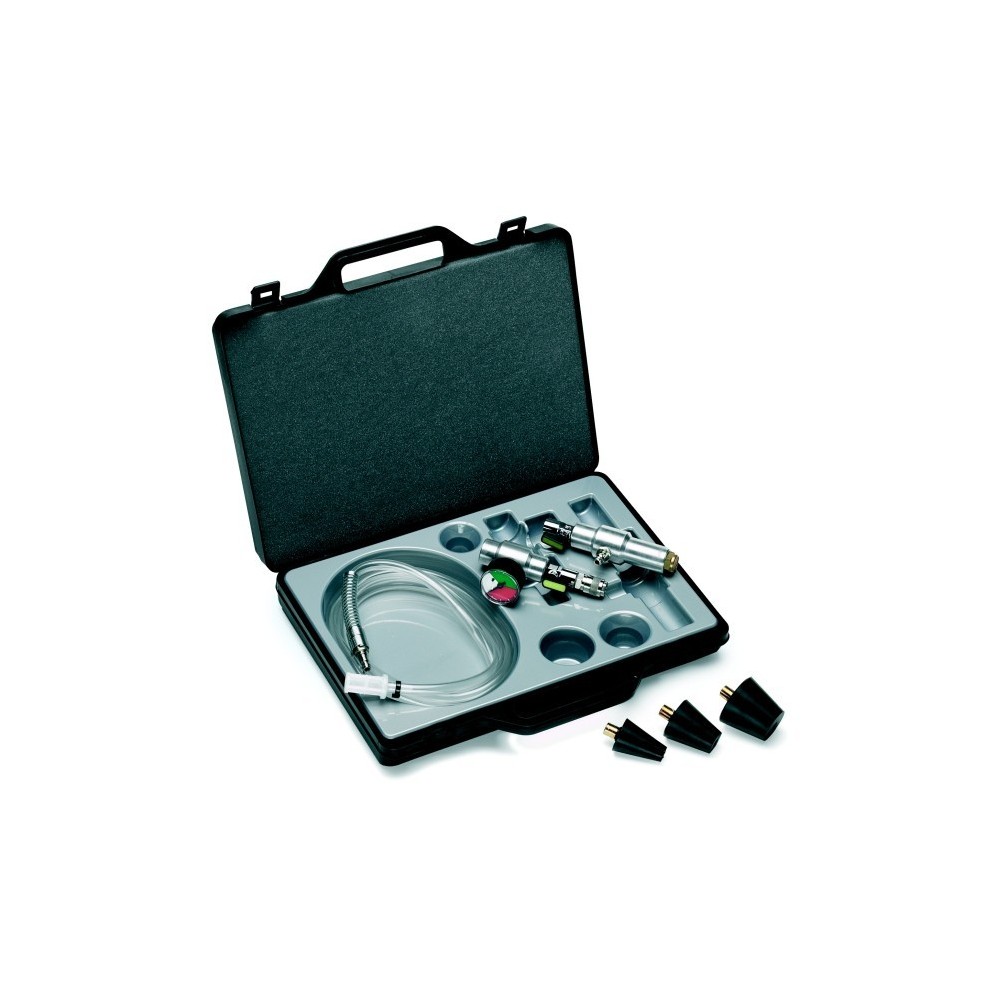

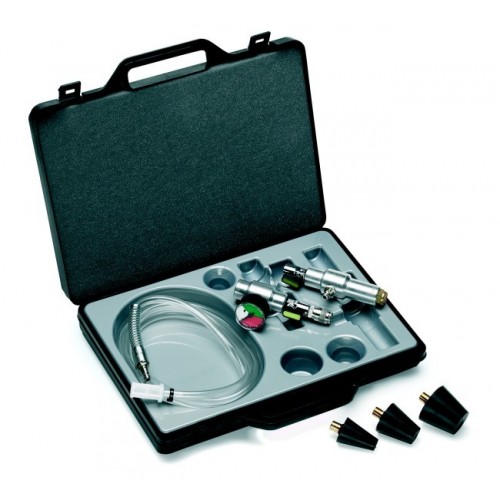

To adapt to the various radiators, the fill radiators comes with 3 cones. Read the operating instructions to follow

TECHNICAL DATA

Working pressure from 5,5 to 12,0 bar.

Max consumption of air-100 l/min at 6 bar.

Air connection 1/4"F.

Temperatures from -20° to +50°C.

Adapters: Ø 16 - 33 mm Ø 23 - 41 mm Ø 34 - 52 mm

Operation of the fill radiators 417 ZECA

1. The device works with the radiator empty, then the first thing to do is to empty it
2. To avoid bottlenecks open up
3. Connect the compressed air network to the generator ( 6 - 10bar )
4. Open the faucet and check for smooth operation: A suction B discharge
5. Attention to the discharge and prevent the obstructions in order not to damage the vehicle
6. Apply the rubber cone between the measuring unit and the radiator to fill
7. Connects the vacuum generator and open both the taps Controls on the vacuum gauge the value of the vacuum you have to get the needle stabilized on the green area
8. Close both valves and disconnect the vacuum generator. In fifteen seconds you will know if the system is airtight, you know, watching the needle, must remain immobile. Now you can proceed to the filling. The effect of depression you can crush the rubber sleeves.
9. Now you have to introduce the pipe end liquid cooling and the need to connect to the group of measurement
10. Now, open the faucet, in a few seconds, the cooler will be filled. The see from the vacuum gauge that shows “0”
