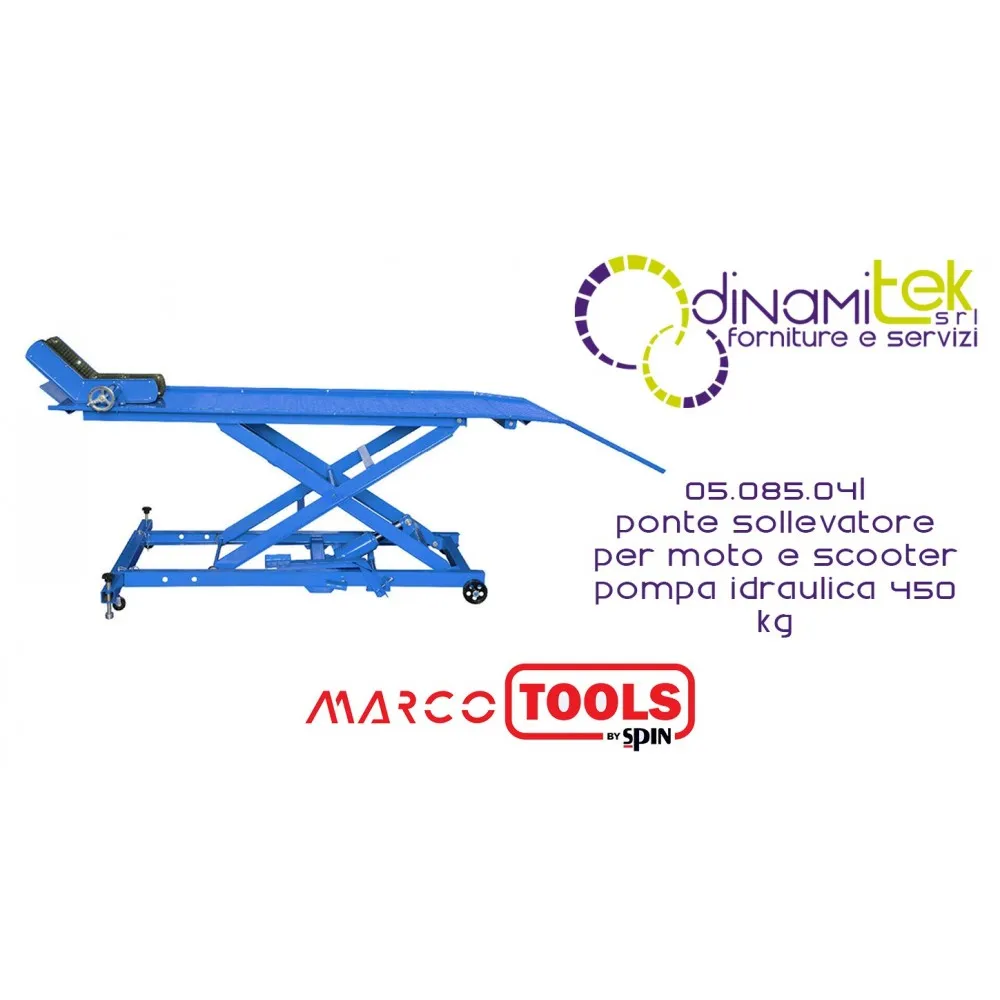

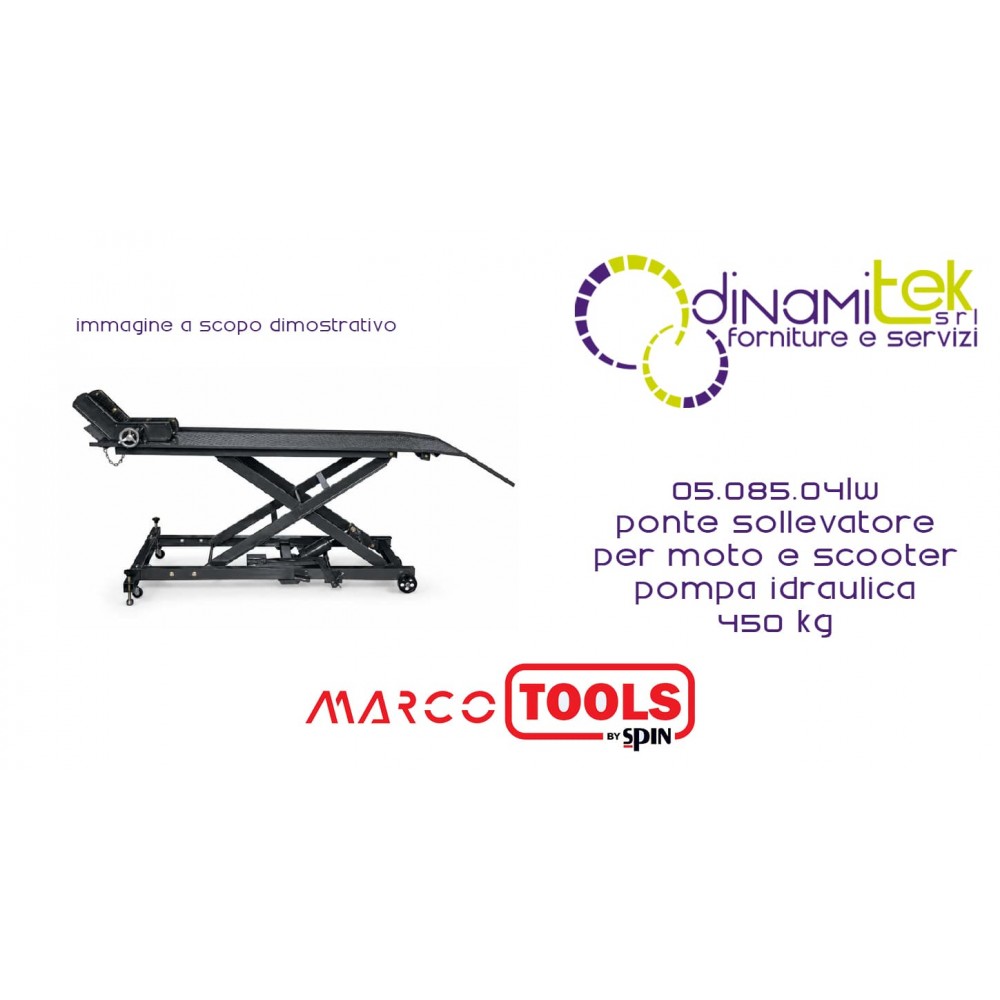

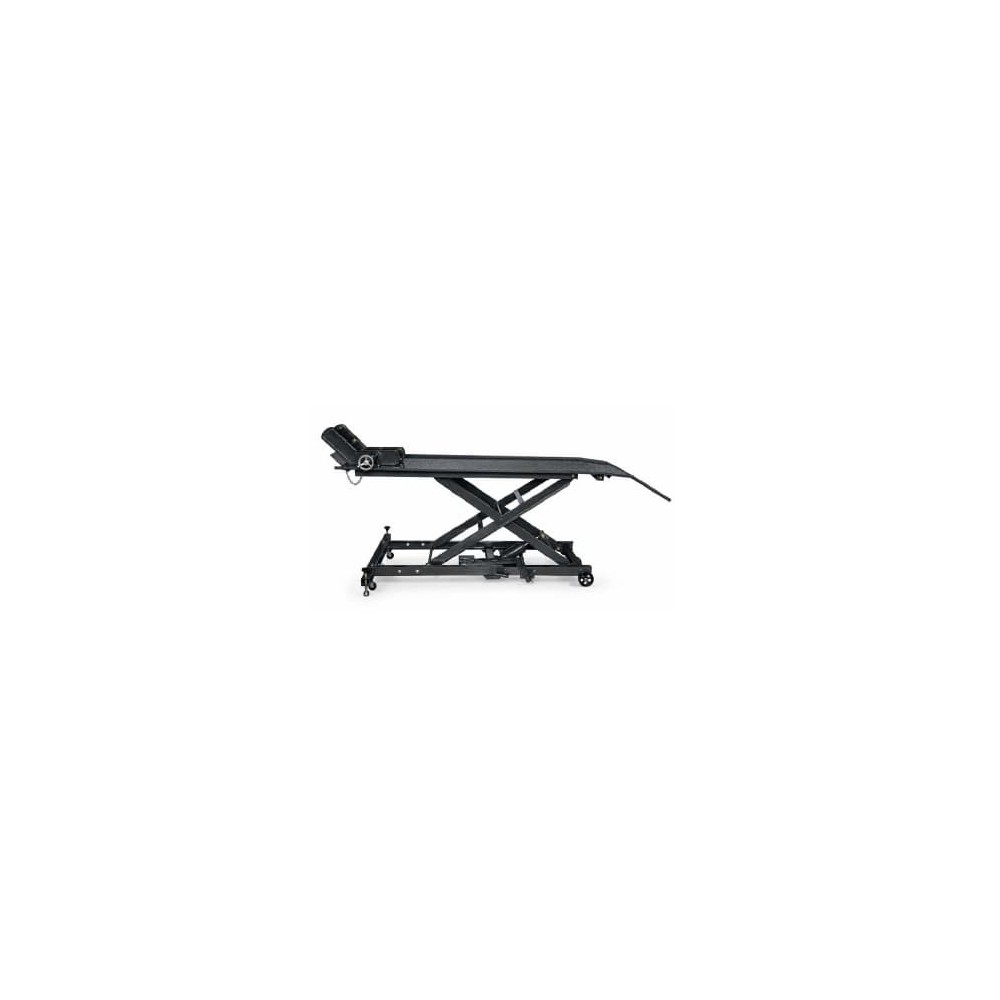

05.085.04LW MOTORCYCLE AND SCOOTER LIFT WITH HYDRAULIC PUMP, 450 KG MARCO TOOLS SPIN

Reliability and Robustness for Motorcycle Service

Model 05.085.04LW is part of the Marcotools by Spin professional line of motorcycle and ATV equipment. Its reinforced structure and generous work surface make it suitable for a wide range of motorcycles, ensuring absolute stability during lifting operations.

Technical Features and Functionality

• High Load Capacity: With a load capacity of 450 kg, it easily handles both scooters and large-displacement motorcycles.
• Foot-Operated Hydraulic Lift: The foot-operated hydraulic pump system allows the technician to lift the vehicle while keeping his hands free, making it easier to position the vehicle correctly on the lift.
• Optimised Lift Range: The bridge has a minimum height of just 185mm, ideal for accessing low-riding vehicles, and reaches a maximum height of 850mm for superior ergonomic comfort while working.
• Platform Dimensions: The platform measures 2200 x 650 mm, providing a spacious and safe support surface. The total length of the device, including the side ramp, is 2660 mm.
• Access Ramp Included: The 600 x 650 mm side ramp makes loading and unloading the motorcycle much easier.

Security and Logistics

Each unit is built to withstand intensive work cycles and comes in a sturdy wooden crate to protect its integrity during transport. The bridge's stability is ensured by a solid base that prevents wobble even at maximum height.

Technical Specifications

• Product Code: 05.085.04LW
• Brand: Spin (Marcotools Line)
• Status: Top Seller
• Maximum load: 450 kg
• Minimum height: 185 mm
• Maximum height: 850 mm
• Platform Dimensions: 2200 x 650 mm
• Overall dimensions (with ramp): 2660 x 650 mm
• Net Weight: 145.5 kg
• Gross Weight (with packaging): 167.8 kg
• Packaging dimensions: 2240 x 700 x 210 mm
