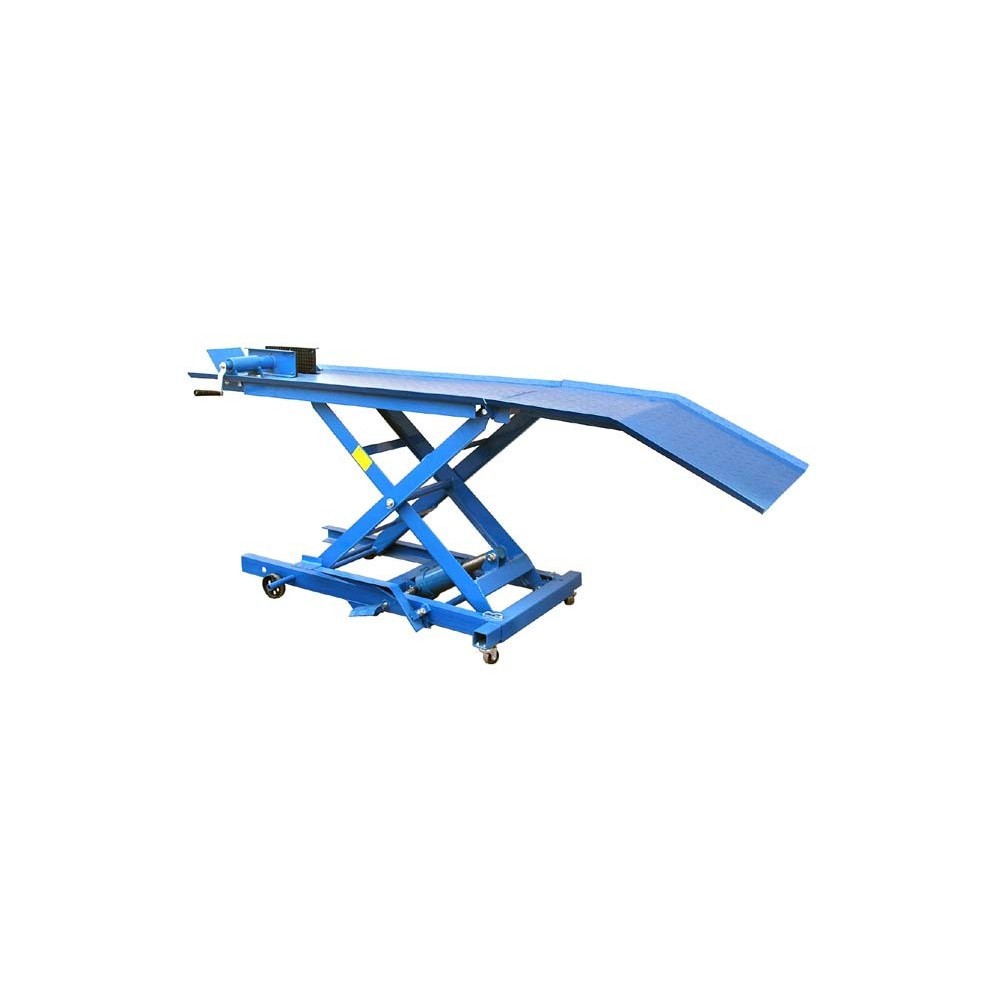

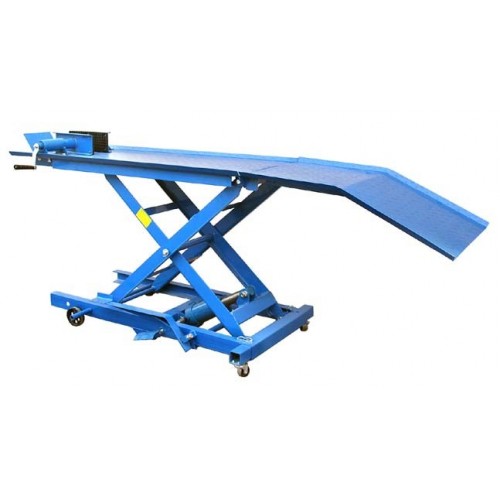

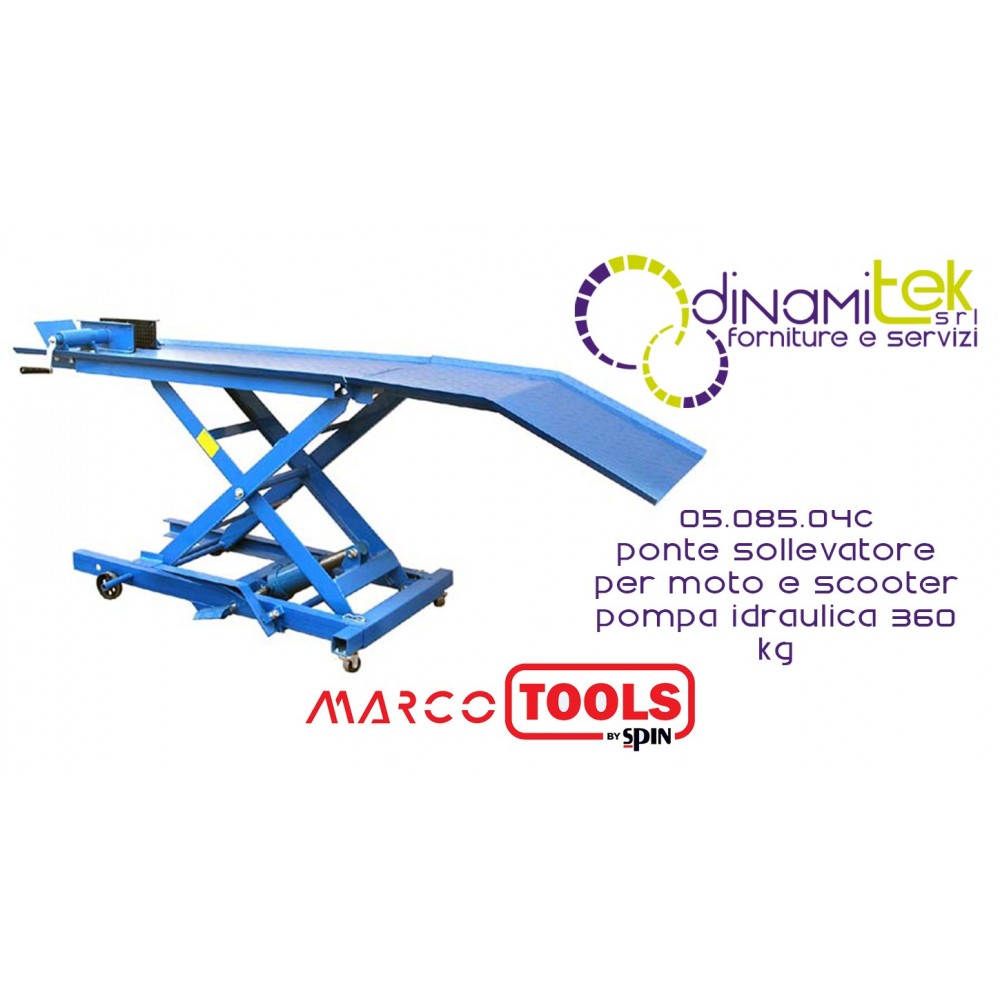

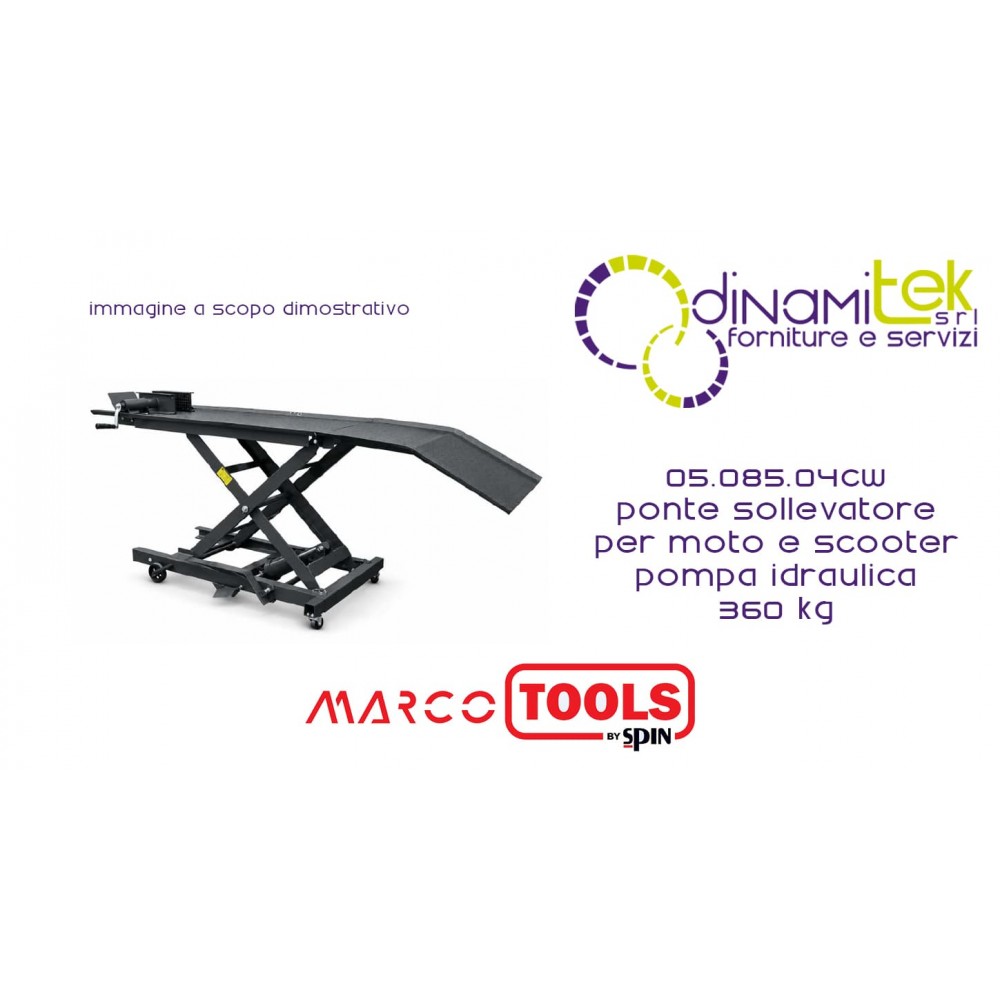

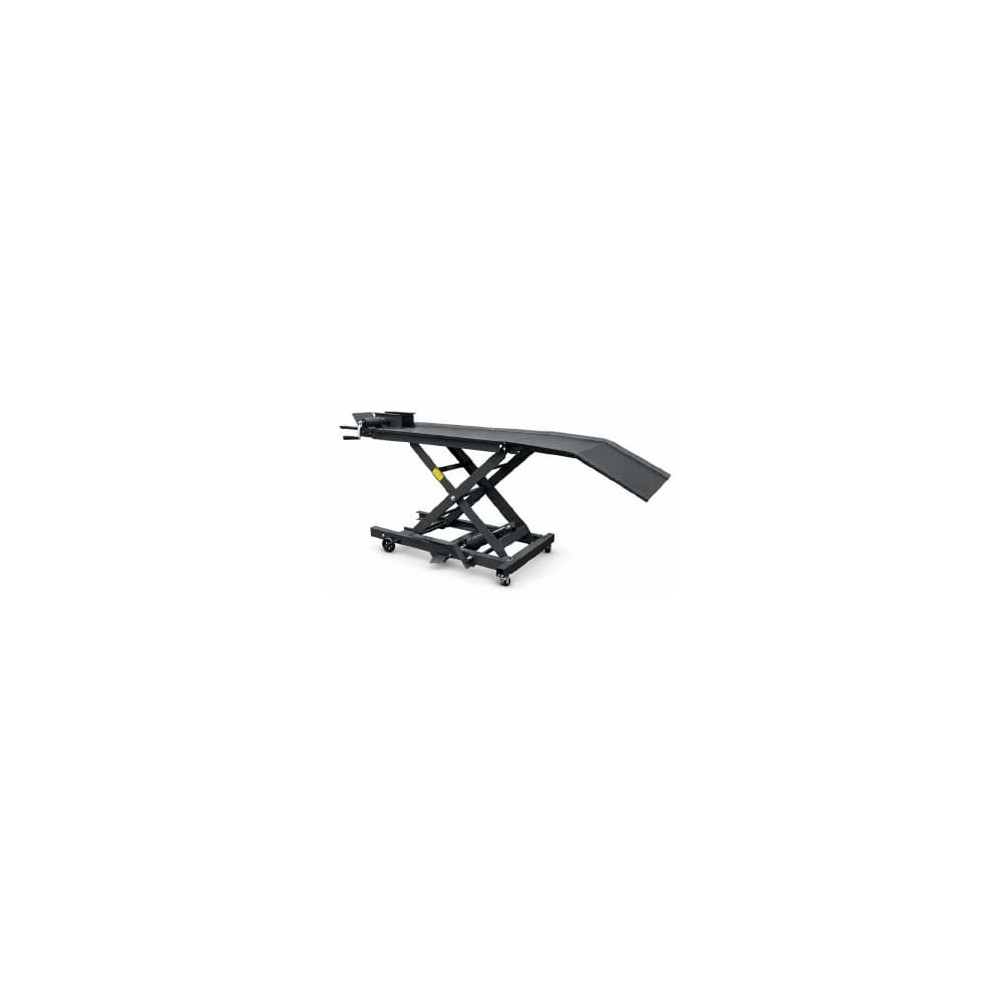

05.085.04CW MOTORCYCLE AND SCOOTER LIFT WITH HYDRAULIC PUMP, 360 KG MARCO TOOLS SPIN
Essential equipment for the motorcycle workshop and professional garage. The Spin lifting platform (Code 05.085.04CW) is a robust and functional device, designed to safely lift motorcycles and scooters up to 360 kg . Thanks to the hydraulic foot pump , the operator can precisely manage the height of the vehicle while keeping his hands free to stabilize the vehicle. Supplied with a practical access ramp , this lift allows you to work at an optimal ergonomic height, facilitating any mechanical or cleaning intervention.
Shipping cost: €25.00
for
Convenience and Safety in Motorcycle Service
The 05.085.04CW model is part of the Marcotools by Spin range dedicated to the two-wheel sector. It stands out for its simple construction combined with great reliability, making it the ideal tool for workshops that handle a high volume of scooters and medium-displacement motorcycles.
Technical and Functional Features
- Hydraulic Lifting System: Operated by a pedal, the hydraulic system ensures a smooth ascent and minimal physical effort for the operator.
- Adjustable Working Height: The lift starts from a minimum height of 200 mm to facilitate vehicle loading and reaches a maximum height of 850 mm, offering a comfortable working position.
- Spacious Platform: The work platform measures 1350 x 490 mm. The total length of the device, including the 850 mm side ramp, reaches 2200 mm.
- Access Ramp Included: The ramp is designed to allow the motorcycle to easily climb onto the bridge, reducing the risk of unbalancing during the positioning phase.
Structure and Logistics
The bridge is constructed of durable materials to ensure maximum load stability. To ensure the product arrives intact at its destination, it is shipped inside a sturdy wooden crate .
Technical Specifications
- Product Code: 05.085.04CW
- Brand: Spin (Marcotools Line)
- Load Capacity: 360 kg
- Minimum height: 200 mm
- Maximum height: 850 mm
- Platform Dimensions: 1350 x 490 mm
- Dimensions with Ramp: 2200 x 490 mm
- Net Weight: 107 kg
- Gross Weight: 120 kg
- Packaging dimensions: 1500 x 800 x 400 mm
