05.087.16 FOLDABLE AND TRANSPORTABLE LOADING RAMP 300 KG MARCO TOOLS SPIN

Lightness and Strength for Professional Handling

The Spin model, Cod. 05.087.16, is an essential tool for anyone requiring a portable and reliable loading solution. Made entirely of high-quality aluminum , this ramp combines high mechanical strength with low weight, making it easily moveable by a single operator.

Technical Features and Benefits

• High Load Capacity: Despite its portable nature, it is certified to support a maximum weight of 300 kg , ideal for the vast majority of motorcycles and workshop or gardening equipment.
• Collapsible Design: The hinged design allows the ramp to be folded in half when not in use, making it easy to store inside your vehicle or in small storage spaces.
• Optimized Dimensions: With a total length of 185 cm and a width of 38 cm , it offers a gradual slope and a stable support base for smooth wheel transit.
• Portability: With a net weight of just 18 kg , the ramp features excellent maneuverability, perfect for those carrying out external assistance interventions or participating in events and competitions.

Areas of Application

Included in the line of Equipment for Motorcycle Workshops and Logistics , it is the reference tool for:

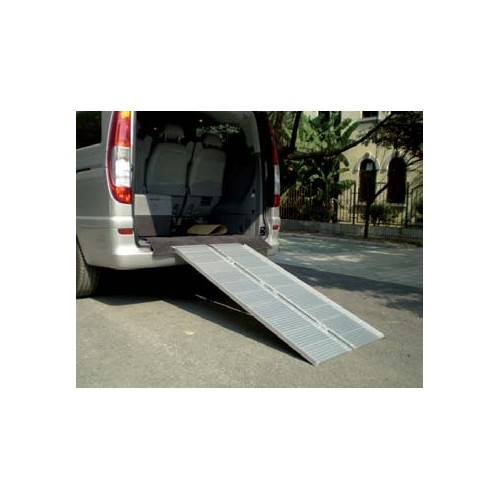

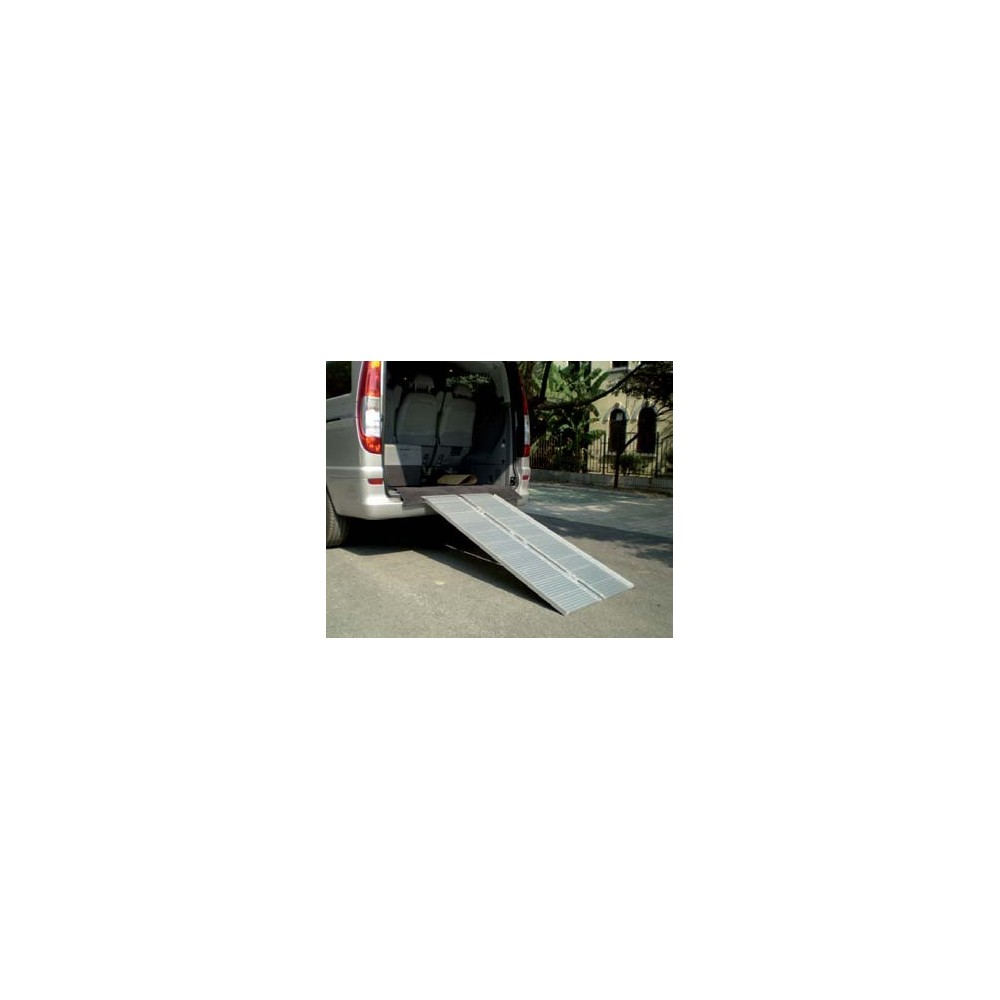

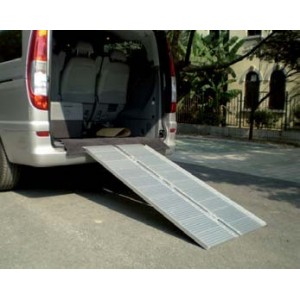

• Loading Motorcycles and Quads: Safely load your vehicle onto vans, pick-ups or trailers.
• Maintenance and External Assistance: Ideal for workshop vans that need to unload generators, tool trolleys or machinery at customer sites.
• Warehouse Logistics: Useful for overcoming small differences in height or steps with manual pallet trucks or hand trucks within their capacity limits.

Technical Specifications

• Product Code: 05.087.16
• Material: High strength aluminum
• Maximum capacity: 300 kg
• Open dimensions: 1850 x 380 x 80 mm
• Net/Gross Weight: 18 / 20.5 kg

Professional note: For a complete set-up of the motorcycle loading area, we recommend combining it with the motorcycle stand (Code 05.085.07 ) to stabilize the vehicle once positioned on the van floor.
