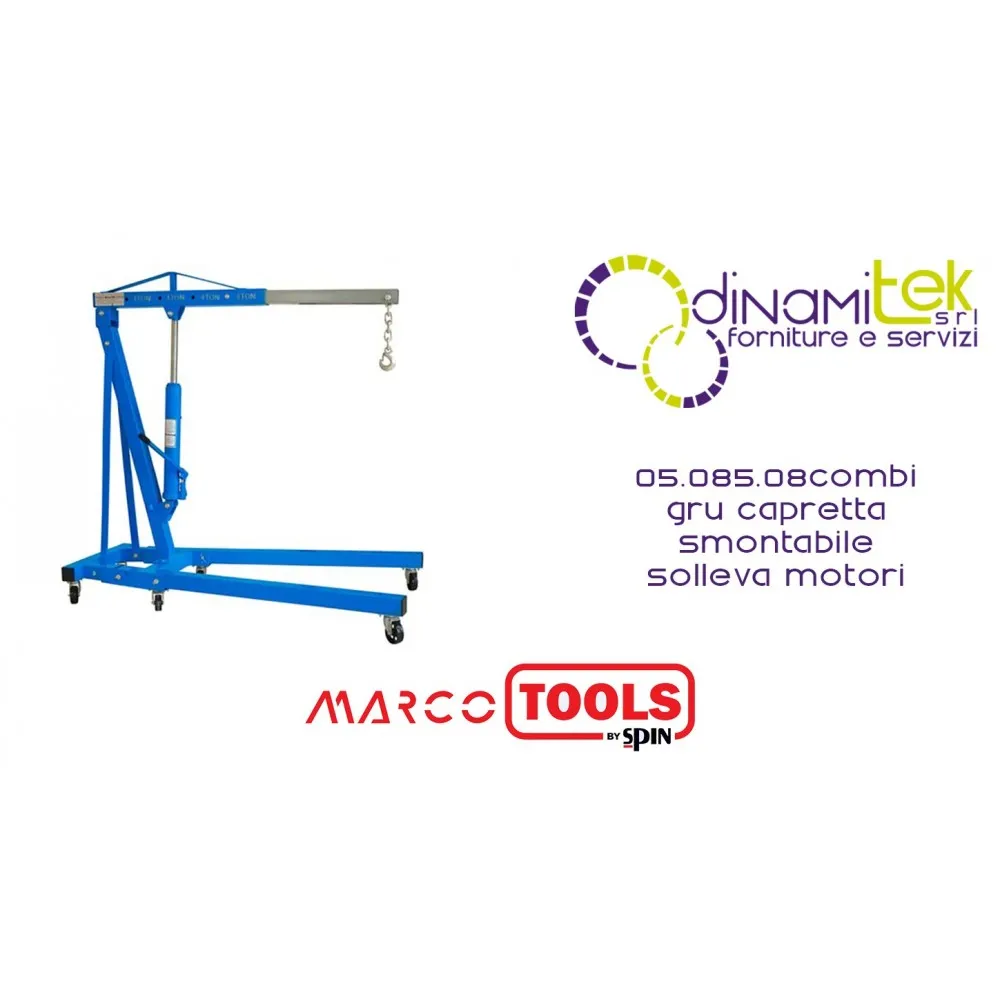

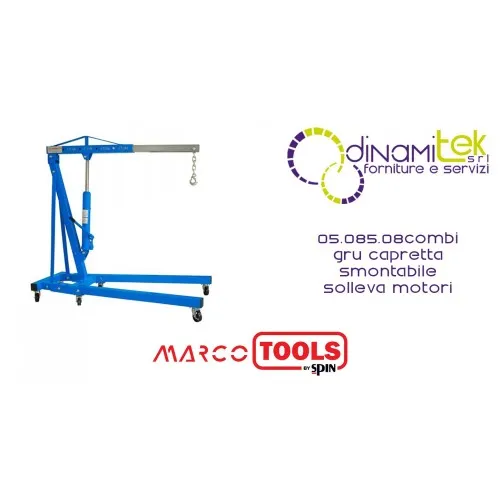

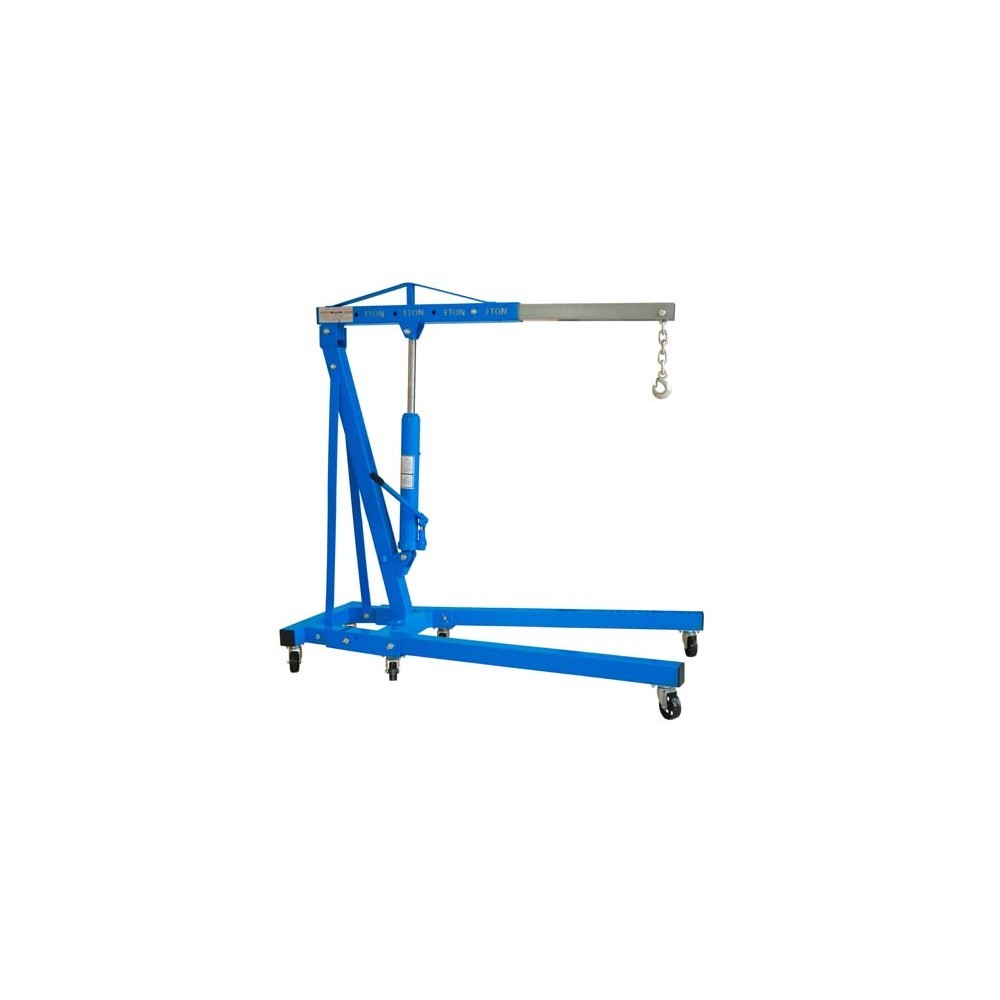

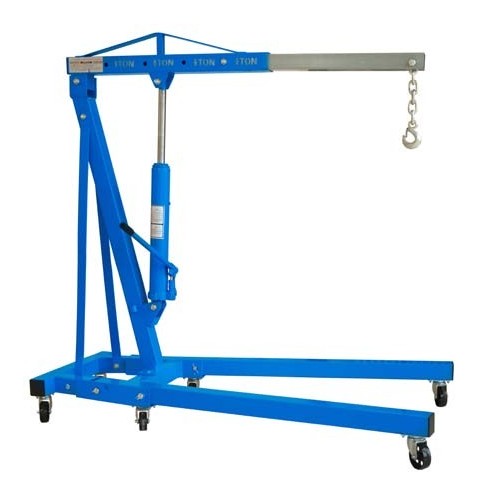

05.085.08 DEMOUNTABLE GOAT CRANE FOR LIFTING WORKSHOP ENGINES MARCO TOOLS SPIN

Professional Lifting for Mechanics and E-Mobility

The 05.085.08 model is part of the Marcotools by Spin professional line dedicated to lifting and anchoring. This crane was developed to combine maximum operational stability with the versatility required in modern service departments, where handling bulky components such as engines, transmissions, and batteries requires precision and safety.

Mechanical and Functional Characteristics

• Double-Acting Piston: Allows for faster and smoother lifting, ensuring millimetric control of the load both during the ascent and descent phases.
• Space-Saving Design: The structure is designed to be easily folded. When closed, the dimensions are reduced to 600x460x1460 mm, allowing storage even in small corners of the workshop.
• Under-Vehicle Accessibility: The front wheels are just 78 mm high. This low profile allows the crane to easily fit under low-riding vehicles or under the legs of lifting platforms.
• EV Specialization: Sources indicate this model as ideal for unloading lithium battery packs from electric cars, facilitating transfer from the platform to the workbench.

Stability and Security

Constructed from high-strength steel, the crane has a rated load capacity of 1,000 kg with the boom in the standard position. The rear swivel wheel configuration ensures excellent maneuverability even when fully loaded on flat surfaces.

Technical Specifications

• Product Code: 05.085.08
• Brand: Spin (Marcotools Line)
• Load Capacity: 1 Ton (1000 kg)
• Maximum Lifting Height: 2080 mm
• Front Wheel Height: 78 mm
• Overall Dimensions (Open): 1510 x 970 x 1460h mm
• Folded dimensions: 600 x 460 x 1460h mm
• Net Weight: 77.5 kg
