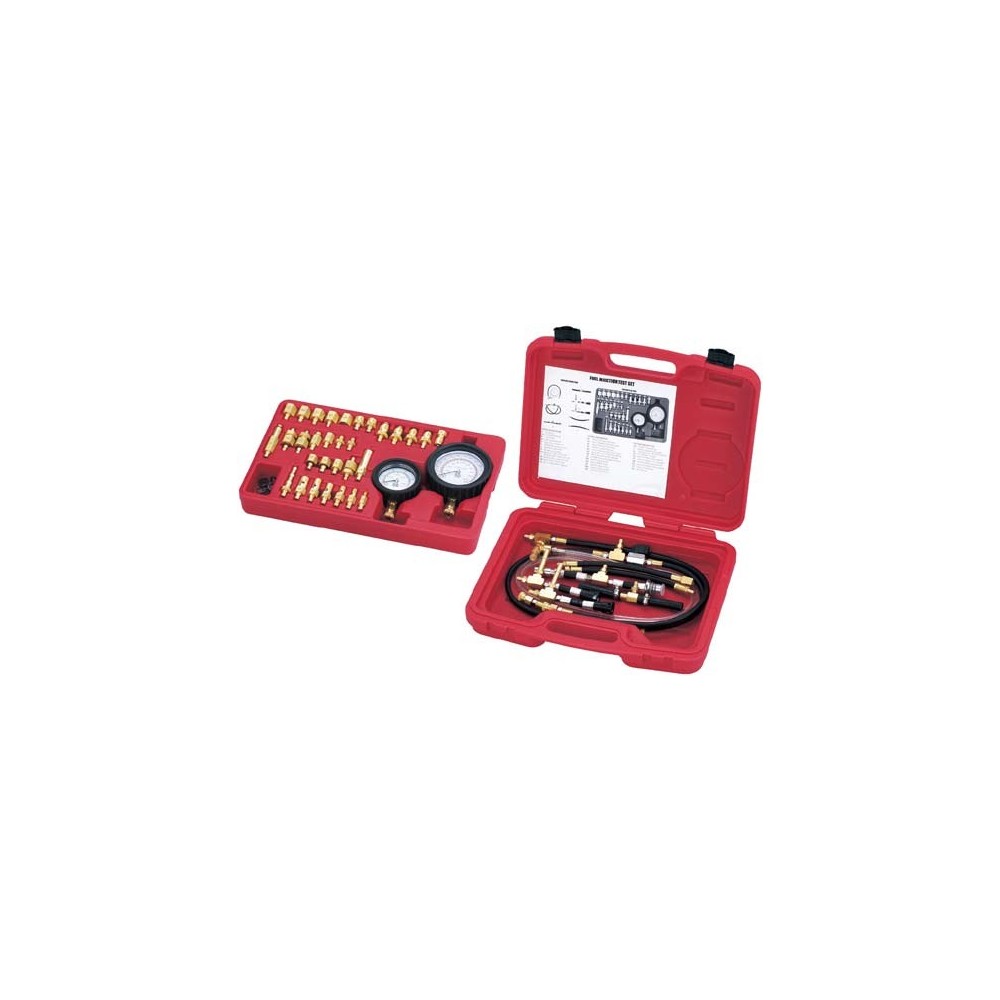

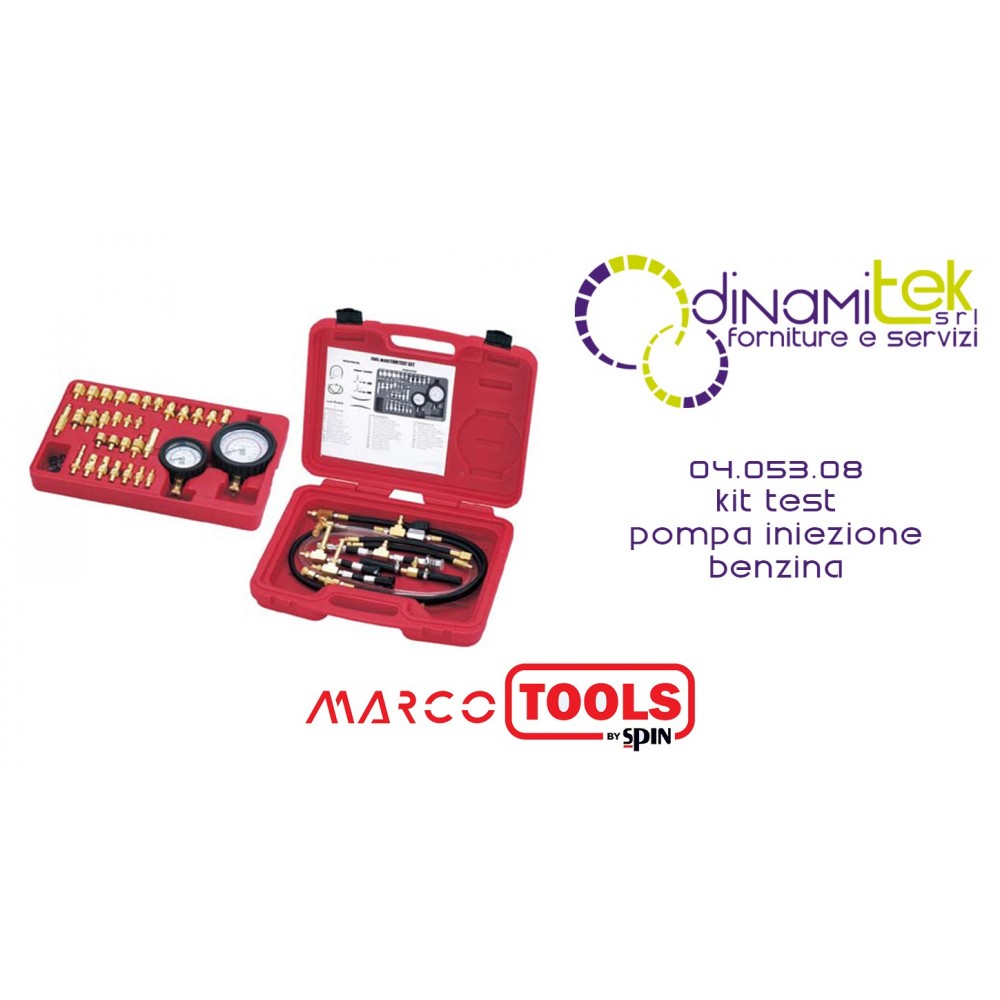

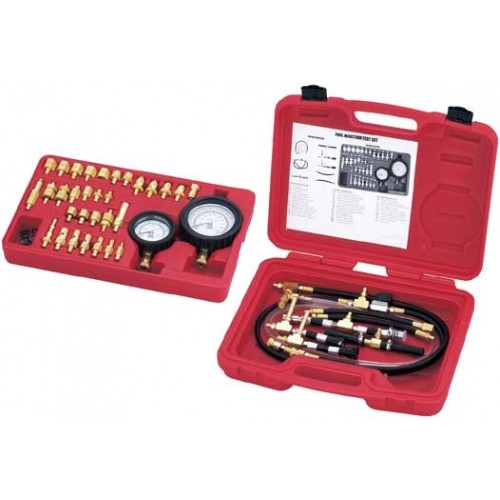

04.053.08 MARCO TOOLS GASOLINE INJECTION PUMP TEST KIT SPIN
Complete and accurate diagnostics for gasoline fuel circuits. The Spin professional kit (Code 04.053.08) is the essential tool for checking the efficiency of fuel pumps and pressure in injection systems. Equipped with two precision pressure gauges to cover both standard operating pressures and more sensitive readings, it comes with a wide range of adapters to ensure compatibility with most gasoline-powered vehicles on the market.
Shipping cost: €25.00
for
Professional Diagnostics for Petrol Injection Systems
The Spin kit, code 04.053.08, represents an advanced technical solution for mechanics who need to accurately monitor fuel pressure. Using this kit allows you to quickly identify pump malfunctions, filter blockages, or pressure regulator defects, ensuring an objective and professional diagnosis.
Advantages and Features of the System
- Dual Gauge Setup: The kit includes a large main gauge with a scale up to 10 bar (1000 Kpa / Psi) for standard testing and a second dedicated low pressure gauge (up to 1 bar / 100 Kpa) for extremely accurate readings.
- Quick Connection: It integrates a quick coupling system that allows you to connect and disconnect the tool in total safety, minimizing fuel spills.
- Maximum Versatility: The supply includes the most common adapters used to interface with all the main types of petrol injection systems.
- Protective Case: All components (over 30 pieces including fittings and pipes) are housed in a sturdy hard case for easy storage and transport to the workshop.
Areas of Application
This instrument is included in the line of professional diagnostic instruments for:
- Auto repair shops: Pressure and flow tests on naturally aspirated and supercharged petrol engines.
- On-Road Diagnostics: Thanks to its compactness and ease of assembly, it allows dynamic tests to verify pressure drops under load.
- Specialized Service Centers: Essential for tuning vehicles with starting problems or fuel-related performance drops.
Technical Specifications
- Product Code: 04.053.08
- Main Pressure Gauge Range: 0 - 1000 Kpa (0 - 10 bar)
- Low Pressure Gauge Range: 0 - 100 Kpa (0 - 1 bar)
- Units of Measurement: Kpa, Psi, Bar
- Connection System: Quick couplings with valves
Professional note: For those who work specifically on popular models such as Fiat Panda and Punto, the dedicated adapter with the code 04.053.09 is available separately.
