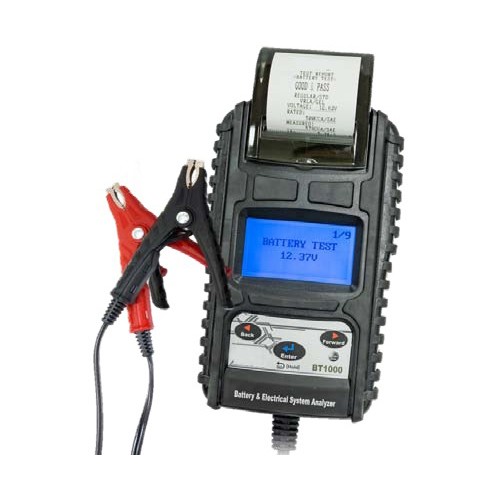

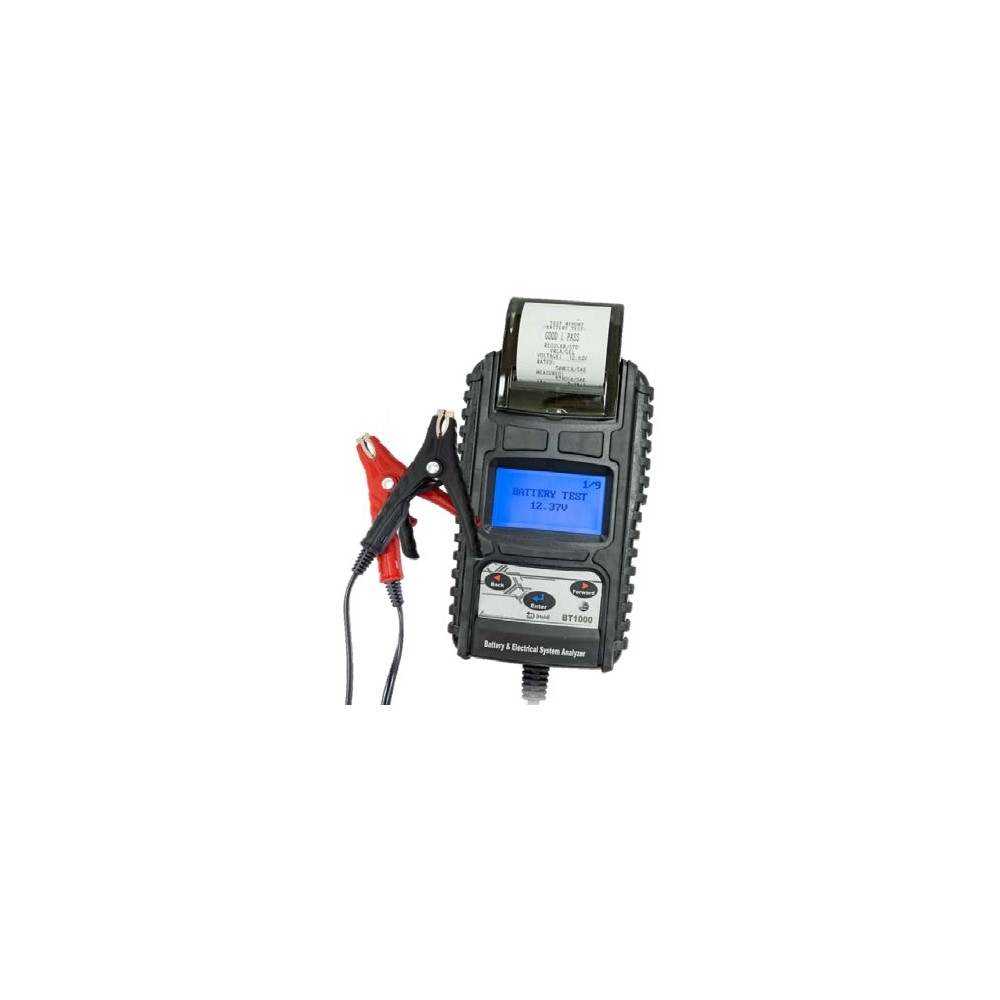

04.003.14 BT1000 BATTERY/ALTERNATOR TESTER WITH BARCODE PRINTER MARCO TOOLS SPIN

Advanced Diagnostics and Certified Warranty Management

The BT 1000 model represents the pinnacle of the Spin range for testing vehicle electrical systems. In addition to the usual analysis functions, this device introduces a barcode scanning system (Code 39), essential for uniquely associating the test result with the specific battery, drastically simplifying quality control procedures and warranty returns management.

Exclusive Features and Technical Advantages

• Integrated Traceability: The barcode reader allows you to record the component's identification data directly in the test report.
• Multi-Voltage Versatility: Designed to operate on 6V and 12V batteries (including Start/Stop systems) and to test 12V and 24V starting and charging systems.
• IR and State of Health Analysis: Provides detailed readings on Internal Resistance (IR), State of Health (SOH) and State of Charge (SOC).
• Standard Thermal Printer: Issues an instant paper report with 5 possible outcomes.
• Certified Reliability: Test leads are replaceable in case of wear or damage, ensuring a long operating life for the instrument.
• Multilingual Software: Intuitive menus available in 6 languages, including Italian.

Areas of Application

Given its completeness, the BT 1000 is the reference tool for:

• Large Fleets and Truck/Agricultural Sector: Ideal for heavy maintenance on industrial and agricultural vehicles.
• Battery Retailers and Logistics Centers: Essential for certifying product condition upon dispatch or return to the warehouse.
• Network Workshops and Dealerships: For transparent and digital management of vehicle acceptance.

Technical Specifications

• Model: BT 1000 (Cod. 04.003.14)
• Measuring Range: 40 ÷ 2000 CCA (SAE)
• Compatible batteries: Lead-acid (Standard, AGM Flat, AGM Spiral, VRLA/GEL), Start/Stop
• Supported standards: SAE (CCA), EN, IEC, DIN, JIS
• Dimensions: 251 x 130 x 45 mm
• Standard equipment: Shockproof protective case, thermal paper roll, 6 1.5V batteries

Professional Note: The integrated Test Counter allows the workshop manager to monitor diagnostic activity, raising the company's quality control standards.
