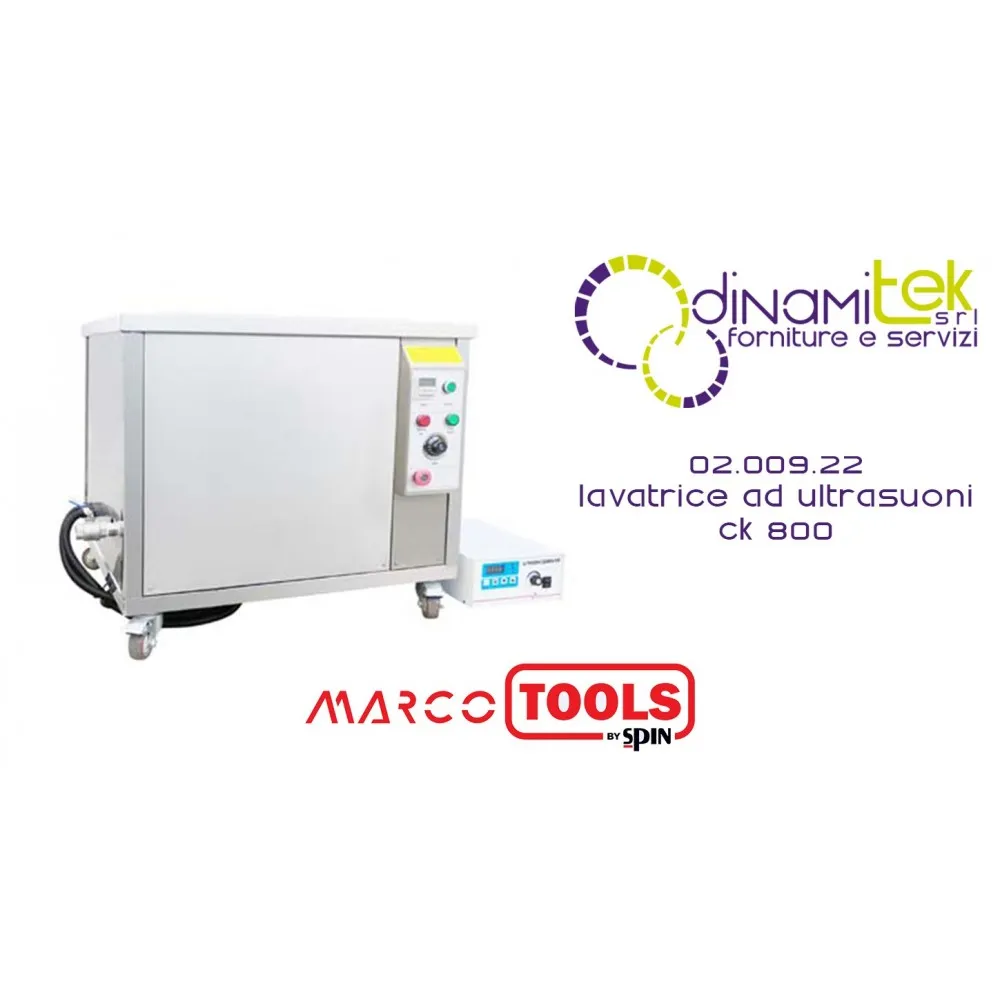

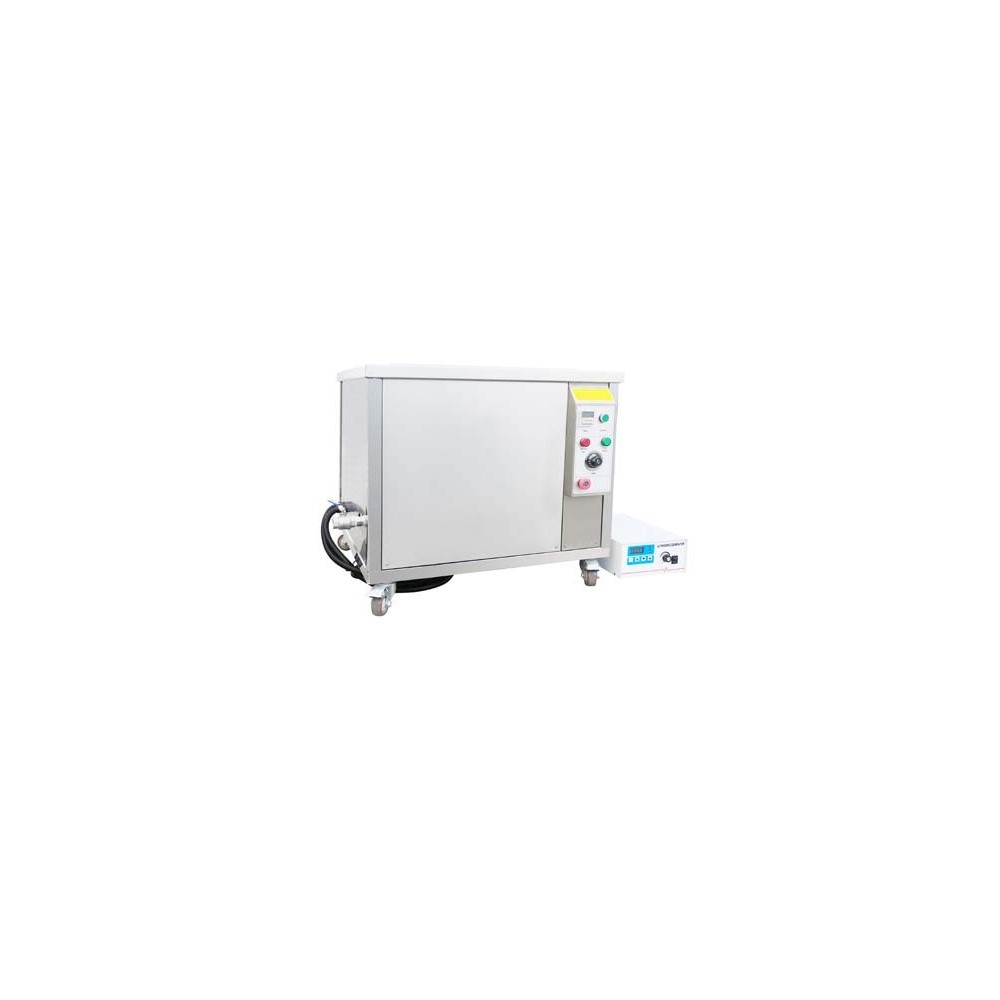

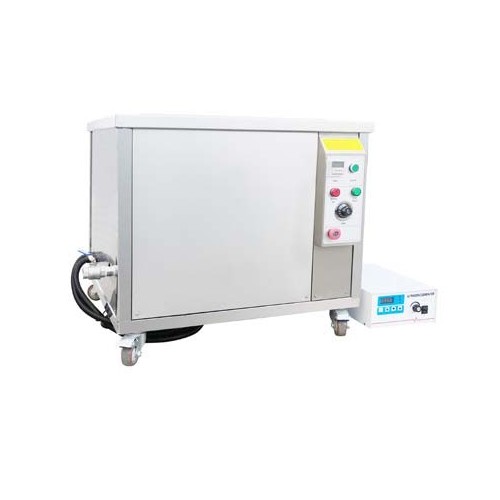

02.009.22 CK 800 MARCO TOOLS ULTRASONIC WASHING MACHINE SPIN
Maximum capacity and extreme performance for industrial cleaning. The Spin CK 3600 ultrasonic cleaner (Code 02.009.22) represents the top of the "CK-EXPORT INDUSTRIAL" line, offering a capacity of 360 litres . Designed for the most demanding workshops and mechanical industries, this three-phase unit can treat large parts with a heating power of 9 kW , ensuring the impeccable removal of heavy dirt, grease and encrustations.
Shipping cost: €100.00
for
Ultrasound Excellence for Large Volumes
The Spin CK 3600 (T-80S) model is the flagship device of the Spin industrial series. It has been specifically designed for professionals working on heavy-duty engines, large transmission systems, and massive industrial components that require deep sanitization using 28 KHz ultrasonic cavitation.
Benefits and Exclusive Features
- Extraordinary Load Volume: With a capacity of 360 litres and a 1 metre long work surface, it allows the simultaneous washing of multiple heads or bulky components.
- Superior Thermal Power: The integrated 9 kW resistance ensures rapid heating times, optimising work cycles even in continuous production contexts.
- Industrial Power Supply: Designed for three-phase systems (400V), ensuring stability and maximum energy efficiency during washing operations.
- Heavy Duty Construction: Made entirely of stainless steel with matching lid, drain tap and sturdy basket included to resist wear and corrosion.
Fields of Use and Applications
Given its size, the CK 3600 tub is suitable for:
- Automotive and Truck Sector: Cleaning of large engine heads, cylinder blocks, alloy wheels and transmissions for heavy vehicles.
- Grinding and Service Centers: Technical preparation of components before precision machining.
- Railway and Naval Maintenance: Cleaning of mechanical components subject to severe thermal stress and carbon buildup.
- Mechanical Industry: Large-scale degreasing and removal of machining residues.
Technical Specifications
- Model: CK 3600 (T-80S)
- Tank capacity: 360 litres
- Internal tank dimensions: 1000 x 600 x 600 mm
- External dimensions: 1120 x 720 x 930 mm
- Heating Power: 9 kW
- Ultrasonic Frequency: 28 KHz
- Power supply: 400 V - 50Hz (3 phases)
- Net weight: 260 kg
Professional note: For certified cleaning, use only water-based detergents, keeping the fluid temperature at ≥70°C.
