02.009.19 CK 3600 MARCO TOOLS ULTRASONIC WASHING MACHINE SPIN

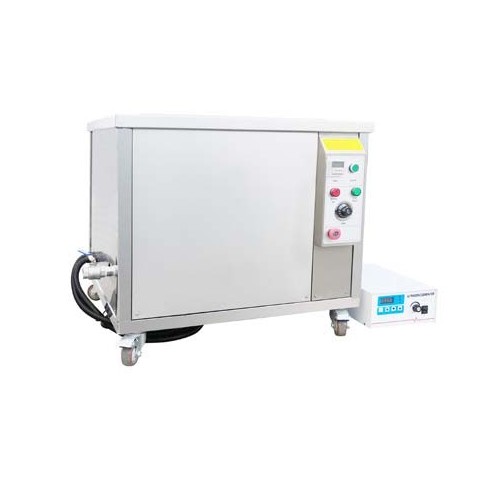

The pinnacle of industrial power for professional ultrasonic cleaning. The Spin CK 3600 tank (Code 02.009.19) represents the definitive solution for cleaning large mechanical components. With a capacity of 360 litres and an entirely stainless steel structure, this three-phase unit can treat massive pieces, ensuring the complete removal of heavy dirt thanks to a powerful 3.6 kW of ultrasonic power.
Shipping cost: €150.00
for
Ultrasonic Efficiency for Large Mechanical Volumes
The Spin CK 3600 (T-72S) model is the top of the range in the "CK-EXPORT INDUSTRIAL" series, designed specifically for the most demanding workshops, grinding centers, and mechanical industries. Thanks to its 28 KHz frequency, the system generates an extremely powerful cavitation action, capable of detaching grease, carbon residue, and oxidation even from the most inaccessible internal passages of engine heads and transmission assemblies.
Benefits and Exclusive Features
- Extraordinary Load Volume: With a capacity of 360 litres and an internal length of 1 metre, it allows the simultaneous washing of multiple components or particularly bulky pieces.
- High Ultrasonic Power: Equipped with 3.6 kW transducers for deep, constant and uniform cleaning action on the entire load.
- Ultra-Fast Heating: The integrated 9 kW resistance allows the ideal operating temperature (≥70°C) to be reached quickly, optimising industrial work cycles.
- Heavy Duty Construction: Cabinet, matching lid and sturdy wash basket are constructed of stainless steel to resist corrosion and wear in heavy-duty environments.
- Practical Management: Includes a drain tap as standard to facilitate emptying and maintenance of the cleaning liquid.
Fields of Use and Applications
This industrial unit is the reference standard for:
- Automotive and Truck Sector: Technical cleaning of heavy engine heads, cylinder blocks, alloy wheels and gearboxes.
- Grinding Centers: Deep cleaning of components before and after precision mechanical machining.
- Industrial Maintenance: Degreasing of complex mechanical parts subject to stubborn dirt and burnt oils.
Technical Specifications
- Model: CK 3600 (T-72S)
- Product Code: 02.009.19
- Tank capacity: 360 litres
- Internal tank dimensions: 1000 x 600 x 600 mm
- External dimensions: 1150 x 720 x 950 mm
- Ultrasonic Power: 3.6 kW
- Heating Power: 9 kW
- Frequency: 28 KHz
- Power supply: 400 V - 50Hz (Three-phase)
- Net weight: 260 kg
Professional note: To maximize system performance, it is mandatory to use only water-based detergents, maintaining the solution at a temperature of at least 70°C during the wash cycle.
